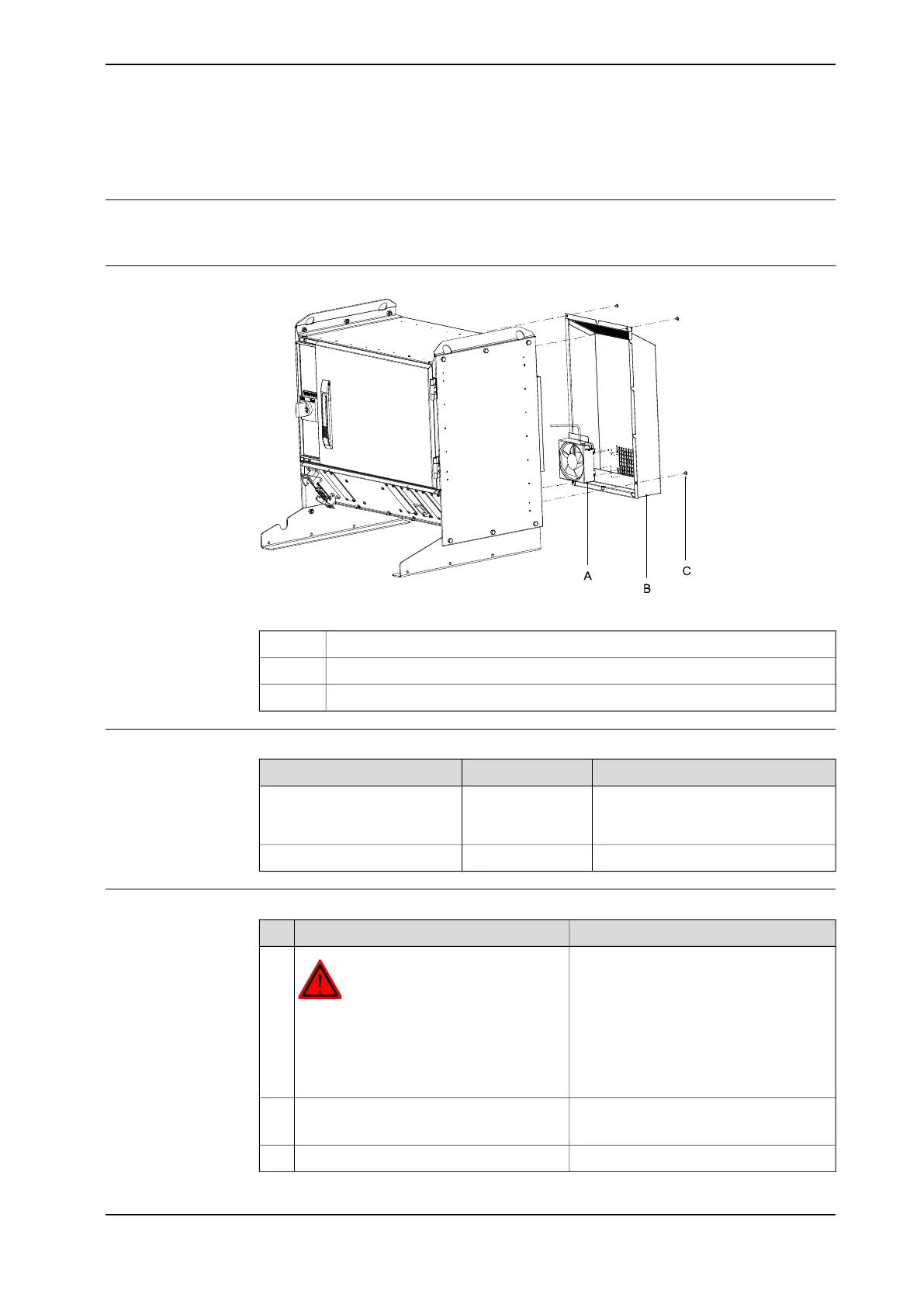

3.4.3 Cleaning the Fan unit
Overview
Use this section to clean the fan unit.
Location
en0500001924
Fan holder with fanA
Fan casingB
Attachment screws M5x9, Fastite screw (4 pcs)C
Required equipment
NoteArticle numberEquipment
The contents are defined in section
Toolkits, DressPack/SpotPack on
page 233.
3HAC17290-7Standard toolkit
DressPack/SpotPack
-Vacuum cleaner
Maintenance procedure
NoteAction
DANGER
Before any work inside the cabinet, please
observe the safety information in the sec-
tion DANGER - Make sure that the main
power has been switched off in the product
manual for the IRC5 controller.
1
Shown in the section Location on page 151Remove the attachment screws holding the
fan casing.
2
Screw M5x9 Fastite (4 pcs)
Disconnect the fan connector.3
Continues on next page
Product manual - DressPack/SpotPack IRB 8700 151
3HAC055802-001 Revision: B
© Copyright 2015-2017 ABB. All rights reserved.
3 Maintenance
3.4.3 Cleaning the Fan unit
