2.4.3.2 Fitting the cable package IRBDP MH3 UI
Location of the cable package

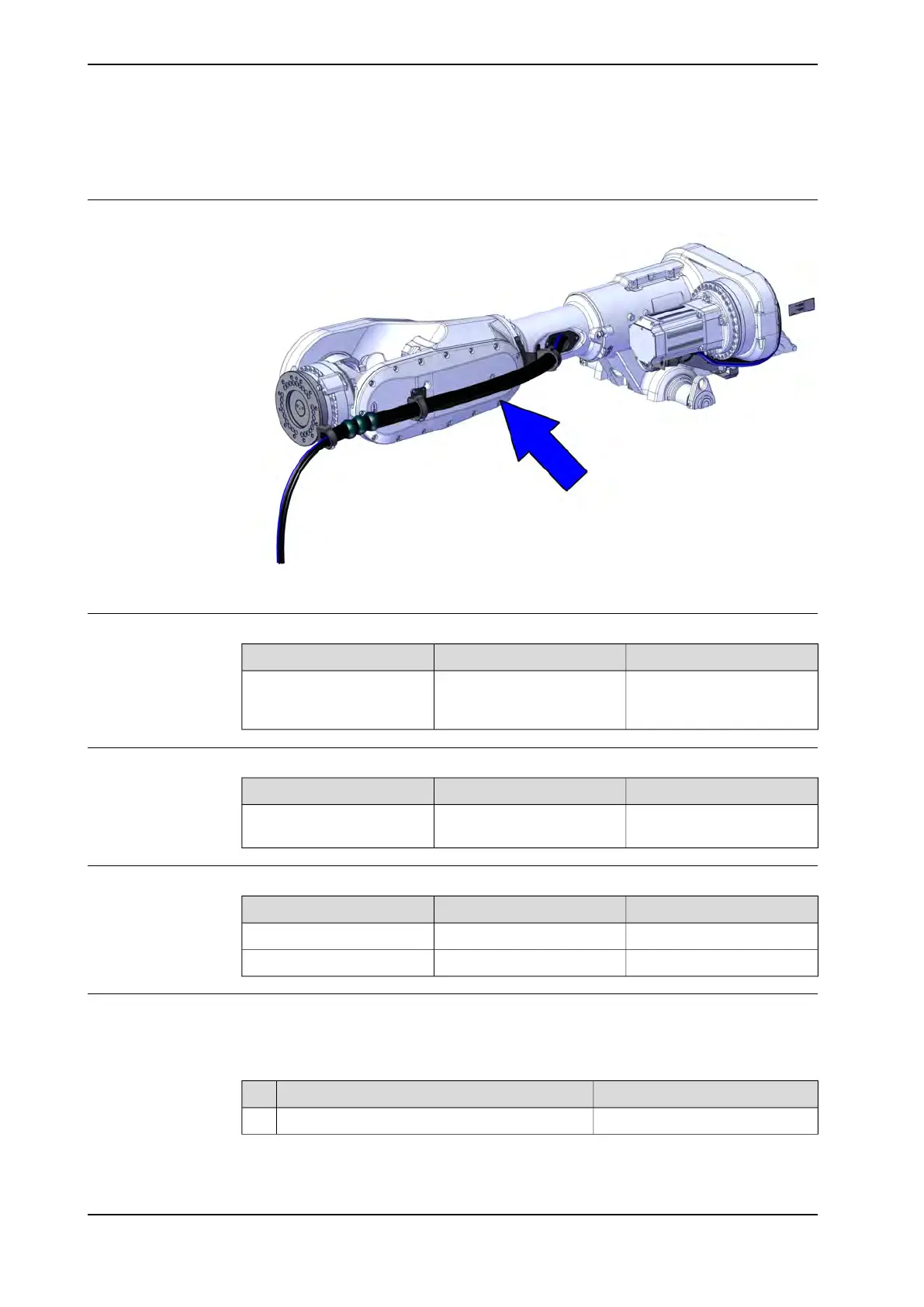

xx1500003018
Required parts
NoteArticle numberSpare part
See DressPack cable pack-
age IRBDP MH3 UI on
page 240
Cable package IRBDP MH3
UI
Required tools and equipment
NoteArticle numberEquipment
Content is defined in section
Standard toolkit on page 233.
Standard toolkit
Consumables
NoteArticle numberEquipment
Loctite 2433HAB7116-1Locking liquid
Optitemp RB23HAC14807-1Cable grease
Fitting the cable package IRBDP MH3 UI
Use this procedure to fit the cable package IRBDP MH3 UI.
Route the cable package
NoteAction
Move the robot to a comfortable working position.1
