NoteAction
xx1200000044

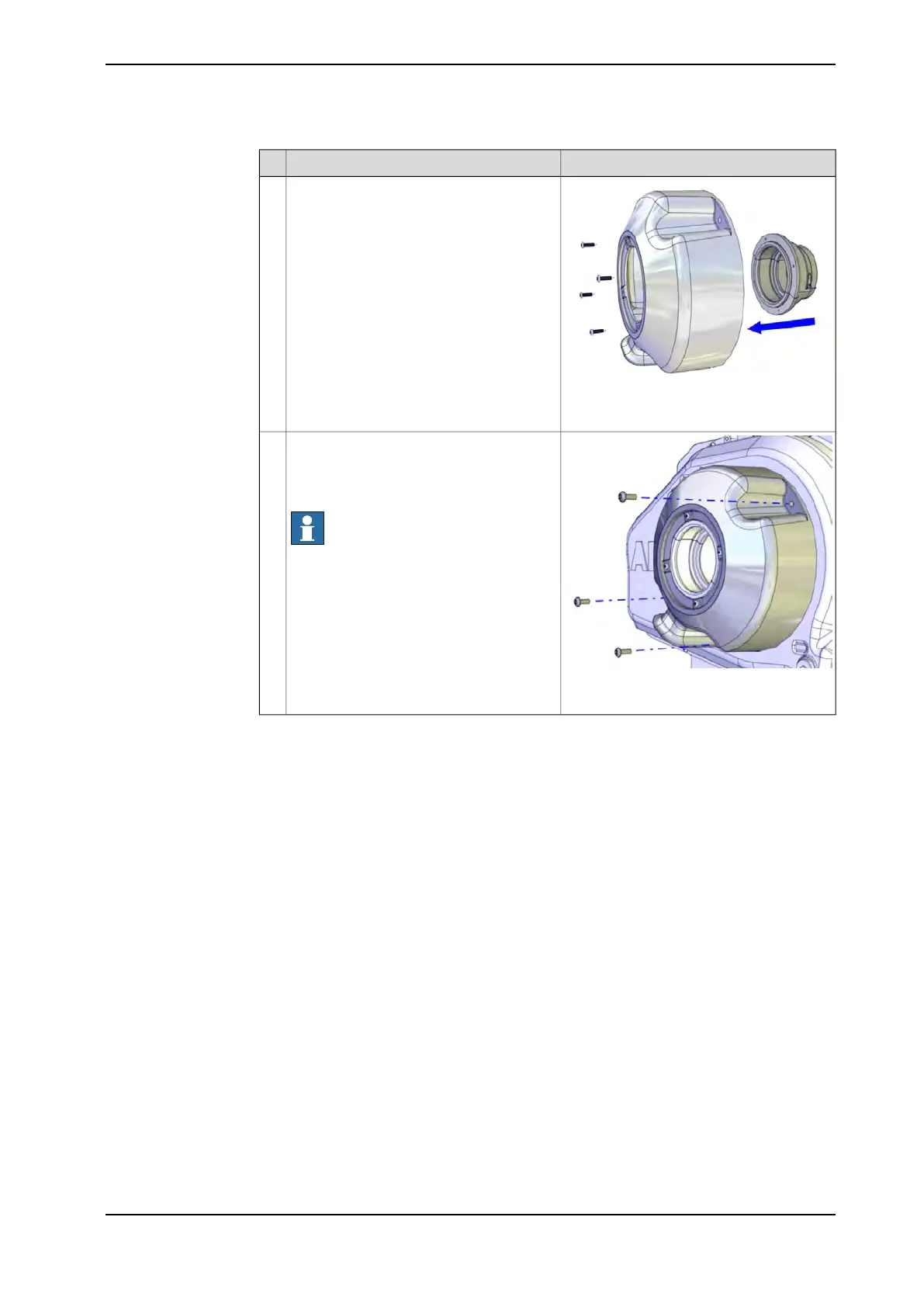

Fit the tube guiding ring in the cover.4
Screw, Pan head screw ST3.9x16 (4 pcs).
xx1200000045
Fit the cover, with the tube guiding ring, on
the tube and secure it to the armhouse
cover. Lock screws with locking liquid
(Loctite 243).
Note
Check that the tube is fitted correctly in
both ends, when fitting the cover.
5
Screws, M6x16 quality 8.8-A2F (3 pcs)
Product manual - DressPack/SpotPack IRB 8700 77
3HAC055802-001 Revision: B
© Copyright 2015-2017 ABB. All rights reserved.
2 Installation
2.4.3.1 Fitting attachments of the IRBDP MH3 UI
Continued
