Fitting insert, tube and cover
Fitting insert, tube and cover

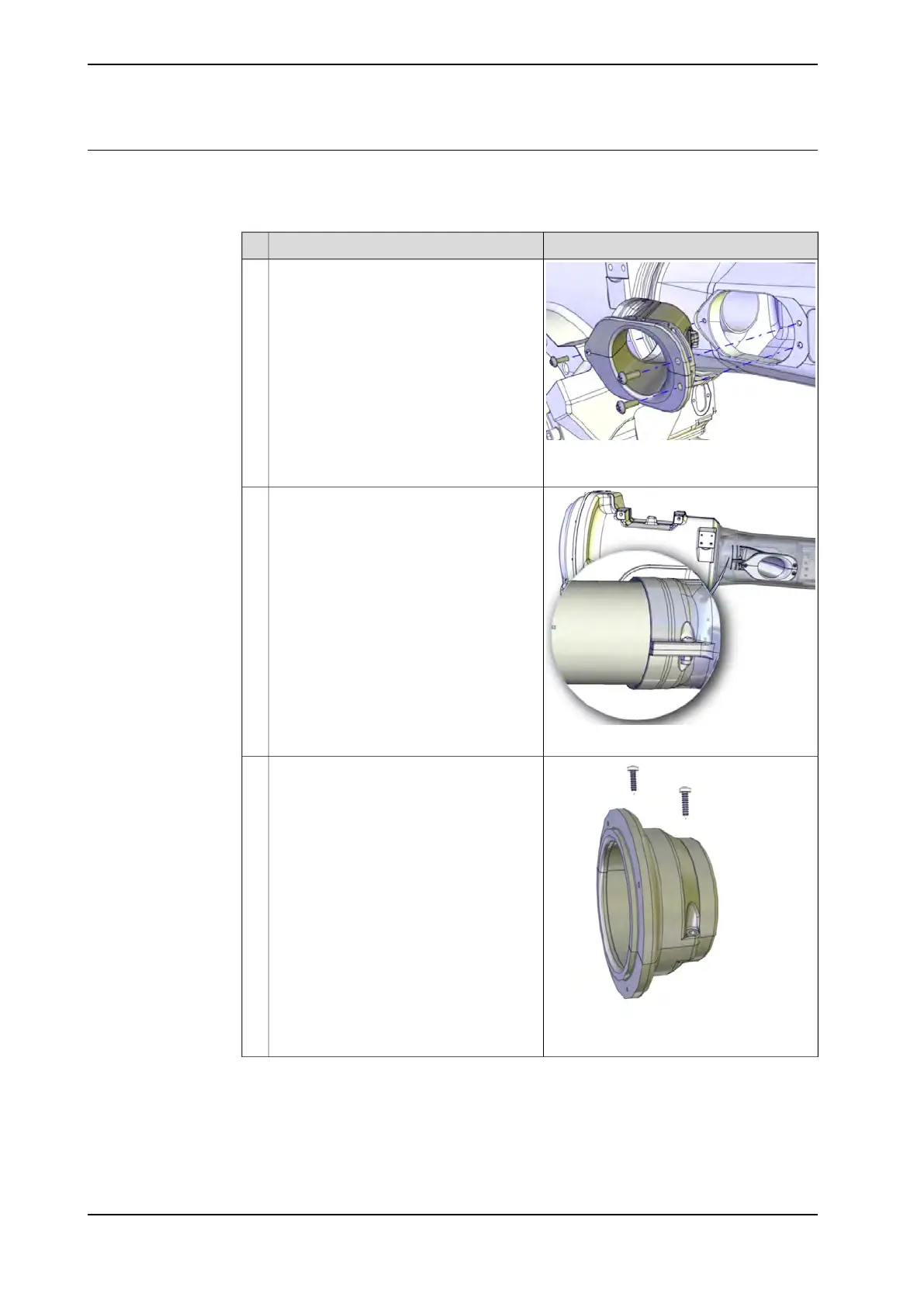

Use this procedure to fit the insert, the tube and the cover.
NoteAction
xx1200000042
Fit the insert. Lock screws with locking li-
quid (Loctite 243).
1
Screw, M6x16 8.8-A2F (3 pcs)
xx1200000043
Insert the tube into the arm tube and fit it
into the insert.
2
xx1200000162
Mount the two parts of the tube guiding
ring.
3
Pan head screw ST3.9x16 (2 pcs).
Continues on next page
