NoteAction

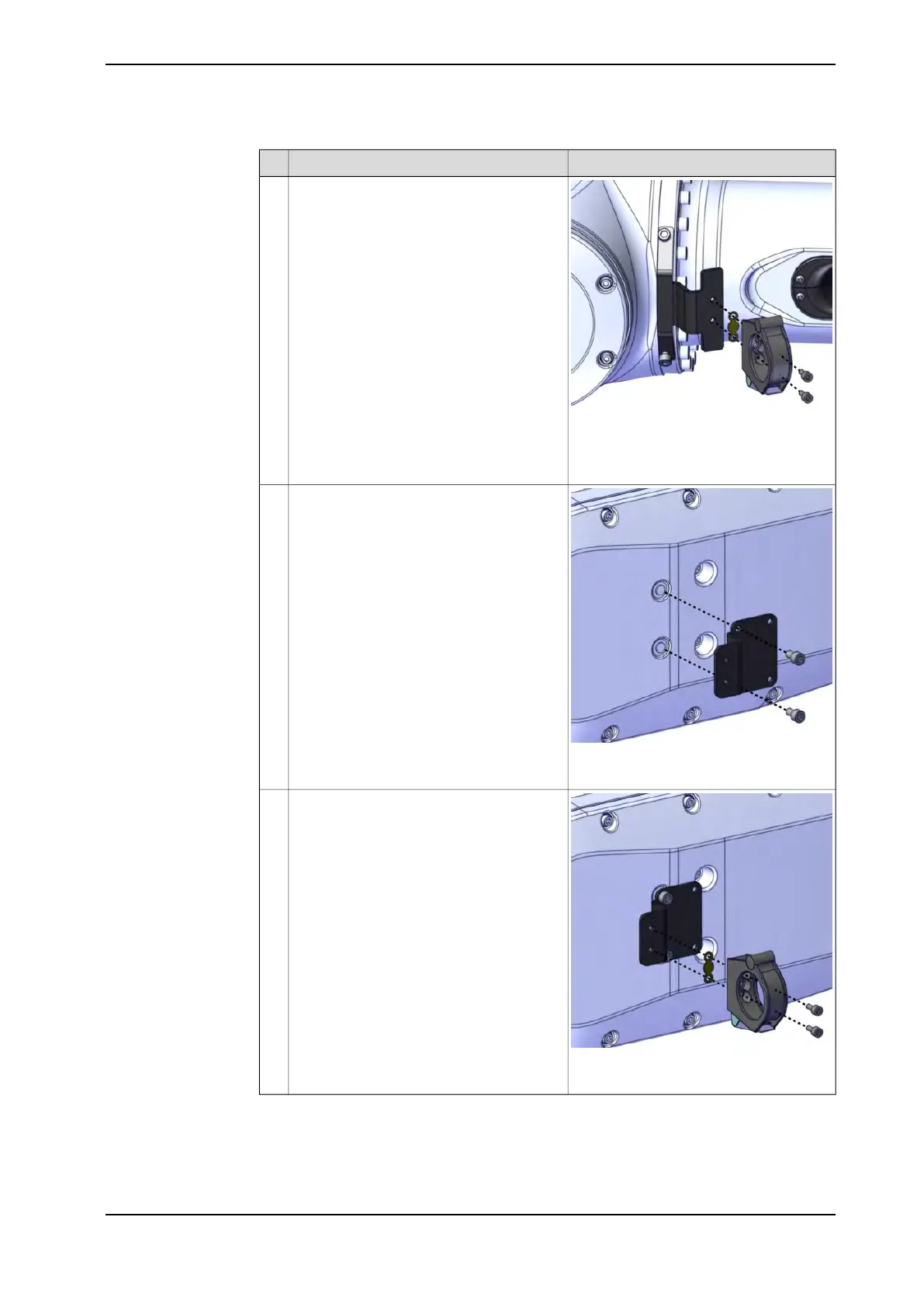

xx1500003016
Fasten gripping clamp. Lock screws with
Loctite 243 ( Locking liquid).
4
M8x16 A2-7 0 (2 pcs)
xx1500003013
Fasten the wrist bracket. Lock screws with
Loctite 243 ( Locking liquid).
5
M8x16 A2-7 0 (2 pcs)
xx1500003017
Fasten gripping clamp. Lock screws with
Loctite 243 ( Locking liquid).
6
M8x16 A2-7 0 (2 pcs)
Continues on next page
Product manual - DressPack/SpotPack IRB 8700 75
3HAC055802-001 Revision: B
© Copyright 2015-2017 ABB. All rights reserved.
2 Installation
2.4.3.1 Fitting attachments of the IRBDP MH3 UI
Continued
