2.4.3 Installation of IRBDP MH3 UI
2.4.3.1 Fitting attachments of the IRBDP MH3 UI
Location of the attachments

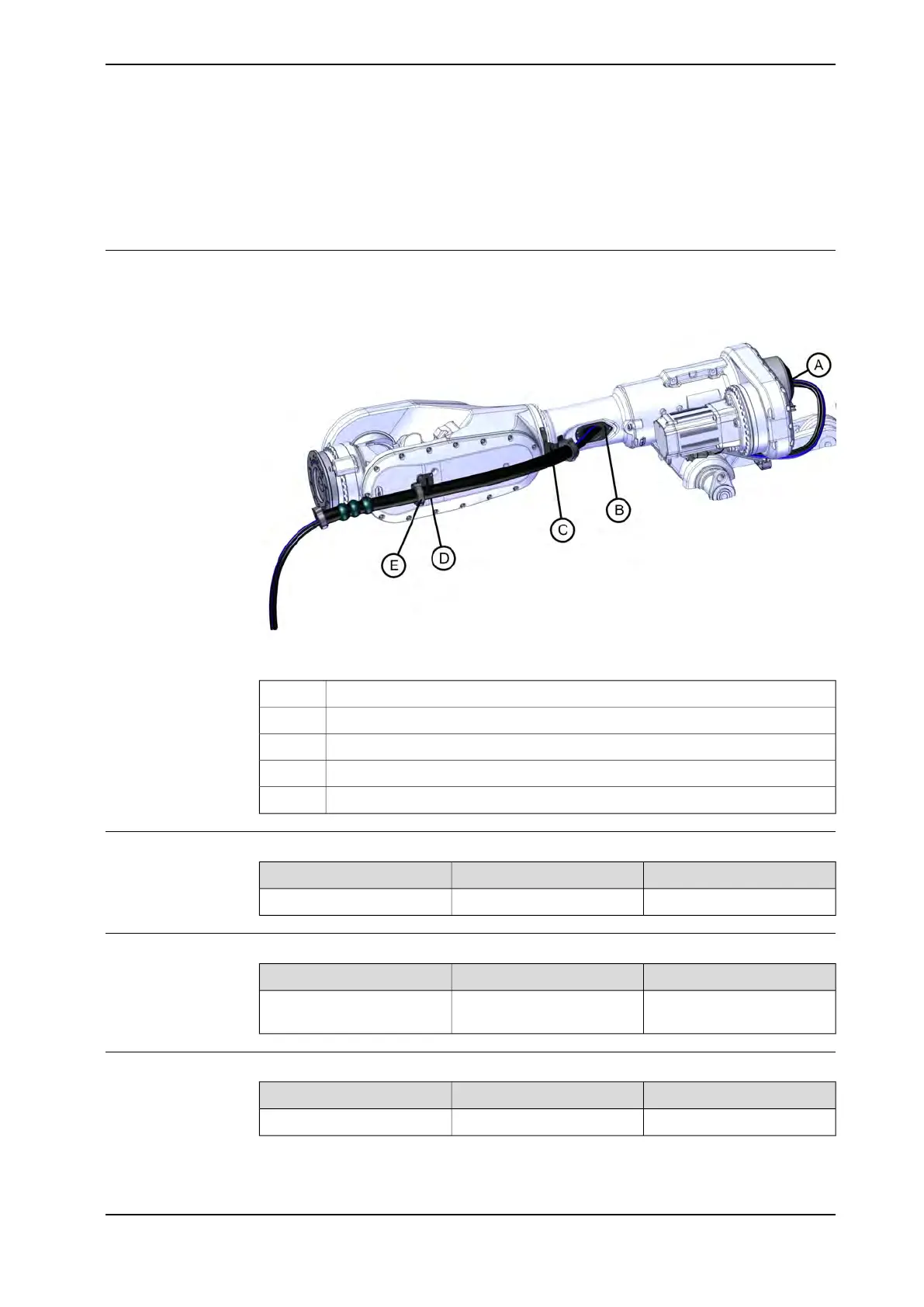

The location of the attachments of the cable package are shown in the figure.
xx1500003001
CoverA
Insert and tube (inside upper arm)B
Upper arm bracketC
Wrist bracketD
Gripping clampE
Required parts
NoteArticle numberSpare part
3HAC053947-001Material set IRBDP MH3 UI
Required tools and equipment
NoteArticle numberEquipment, etc.
Content is defined in section
Standard toolkit on page 233.
-Standard toolkit
Consumables
NoteArticle numberEquipment
Loctite 2433HAB7116-1Locking liquid
Continues on next page
