2.4.5 Installation of IRBDP MH6 UI and IRBDP SW6 UI, LeanID
2.4.5.1 Fitting attachments of the IRBDP MH6 UI and IRBDP SW6 UI, Lean ID
Location of the attachments

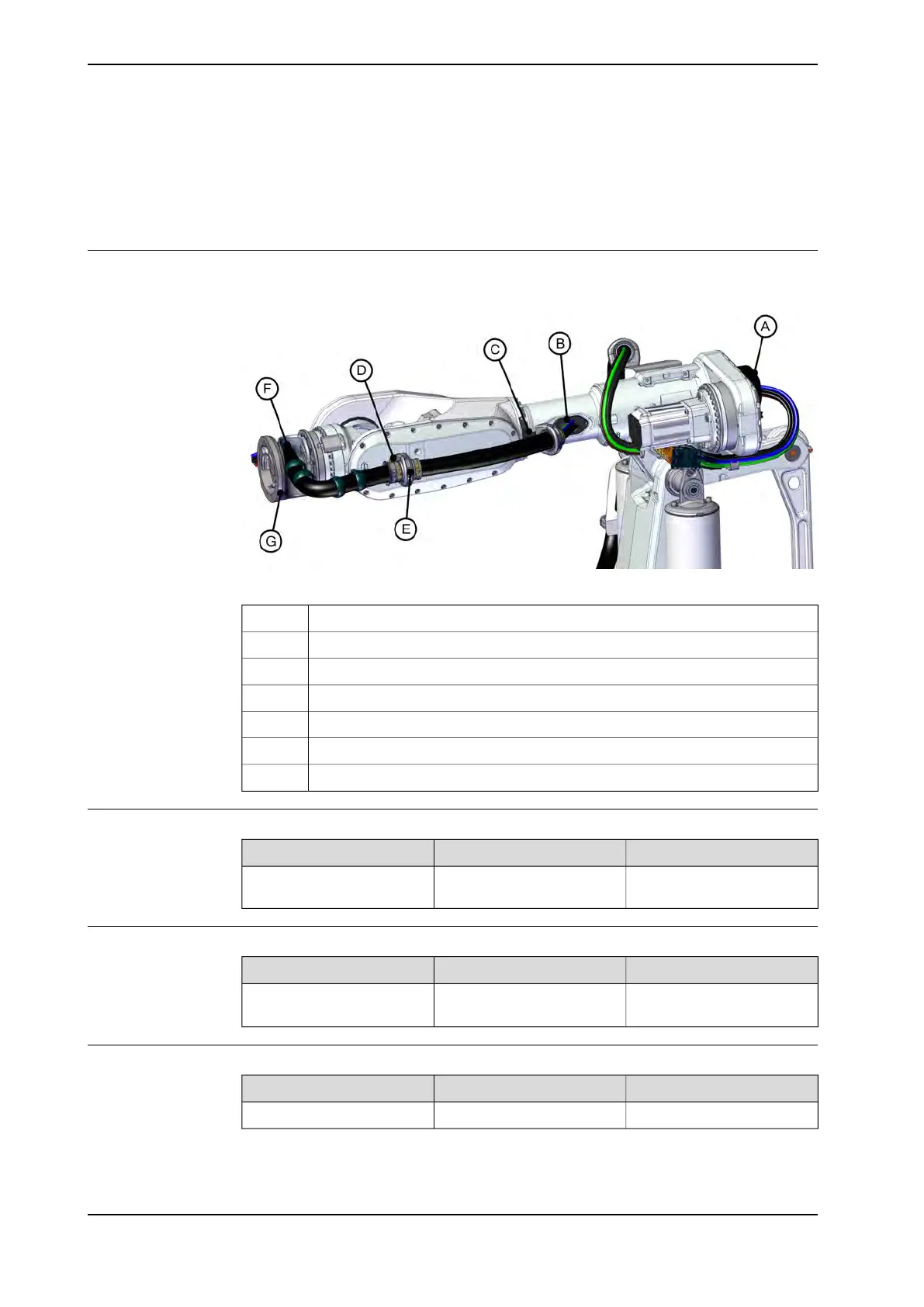

The cable package attachemnts are located as shown in the figure.
xx1500002766
CoverA
InsertB
Upper arm bracketC
Bearing housingD
Ball joint housingE
Cable guideF
Process turning discG
Required parts
NoteArticle numberEquipment, etc.
3HAC053942-001Material set IRBDP SW6 UI
and IRBDP MH6 UI
Required tools and equipment
NoteArticle numberEquipment, etc.
Content is defined in section
Standard toolkit on page 233.
-Standard toolkit
Consumables
NoteArticle numberEquipment, etc.
Loctite 2433HAB7116-1Locking liquid
Continues on next page
98 Product manual - DressPack/SpotPack IRB 8700
3HAC055802-001 Revision: B
