NoteAction
xx1400001143

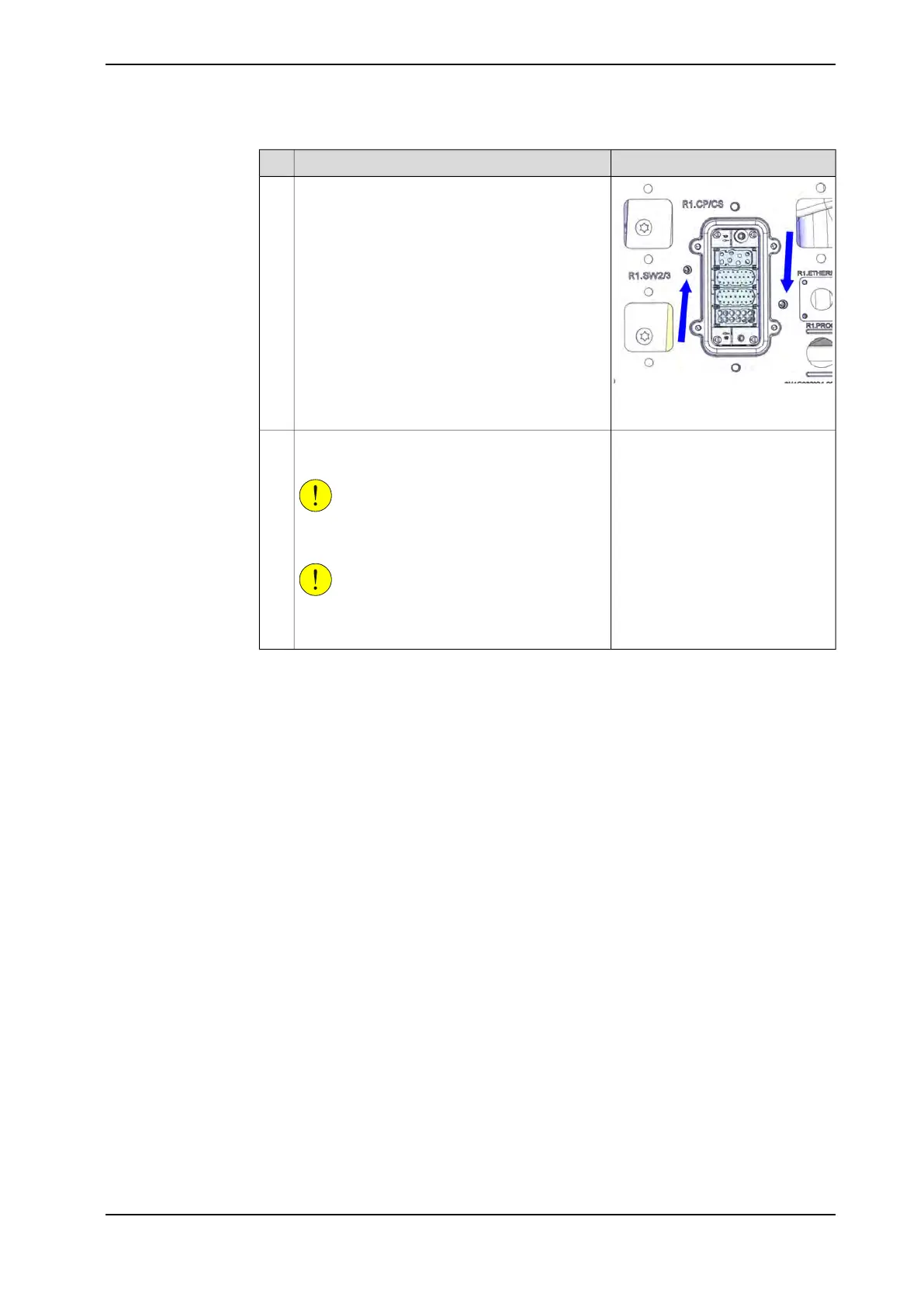

Secure the R1.CP/CS connector.8
M6x25 8.8-A2F (2 pcs)
Tightening torque, brass couplings
1/2": 31 Nm
Connect the rest of the cable and hose connectors
to the customer plate.
CAUTION
Do not tighten the brass couplings for water and
air with excessive force.
9
Tightening torque, brass couplings
3/8": 17 Nm
CAUTION
Make sure that no cables or hoses are twisted or
strained. Reroute if necessary.
Product manual - DressPack/SpotPack IRB 8700 97
3HAC055802-001 Revision: B
© Copyright 2015-2017 ABB. All rights reserved.
2 Installation
2.4.4.2 Fitting the cable package IRBDP SW6 LI, Lean ID
Continued
