Fitting the cable package attachments - IRBDP MH3 UI
Use this procedure to fit the cable attachments of the cable package IRBDP MH3
UI.
NoteAction
Move the robot to a suitable position for fit-
ting the cable attachments on the upper
arm.
1
DANGER
Turn off all:
• electric power supply
• hydraulic pressure supply
• air pressure supply
to the robot, before entering the robot
working area.
2

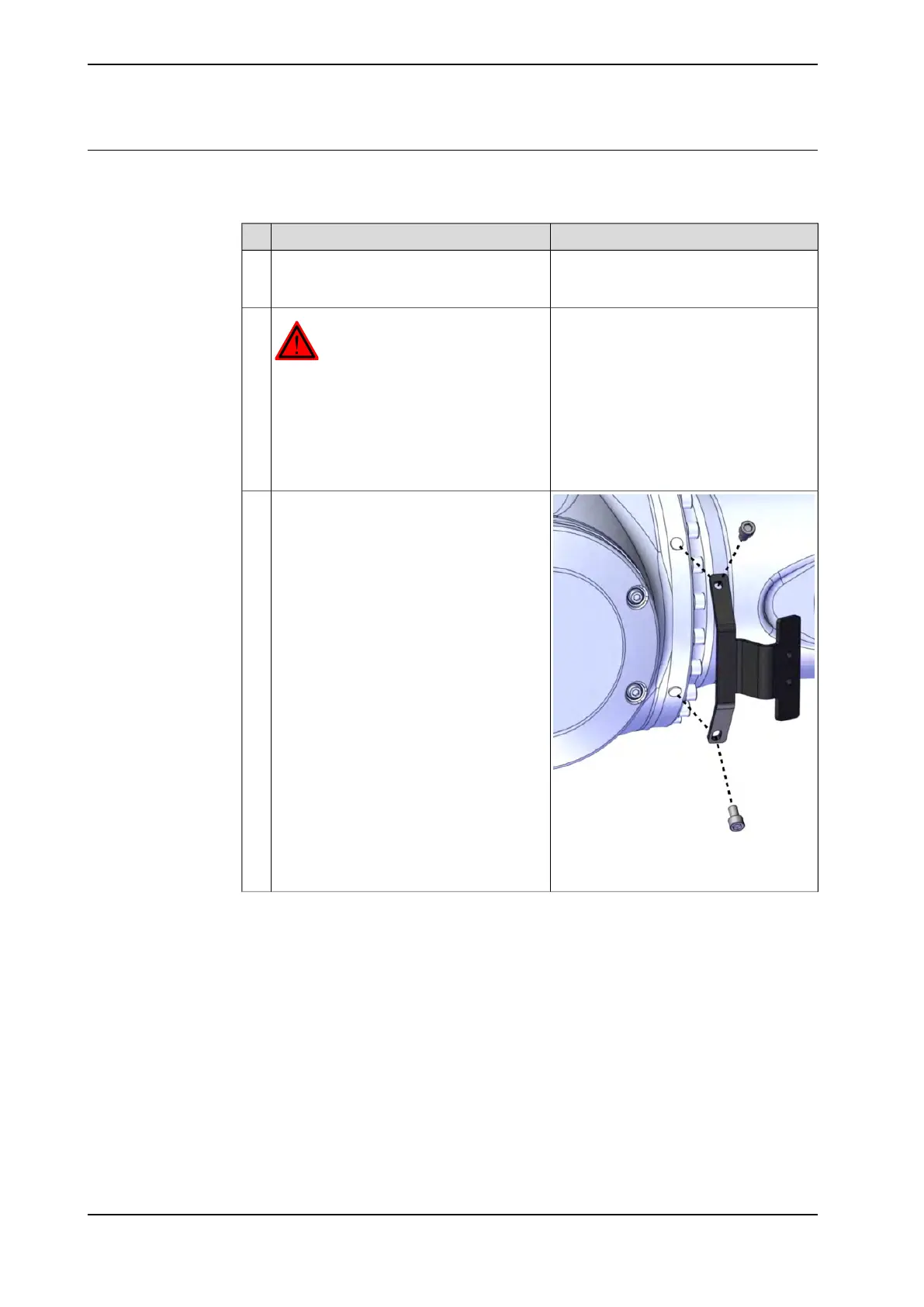

xx1500003002
Fasten the upper arm bracket. Lock screws
with Loctite 243 ( Locking liquid).
3
M8x16 A2-7 0 (2 pcs)
Continues on next page
