Maintenance procedure
NoteAction
DANGER
Before any work inside the cabinet, please
observe the safety information in the sec-
tion DANGER - Make sure that the main
power has been switched off in the product
manual for the IRC5 controller.
1

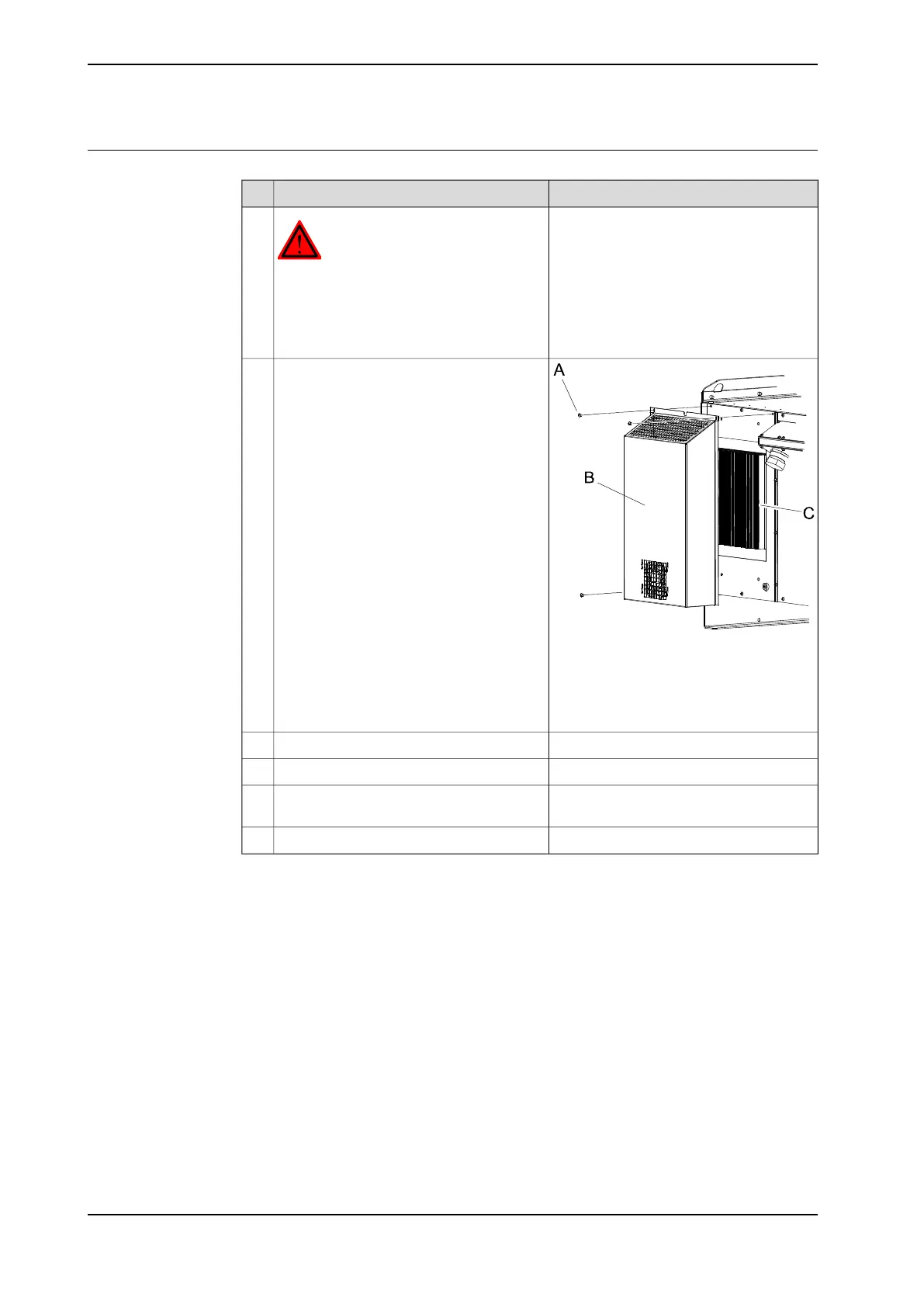

xx0500002240
Remove the attachment screws.2
• A: Attachment screw M5x9 Fastite
(3 pcs)
• B: Fan casing
• C: Cooling fins
Disconnect the fan connector.3
Remove the fan casing.4
Clean the cooling fins with a vacuum
cleaner.
5
Refit the fan connector and fan casing.6
