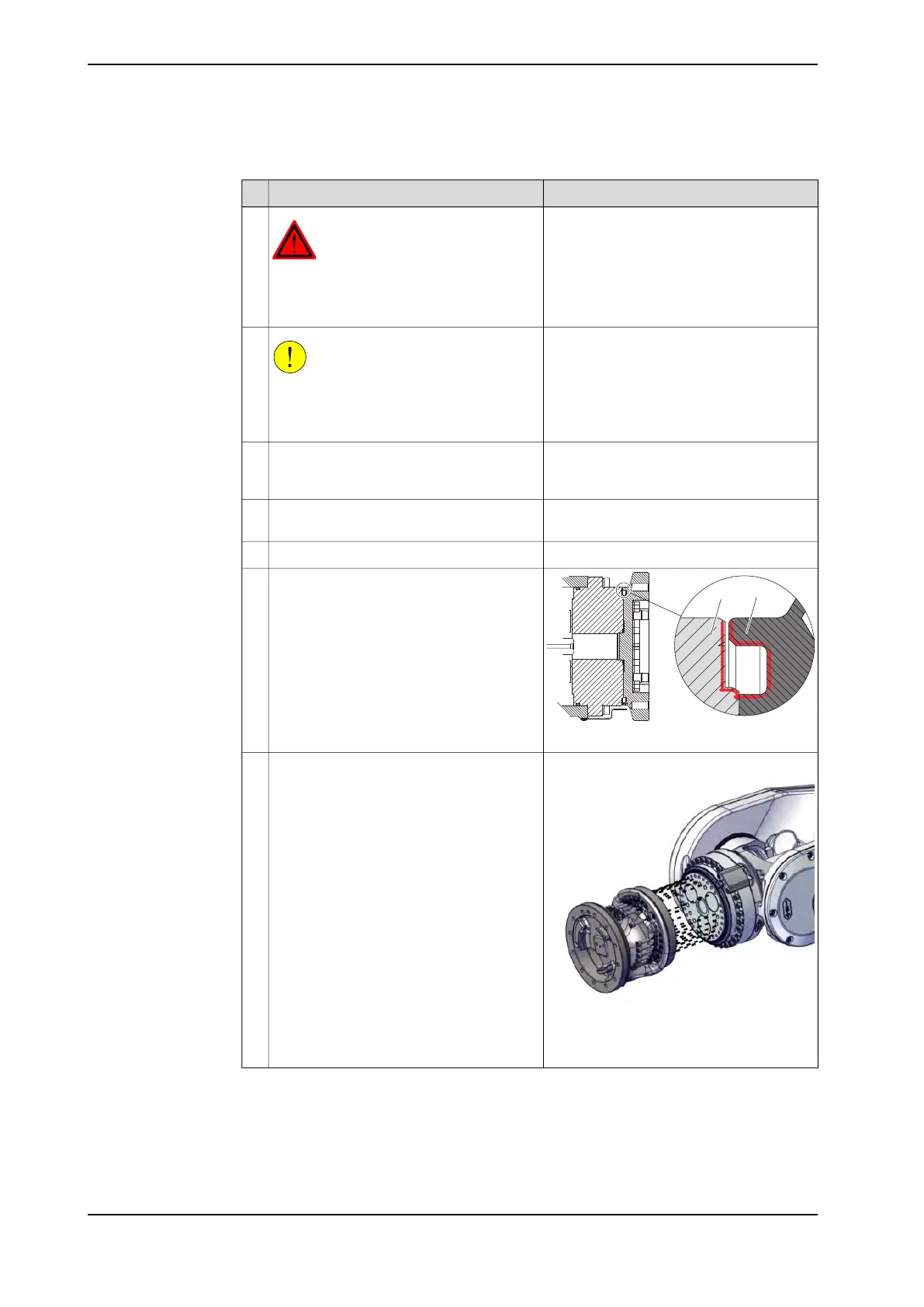

Fitting the process turning disc
NoteAction
DANGER
Make sure that all supplies for electrical
power, hydraulic pressure, and air pressure
are turned off.
1
CAUTION
The process turning disc weight is 50 kg.
All lifting equipment must be sized accord-
ingly.
2
Roundsling 1 m, Lifting capacity: 1,000 kgAttach the roundsling to the process turn-
ing disc and to an overhead crane or simil-
ar.
3
Stretch the roundsling to take the weight
of the process turning disc.
4
Wipe clean the contacts surfaces.5
xx1400000385
Foundry Plus:
Apply Mercasol on the surfaces on the
process turning disc and axis-6 gearbox
as shown in the figure.
6
Tightening torque: 120
xx1500003048
Secure the process turning disc with its
attachment screws and washers.
7
M12x40 12.9 Gleitmo 603 (22 pcs)
Continues on next page
60 Product manual - DressPack/SpotPack IRB 8700
3HAC055802-001 Revision: B
