NoteArticle numberEquipment, etc.
3HAC053920-001Material set IRBDP MH LI
Required tools and equipment
NoteArticle numberEquipment, etc.
Content is defined in section
Standard toolkit on page 233.
-Standard toolkit
Consumables
NoteArticle numberEquipment, etc.
Loctite 2433HAB7116-1Locking liquid

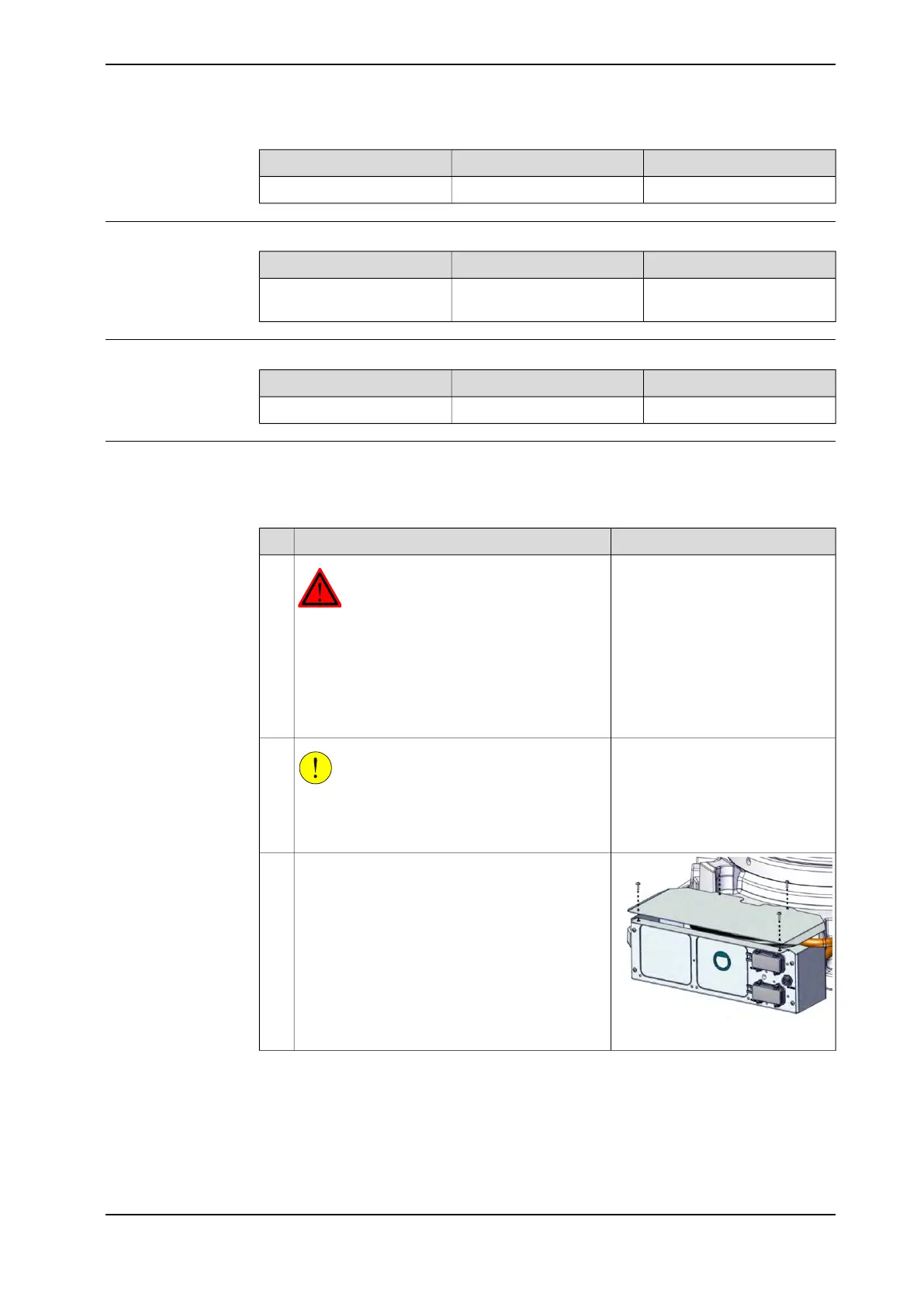

Fitting the cable package IRBDP MH LI
Use this procedure to fit the cable package IRBDP MH LI.
Connect the cable package at the base
NoteAction
DANGER
Turn off all:
• electric power supply
• hydraulic pressure supply
• air pressure supply
to the robot, before entering the robot working
area.
1
CAUTION
The cable package is sensitive to mechanical
damage. Handle it with care in order to avoid
damaging the cabling or the connectors.
2
xx1500002963
Remove the rear cover plate.3
Continues on next page
Product manual - DressPack/SpotPack IRB 8700 65
3HAC055802-001 Revision: B
© Copyright 2015-2017 ABB. All rights reserved.
2 Installation
2.4.2.1 Fitting the cable package IRBDP MH LI
Continued
