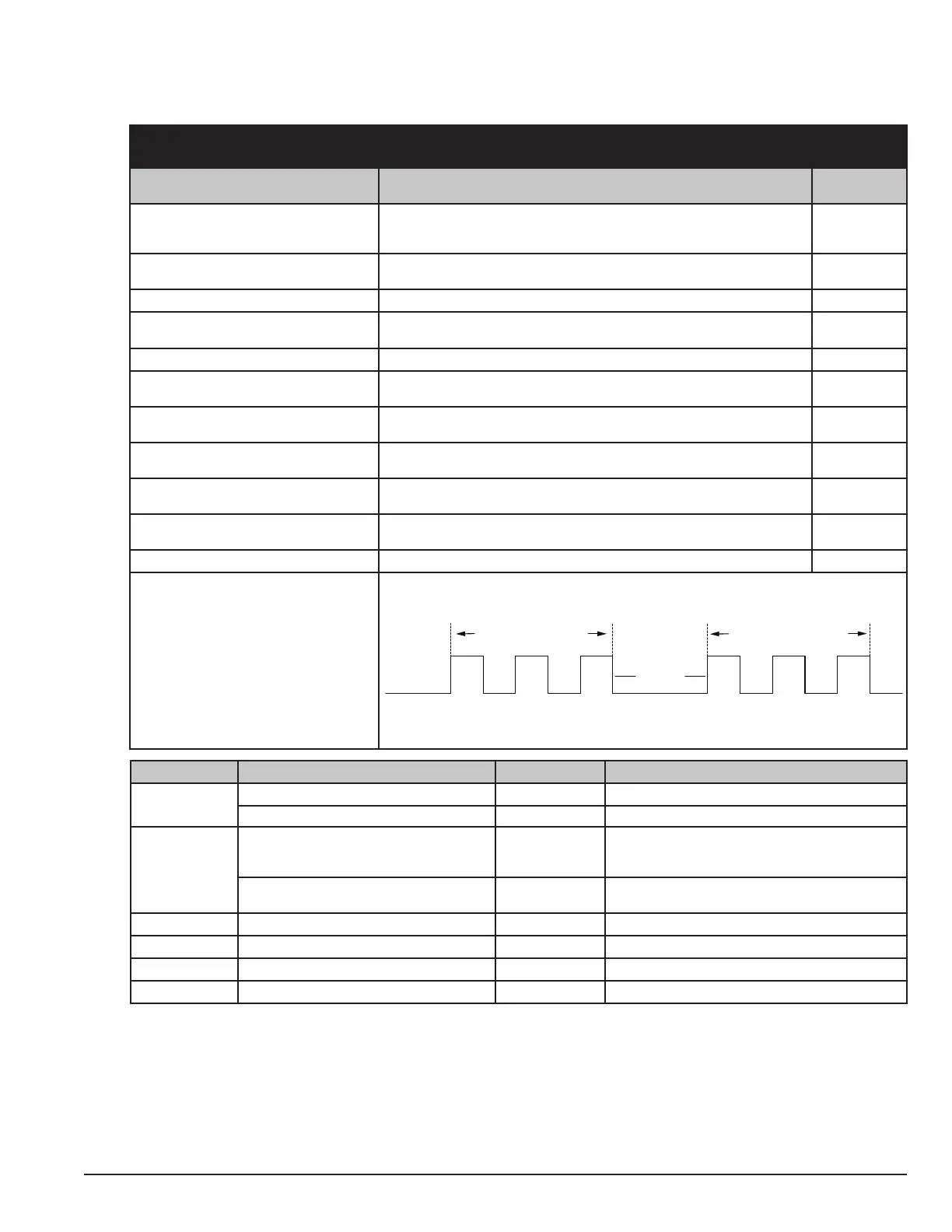

ABB EC Titanium Series User Manual

Parameter Denitions 10-9MN448
Parameters in the Long parameter mode
No. Name/Value Description Default
14 RELAY OUTPUTS Status information indicated through relay output and relay operating
delays
1401
OUTPUT RELAY FUNCTION
SELECT
Selects the function assigned to the relay output. The relay has two output
terminals, Logic 1 indicates the relay is active, and therefore terminals 10
and 11 will be linked together.
1: Drive
READY
0: DRIVE ENABLED
(RUNNING)
Logic 1 when the motor is enabled
1: DRIVE READY Logic 1 when power is applied to the drive and no fault exists
2: AT TARGET FREQUENCY
(SPEED)
Logic 1 when the output frequency matches the setpoint frequency
3: DRIVE TRIPPED Logic 1 when the drive is in a fault condition
4: OUTPUT FREQUENCY
>= LIMIT
Logic 1 when the output frequency exceeds the adjustable limit set in 3200
RELAY THRESHOLD LEVEL
5: OUTPUT CURRENT >=
LIMIT
Logic 1 when the motor current exceeds the adjustable limit set in 3200
RELAY THRESHOLD LEVEL
6: OUTPUT FREQUENCY
< LIMIT
Logic 1 when the output frequency is below the adjustable limit set in 3200
RELAY THRESHOLD LEVEL
7: OUTPUT CURRENT <
LIMIT
Logic 1 when the motor current is below the adjustable limit set in 3200
RELAY THRESHOLD LEVEL
8: ANALOG INPUT 2 >
LIMIT
Logic 1 when the signal on analog input 2 exceeds the adjustable limit set
in 3200 RELAY THRESHOLD LEVEL
9: DRIVE READY TO RUN Logic 1 when power is applied and the drive is enabled.
10: PULSE OUTPUT TO
INDICATE DRIVE HAS
TRIPPED
The pulsed output timing is to be as per the following diagram:
Trip pulse group for “Overvoltage/
Undervoltage” shown here, so 3
blinks/pulses
Trip pulse group is repeated after
every 15 sec’s until the trip is reset
15 sec’s
1 sec1 sec1 sec1 sec
The number of pulses for a given trip are as follows:
Blinks/Pulses Customer description of trip
Trip Code Notes
3
Overvoltage
000
Drive internal DC bus high.
Under voltage
0006
Drive internal DC bus Low.
4
Motor Over temperature
_Ptc or 0009
PTC thermistor connected to drive indicates motor
is over temperature or drives internal motor thermal
overload shows motor is over temperature
Drive Over temperature
0003 or
O-Heat
Drive heatsink or drive internal temp too high.
5 Overcurrent
000
Output over current
6 Ext Fault (fault connected to a Digital input)
004
External trip as requested on digital input 3
7 Short Circuit
h O-I
Output short circuit
Constant on Other trip
Any other trip not detailed within this table.
