FOXCST REFERENCE
FOX61xLEDE1 35

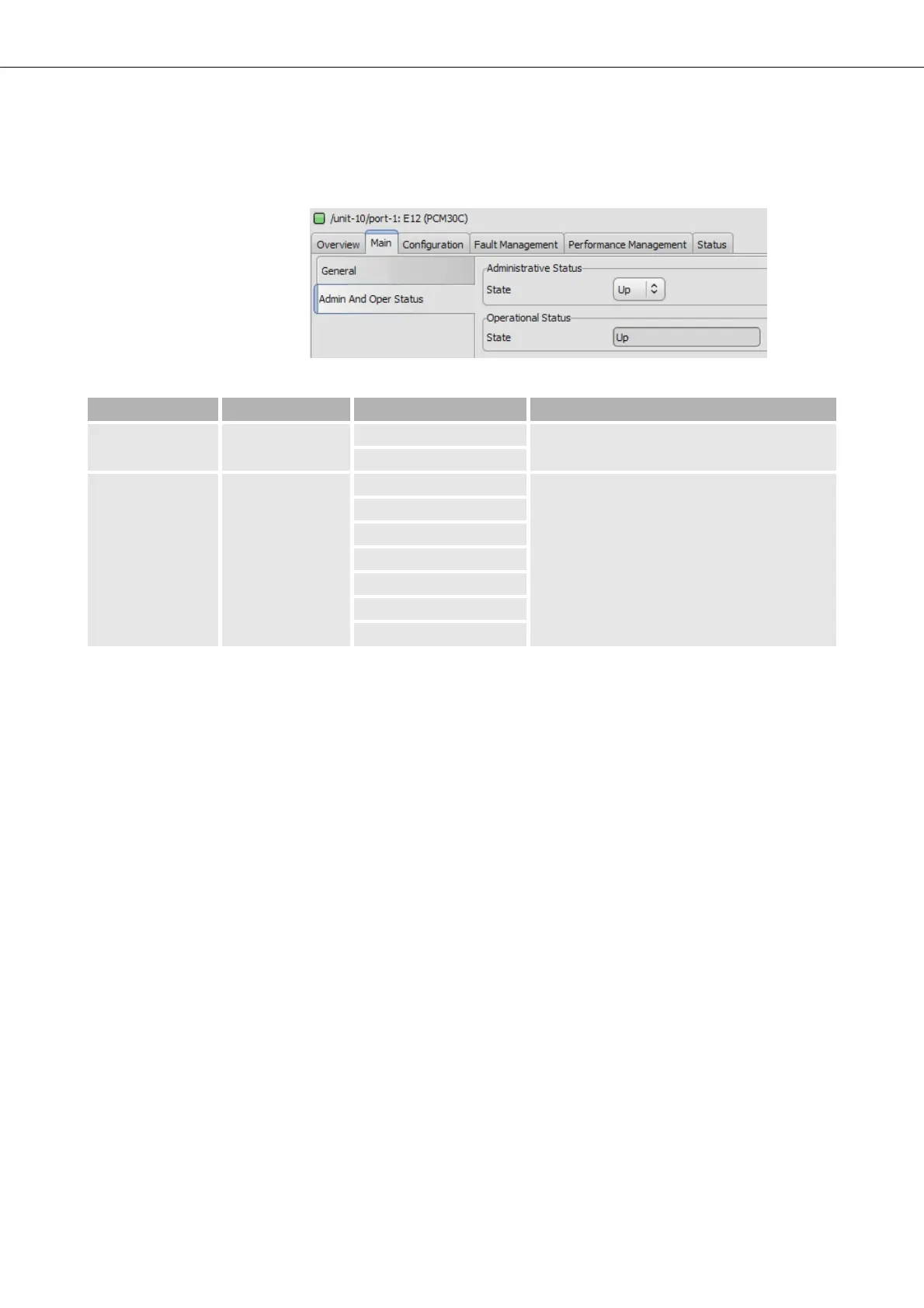

8.3.2.2 AP: / unit-x / port-y, Main - Admin And Oper Status
8.3.3 AP: / unit-x / port-y, Configuration
Please note that the fields for some of the configuration parameters are con-
text sensitive. Configuration parameters that are not available due to a
higher-ranking configuration parameter are indicated as “NA” (not available)
or “None”.
The steering parameters for the port configuration are
Termination Mode
Synchronization Method
The configuration strategy to be followed is from the uppermost tab (Gen-
eral) to the lowermost tab (Channel), and on the tabs from the top parameter
downwards.
After the parameter configuration of a higher-ranking parameter press the
“Apply” button to assign the applicable values to the lower-ranking parame-
ters.
Table 9: AP: / unit-x / port-y, Main - Admin And Oper Status
Operation Name Parameter Name Range Description / Details
Administrative Sta-
tus
State Up
Set the IETF administrative status of the port.
Down
Operational Status State Up
Display of the IETF operational status of the port.
Down
Testing
Unknown
Dormant
Not Present
Lower Layer Down
