8.3.5.2 AP: / unit-x / port-y, Status - QL
8.4 AP: / unit-x / port-y / chan-z
8.4.1 AP: / unit-x / port-y / chan-z, Main
8.4.1.1 AP: / unit-x / port-y / chan-z, Main - General
For a description of the
 “Overview - Alarms”,
 “Overview - Cross Connections”, and
 “Overview - CTP”
management functions, please refer to "1KHW002466 FOXCST Operation".
8.4.2 AP: / unit-x / port-y / chan-z, Main
8.4.2.1 AP: / unit-x / port-y / chan-z, Main - General
For a description of the
 “Main - General”

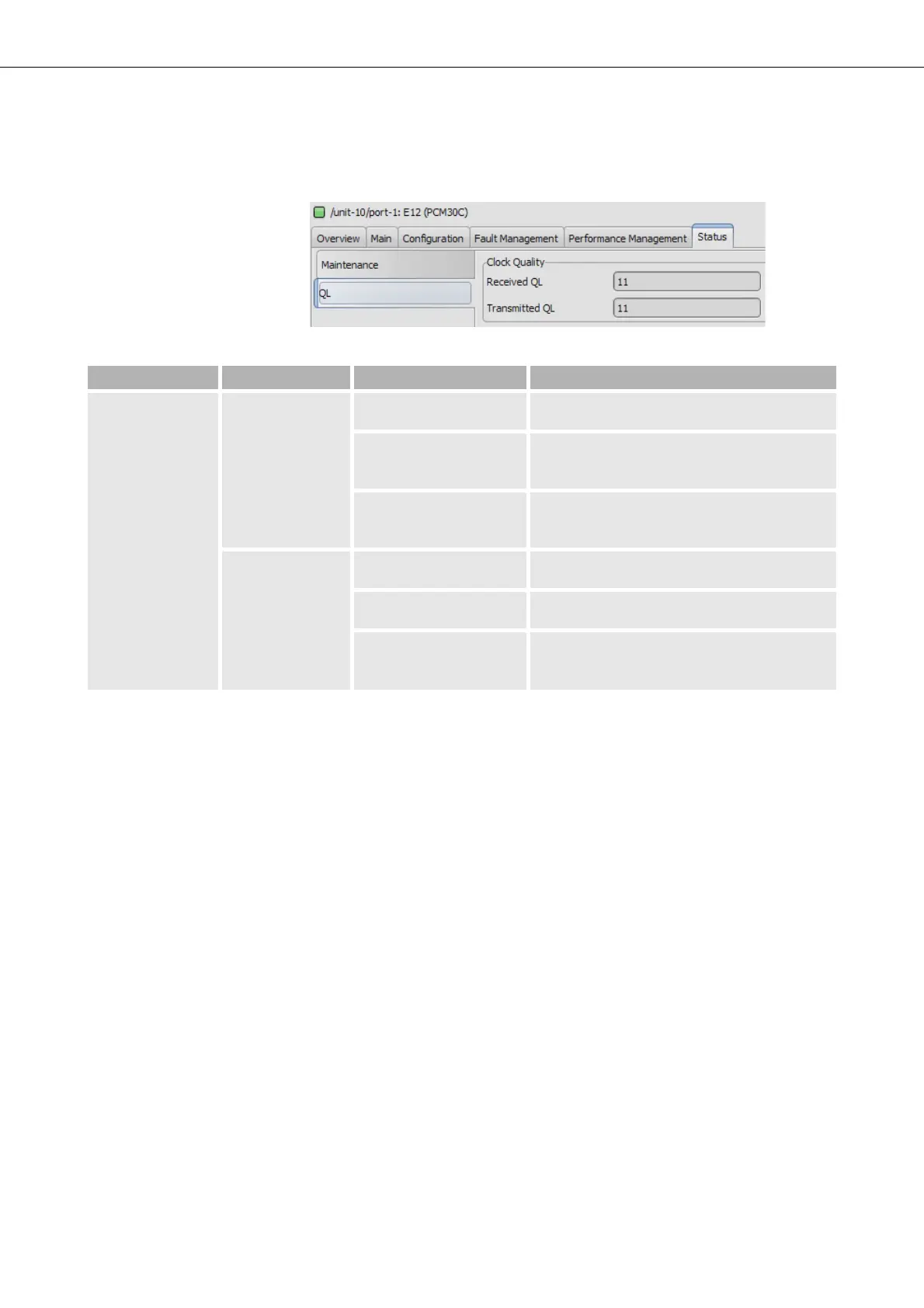

Table 17: AP: / unit-x / port-y, Status - QL
Operation Name Parameter Name Range Description / Details
Clock Quality Received QL
Unknown The synchronization method “None” has been
configured.
Do Not Use Received SSM value = 15.
The received SSI value = 0 is interpreted as “Do
Not Use” and gets the QL = 15 assigned.
1 … 14 Display of the received SSM value < 15.
The received SSI value = 1 is interpreted as
“Can Be Used” and gets the QL = 13 assigned.
Transmitted QL
Unknown The synchronization method “None” has been
configured.
Do Not Use The “Do Not Use” quality level is transmitted as
SSM value = 15, or as SSI value = 0.
1 … 14 Display of the transmitted SSM value < 15.
The transmitted SSI value = 1 is displayed as QL
= 13.
