Removing cover ring

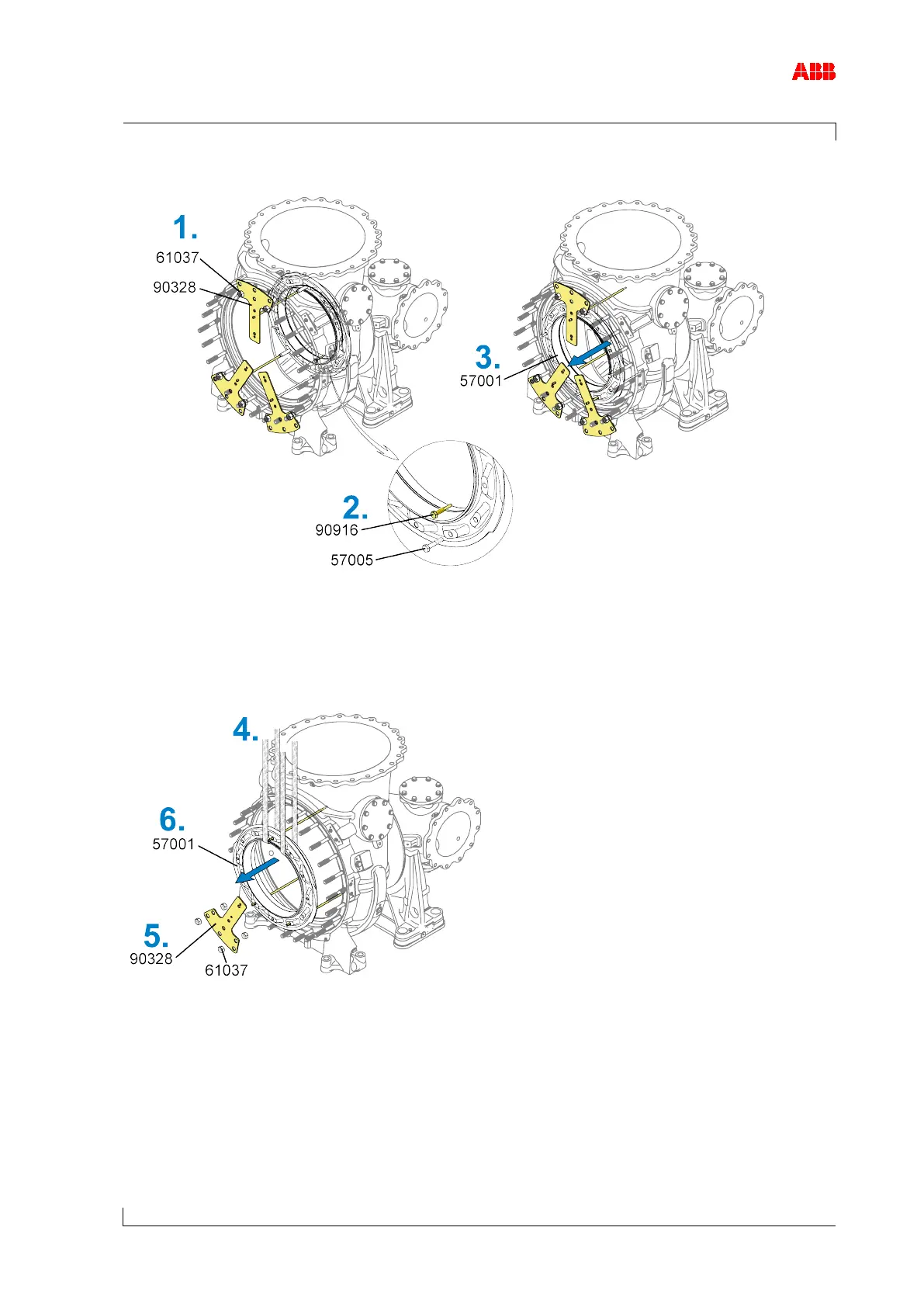

Figure 38: Removing cover ring 1
1. Refit guide plates (90328) with nuts (61037).
2. Loosen and remove screws (57005).
Using press-off screws (90916) in the holes provided, press off cover ring.
3. Pull cover ring (57001) out as far as it will go at guide plates.
Figure 39: Removing cover ring 2
4. Loop around cover ring and secure to lifting gear.
5. Remove guide plates (90328) and nuts (61037).
6. Fully pull out and put down cover ring (57001).
