4.2 Turbocharger speed
4.2.1 Introduction
Speed measuring systems enable constant monitoring of the turbocharger speed.
CAUTION
Do not strain cables
If you pull the speed measurement cables too hard, contacts can be pulled out.
 Do not strain the speed measurement cables by pulling.
4.2.2 Layout and overview

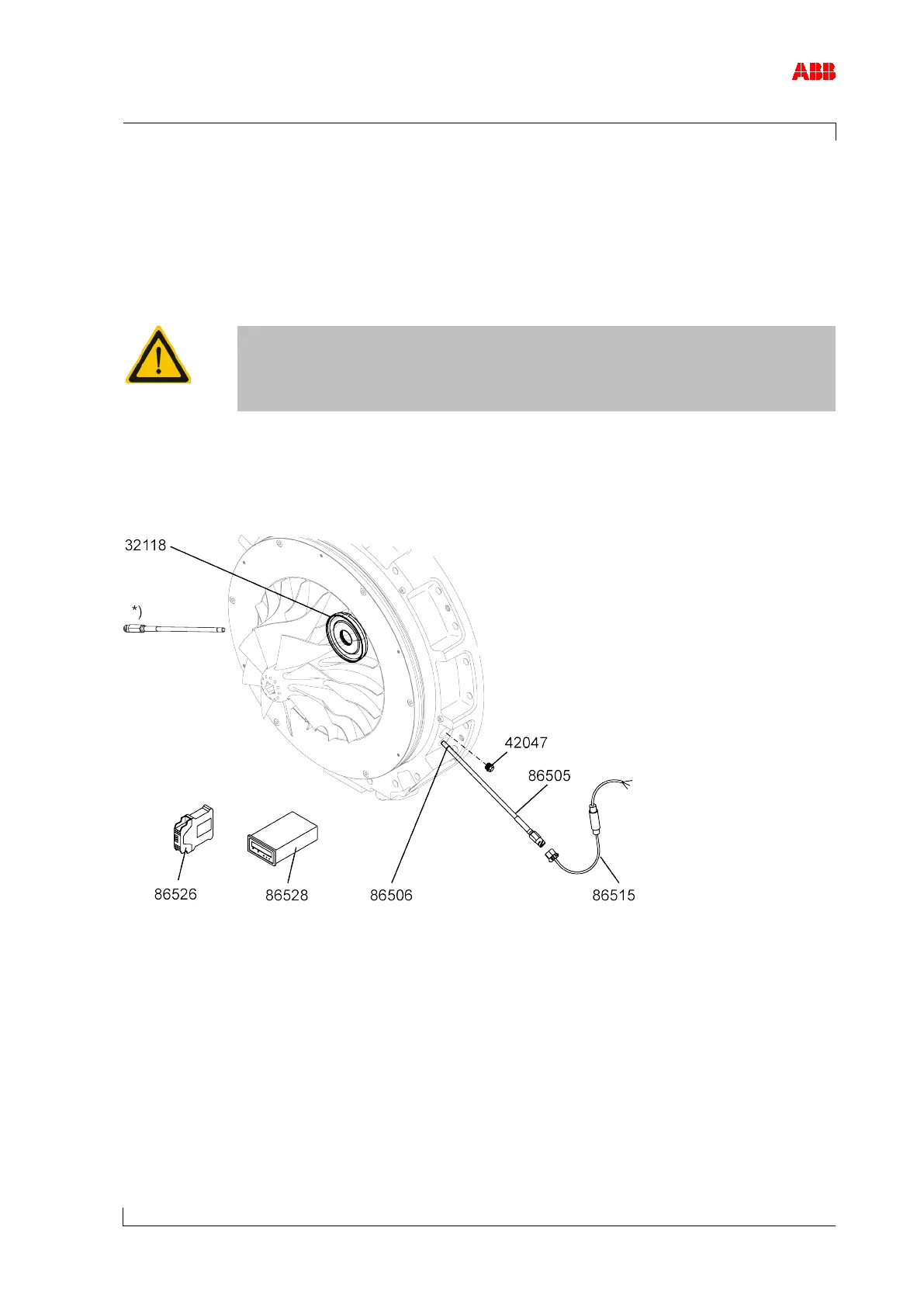

Figure 18: Speed measurement
86505 Speed sensor
86506
O-ring
86515
Cable connector
86526 F/I converter
86528
Tachometer
42047
Screw plug
32118 Auxiliary bearing with cams
*)
Alternative mounting position for speed sensor
