1.8 Turbocharger rating plate

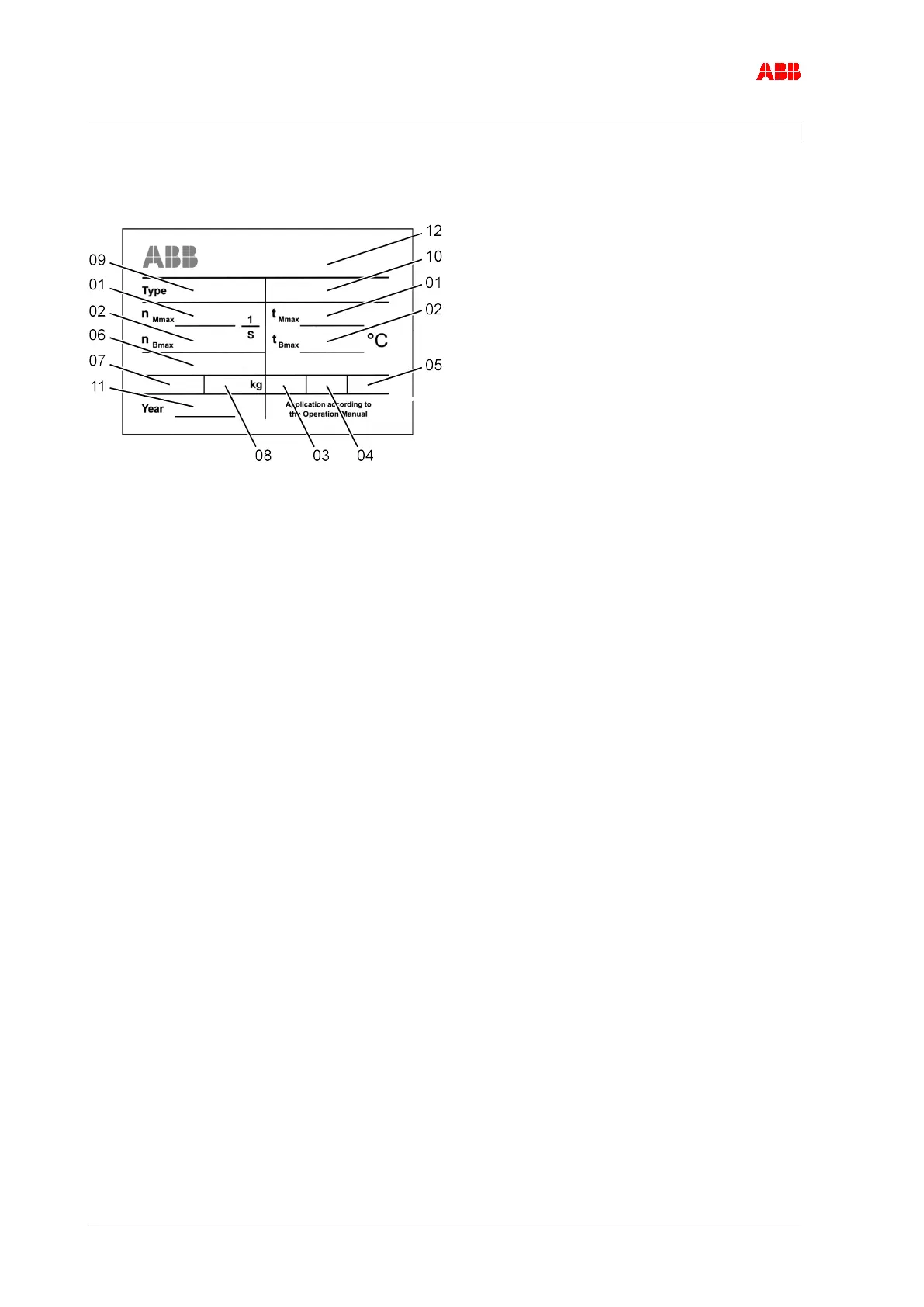

Figure 2: Rating plate
Operating limits
01 Turbocharger operating limits at engine overload (110 %).
In test rig operation only, unless otherwise agreed with the en-
ginebuilder.
02 Turbocharger operating limits during operation
Recommended replacement intervals of turbocharger components
03 Replacement interval of plain bearings in 1000 h
04 Replacement interval of compressor in 1000 h
05 Replacement interval of turbine in 1000 h
Further data
06
Customer part number
07 Designation for special design
08 Weight of turbocharger in kg
09
Turbocharger type
10
Serial number
11 Year of construction of turbocharger
12
Manufacturing plant
