6.3 Cleaning the slotted diffuser
 Remove the diffuser (see Removing the compressor casing [➙ 63]).

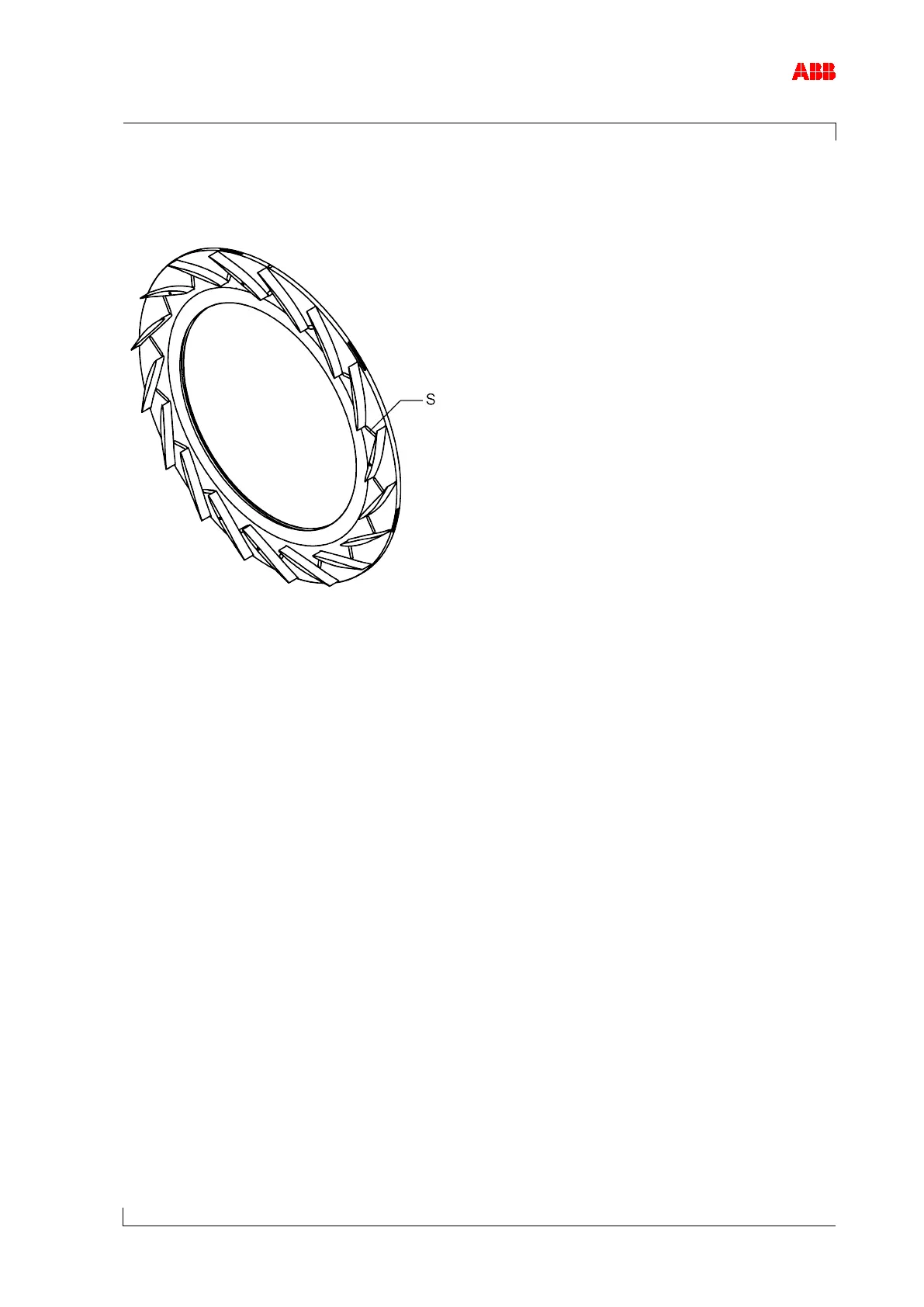

Figure 22: Cleaning the slotted diffuser
 Clean the diffuser slots (S).
When cleaning, please note that this should only take place using compressed air at low
pressure, a brush and a moist cleaning cloth.
 Have any heavily contaminated or damaged diffusers replaced by an ABB Turbocharging
Service Station.
