2 Removal and installation
2.1 Turbocharger weight
Lifting gear with a sufficient load limit must be used for removing and installing the turbocharger.
The following weight specification applies to the heaviest variant possible. Depending on the
specification, the weight specified on the rating plate may be lower than the standard value
specified here.

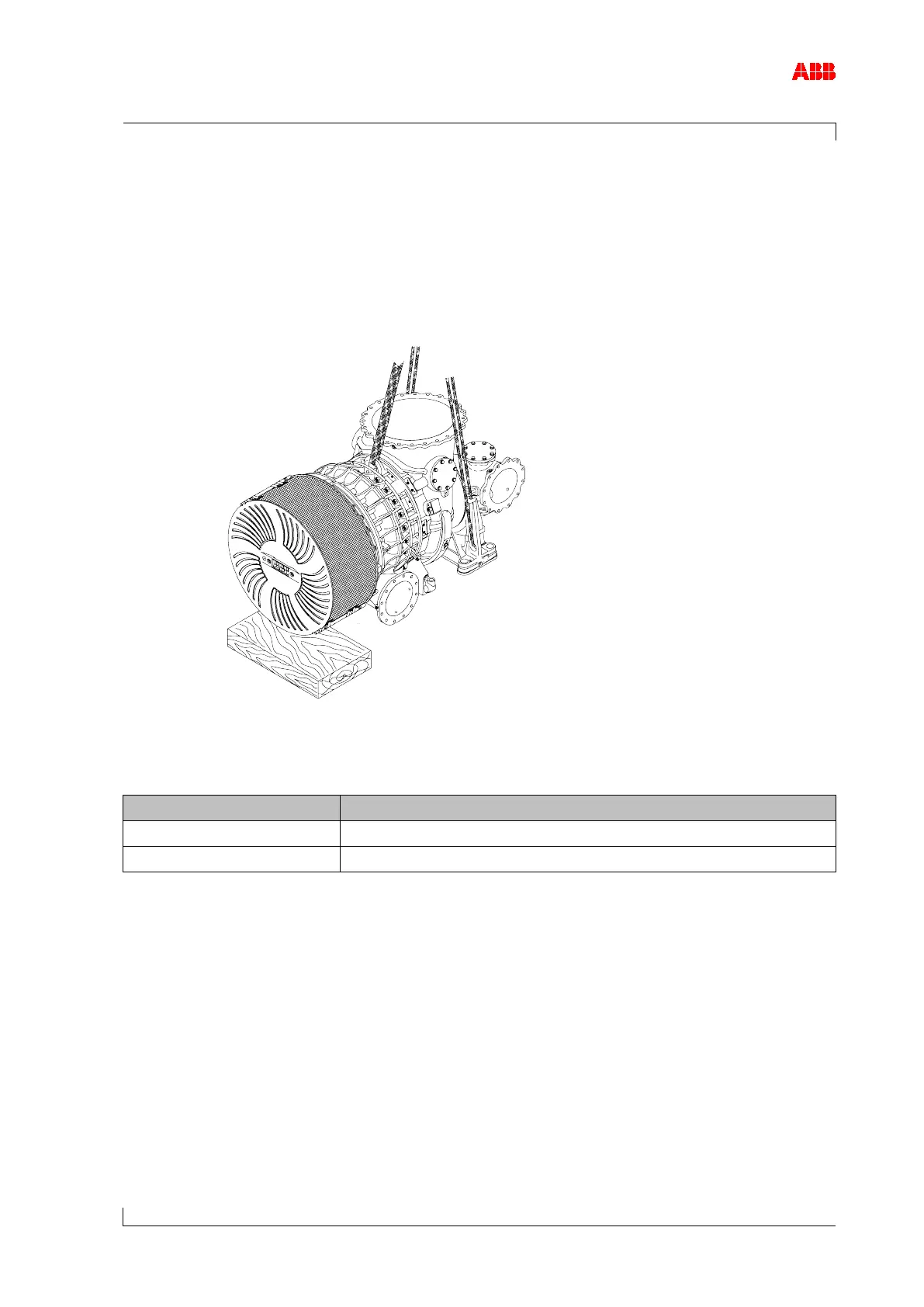

Figure 5: Turbocharger suspension points
Weight of the entire turbocharger
Product
Weight [kg]
A170-M
3100
A175-M 4600
Table 2: Weight of the turbocharger
