1.5 Warning plates on the turbocharger
Warning plates are attached at the following locations:

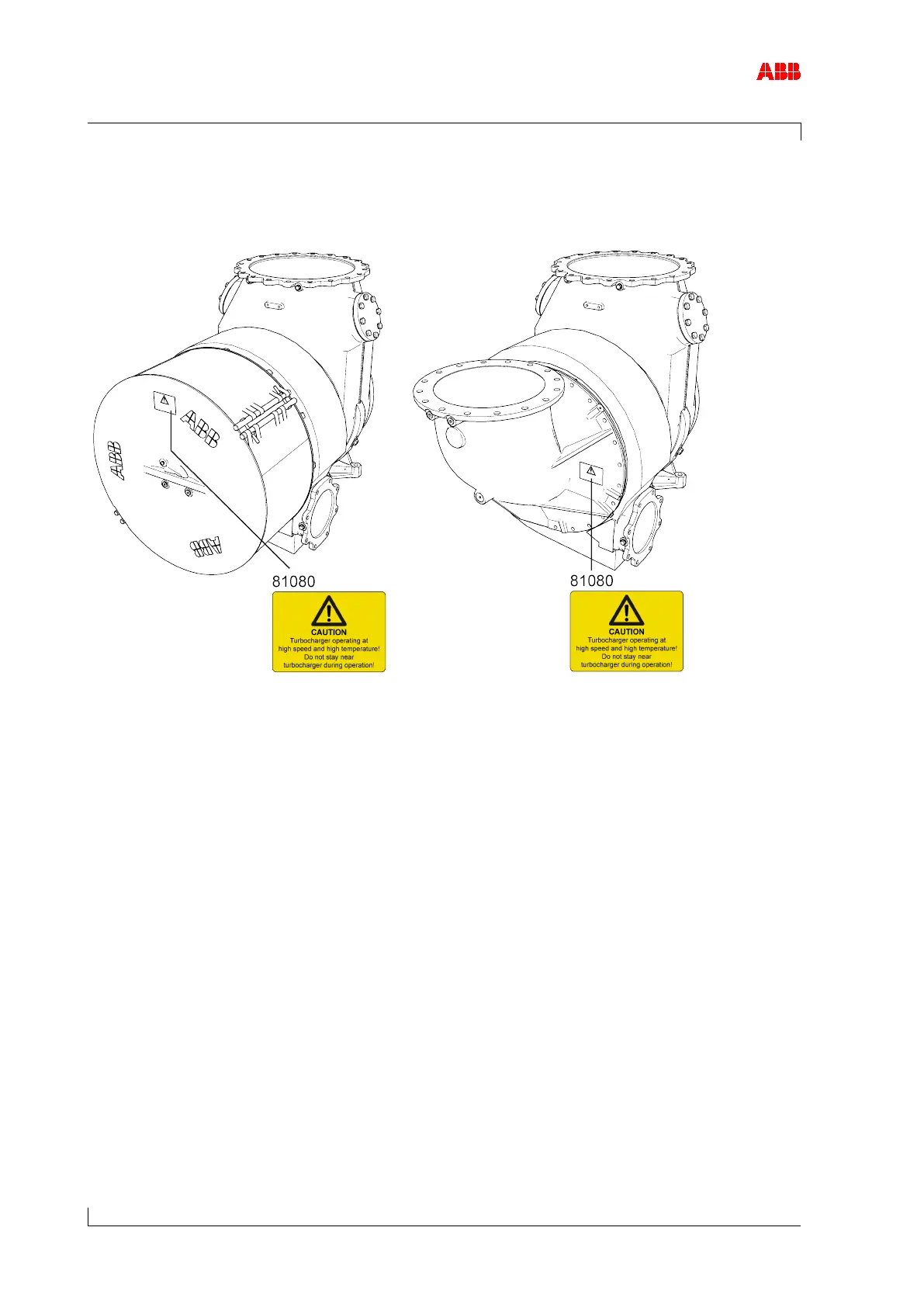

Figure 3: Warning plates on the turbocharger
If warning plates are not present in the designated locations or not readable, proceed as follows:
Order new warning plates from ABB Turbocharging Service Stations.
Remove any warning plates that have become unreadable.
Clean and degrease the areas designated for the warning plates.
Fit new warning plates and remove protective sheets.
Turbochargers supplied to the enginebuilder without insulation must be fitted later with warn-
ing plates to be attached to the insulation. This is the responsibility of the enginebuilder.
