1.6 Locations of the rating plates

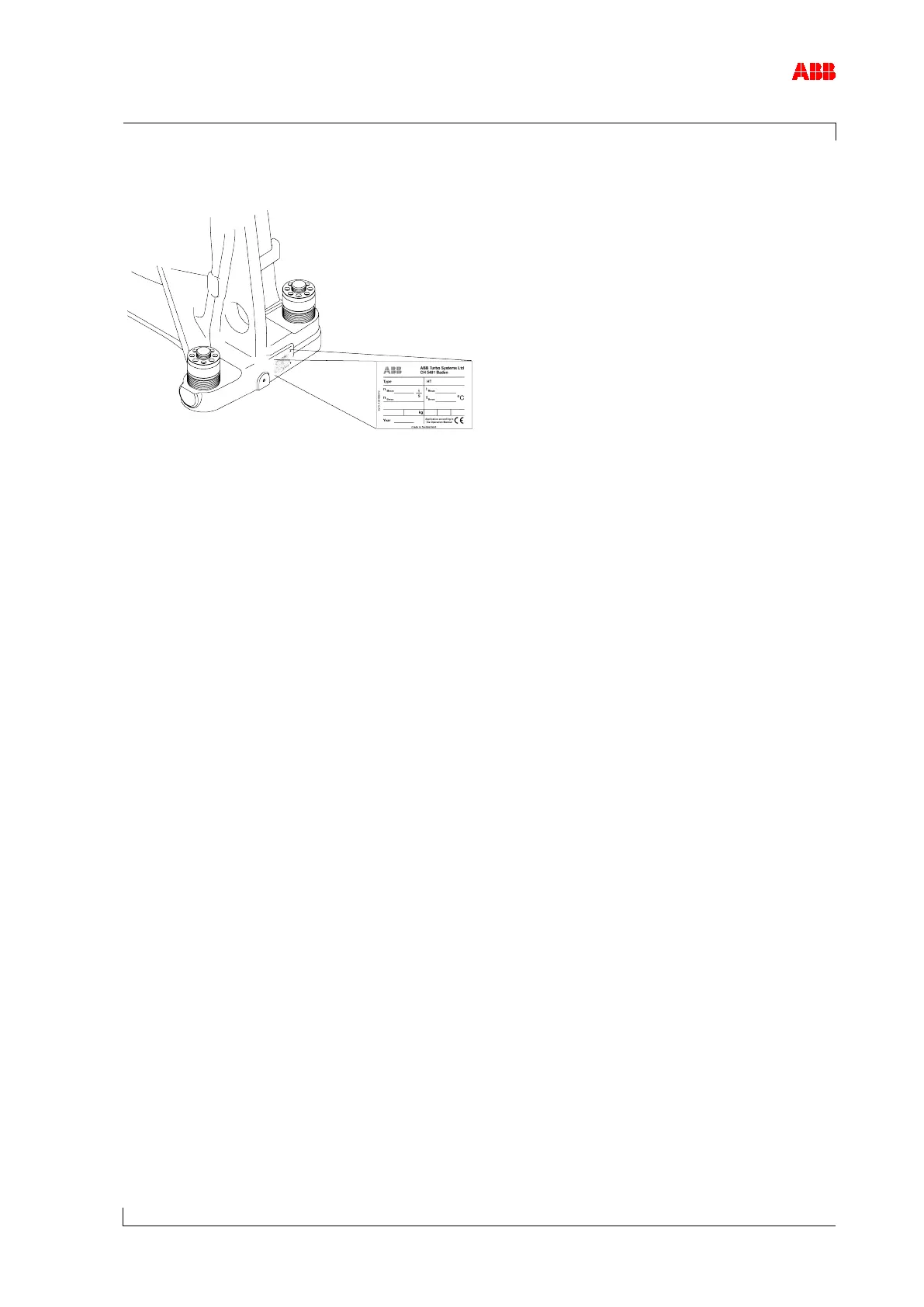

Figure 4: Locations of the rating plates
One rating plate each is attached on the left and the right side of the foot of the turbocharger.
On turbochargers with insulation from ABB Turbo Systems, at least one additional rating plate
is attached to the insulation of the gas outlet casing.
