Operation Manual / 4 Product description / A100-M axial
sassembly and assembly Page 70 /
© Copyright 2016 ABB. All rights reserved.
8.7 Removing nozzle ring
Removing turbine diffuser

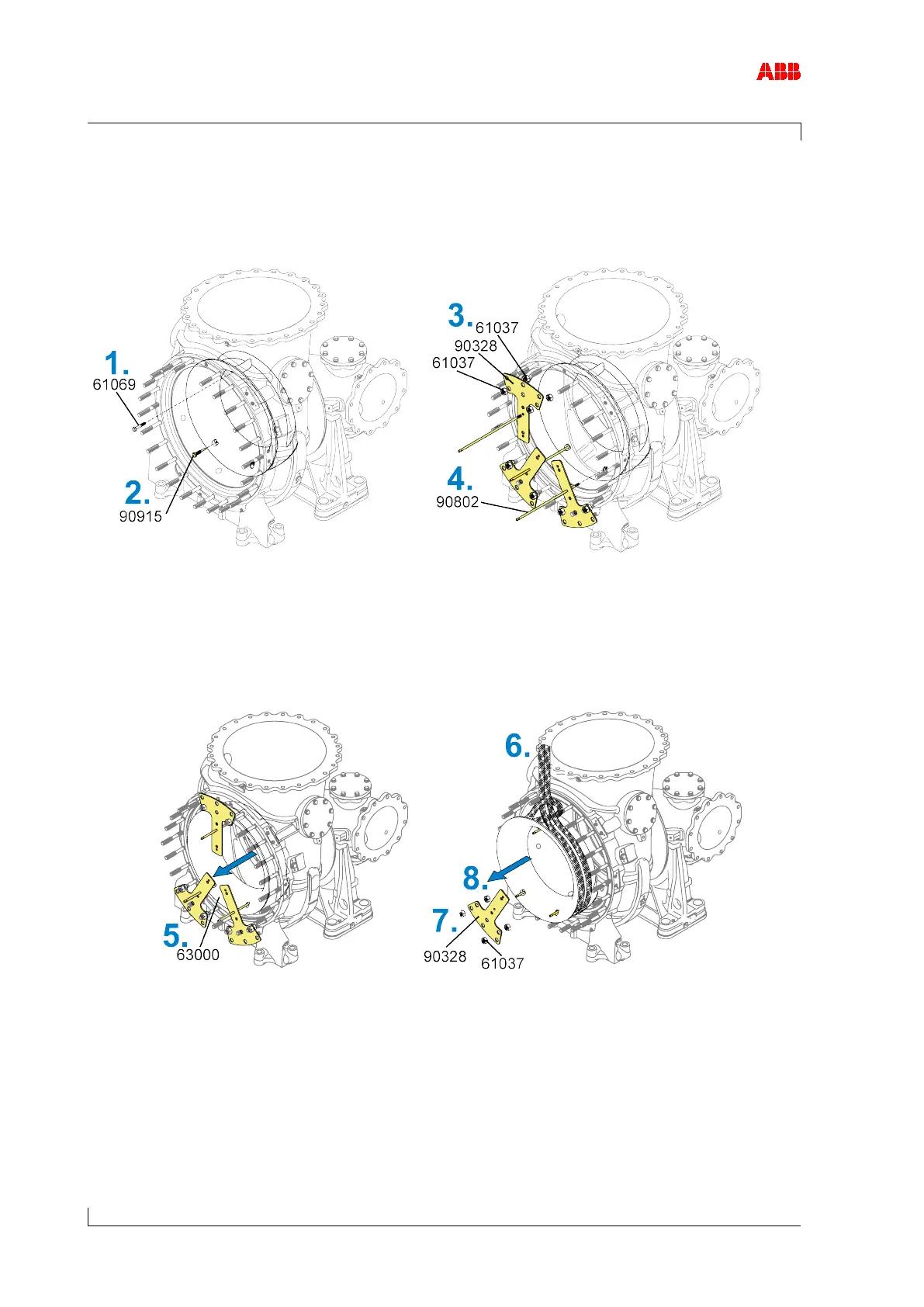

Figure 36: Removing turbine diffuser 1
1. Remove screws (61069).
2. Using press-off screws (90915), press off turbine diffuser.
3. Fit guide plates (90328) with nuts (61037).
4. Screw in guide stud (90802).
Figure 37: Removing turbine diffuser 2
5. Pull turbine diffuser (63000) out as far as it will go at guide plates.
6. Loop around turbine diffuser and secure to lifting gear.
7. Remove nuts (61037) and guide plates (90328).
8. Completely pull out and put down turbine diffuser.
