9.3 Fitting the cover plate
The cover plate and spacer sleeves (material: general construction steel, in compliance with
DIN EN 10025-2) must be manufactured according to the drawing from the operator.

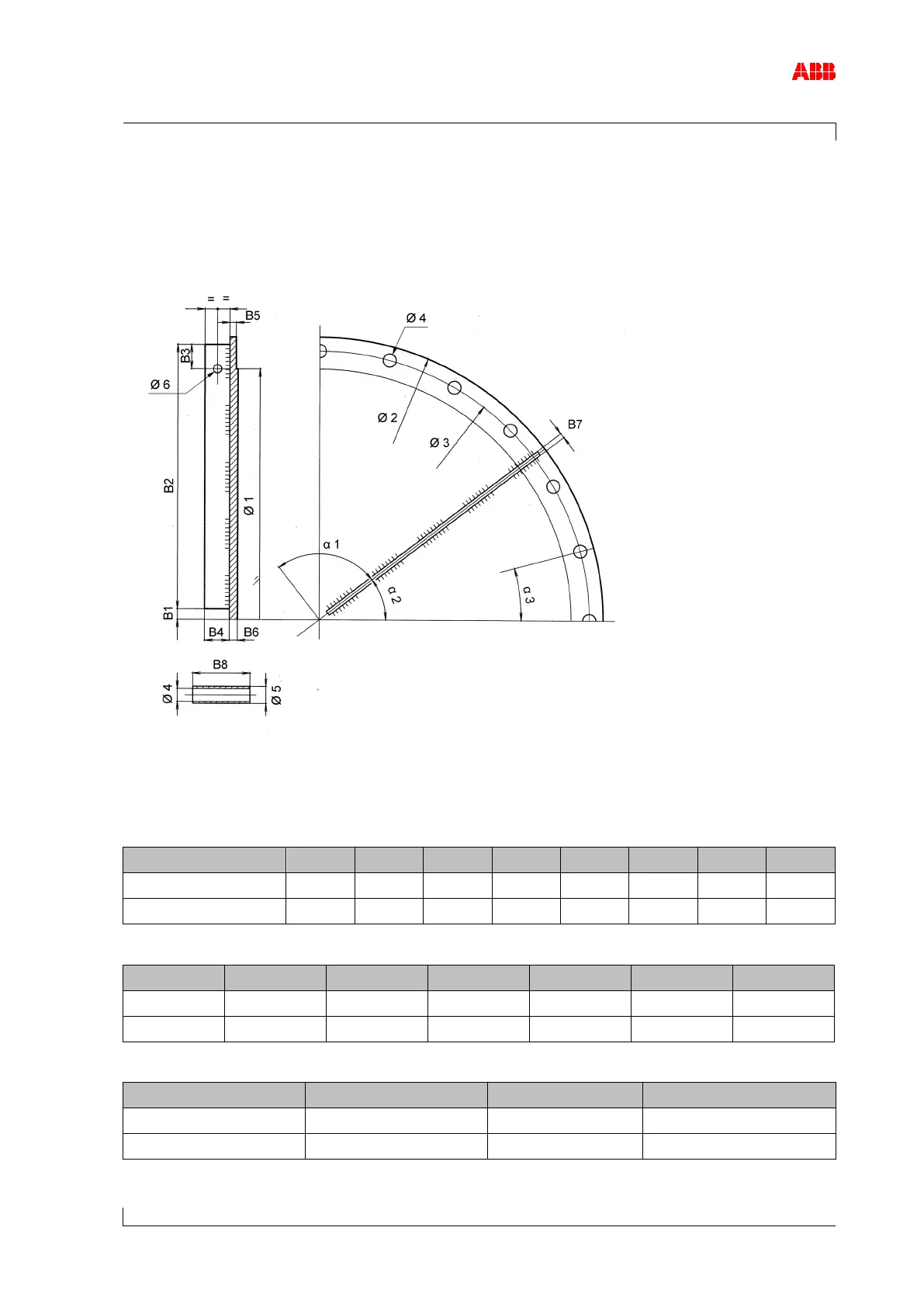

Figure 60: Cover plate dimensions
Cover plate / spacer sleeve dimensions [mm]
Product
B1
B2
B3
B4
B5
B6
B7
B8
A170-M 13 470 50 50 9 12 8 82
A175-M
13
550
50
50
9
12
8
100
Table 45: Cover plate dimensions 1
Product
Ø 1
Ø 2
Ø 3
Ø 4
Ø 5
Ø 6
A170-M 915 990 950 20 28 20
A175-M 1045 1165 1117 24 32 20
Table 46: Cover plate dimensions 2
Product
⍺ 1
⍺ 2
⍺ 3
A170-M
4 x 90°
37.5°
24 x 15°
A175-M 4 x 90° 37.5° 24 x 15°
Table 47: Cover plate dimensions 3
