Tightening sequence

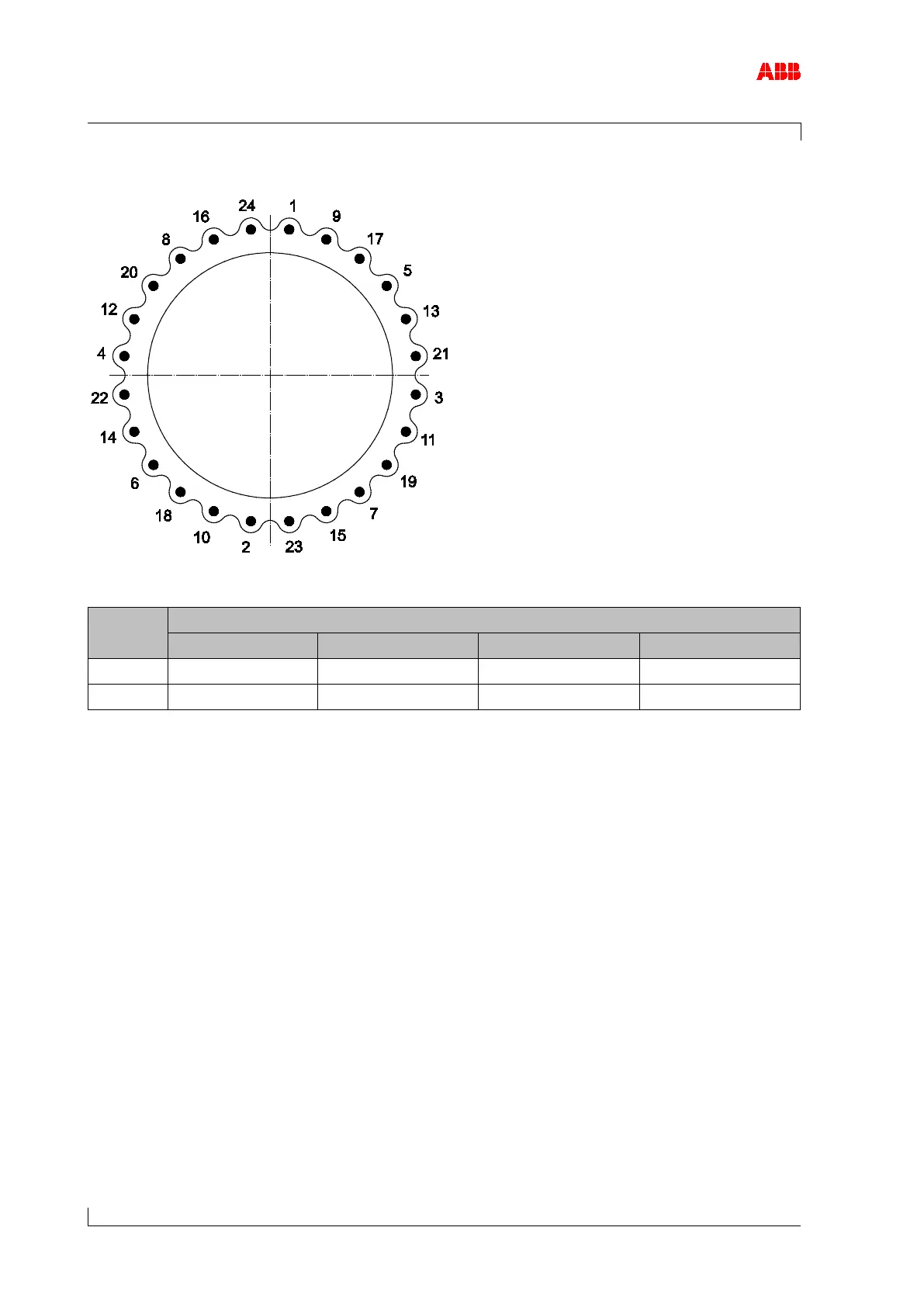

Figure 58: Flange tightening sequence
Product
Tightening torque (61009) [Nm]
Step 1
Step 2
Step 3
Step 4
A170-M hand-tight 80 170 280
A175-M
hand-tight
100
240
380
Table 43: Tightening torques 61009
