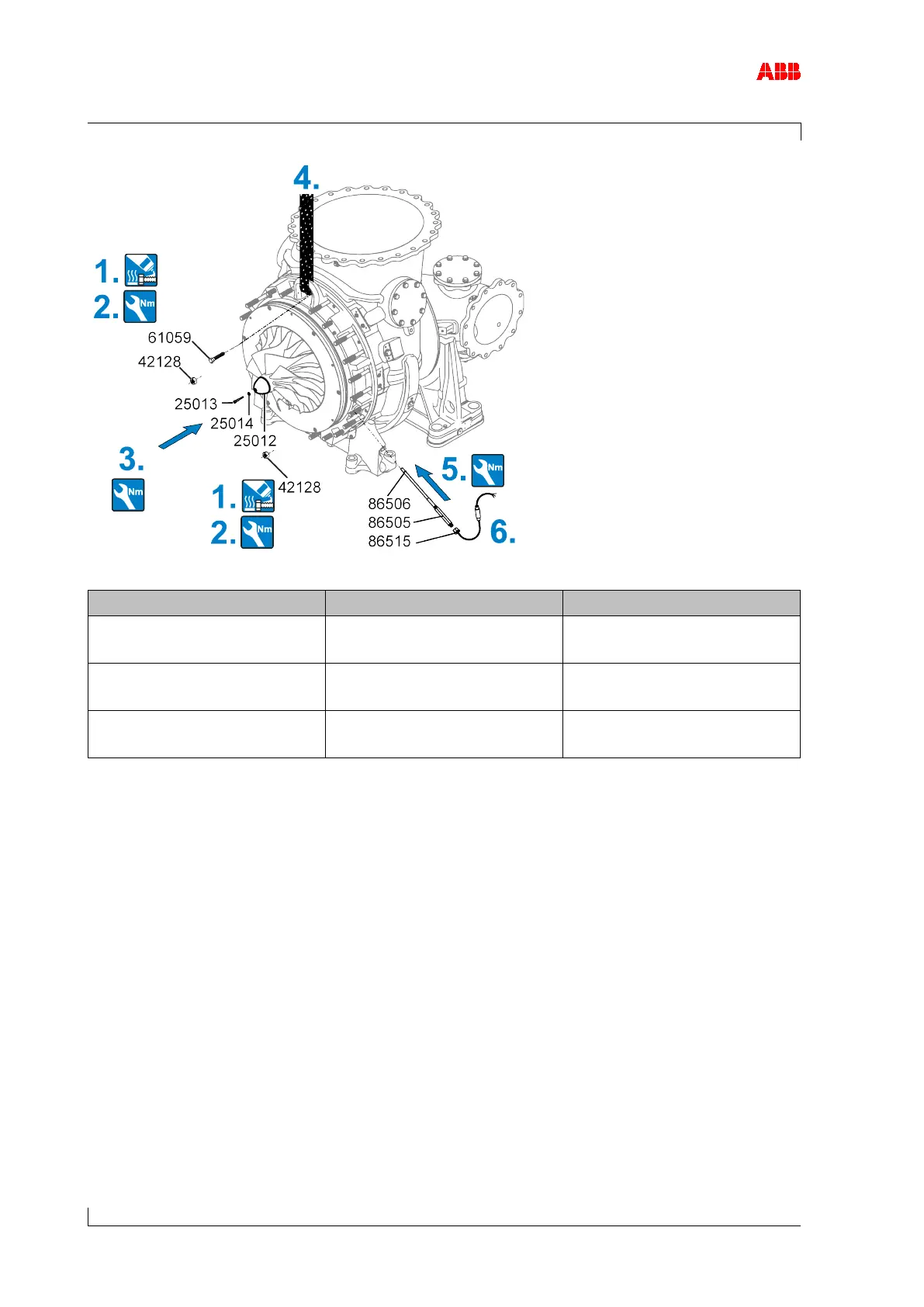

Figure 48: Installing the cartridge group 2
Part number
A170-M
A175-M
61059 / 42128 M22
415 Nm
M24
490 Nm
86505 M18x1.5
150 Nm
M18x1.5
150 Nm
25013 M8
20 Nm
M10
40 Nm
Table 36: Tightening torque (61059 / 42128 / 86505 / 25013)
1. Coat thread of screw (61059) and two bolts for the nuts (42128) with high-temperature
grease.
2. Secure cartridge group with screw (61059) and nuts (42128).
3. Fit spinner nose cone (25012) with screw (25013) and washer (25014) and tighten.
4. Remove the lifting gear.
5. Screw in and tighten speed sensor (86505) with new O-ring (86506).
6. Insert cable connector (86515).
