ABB HT568964 - Layout and Function of the Turbocharger

Operation Manual / 4 Product description / A100-M axial
1
Introduc
tion Page 4 /
113
© Copyright 2016 ABB. All rights reserved.
HZTL4033_EN
Revision A
July 2016
1.4 Layout and function of the turbocharger

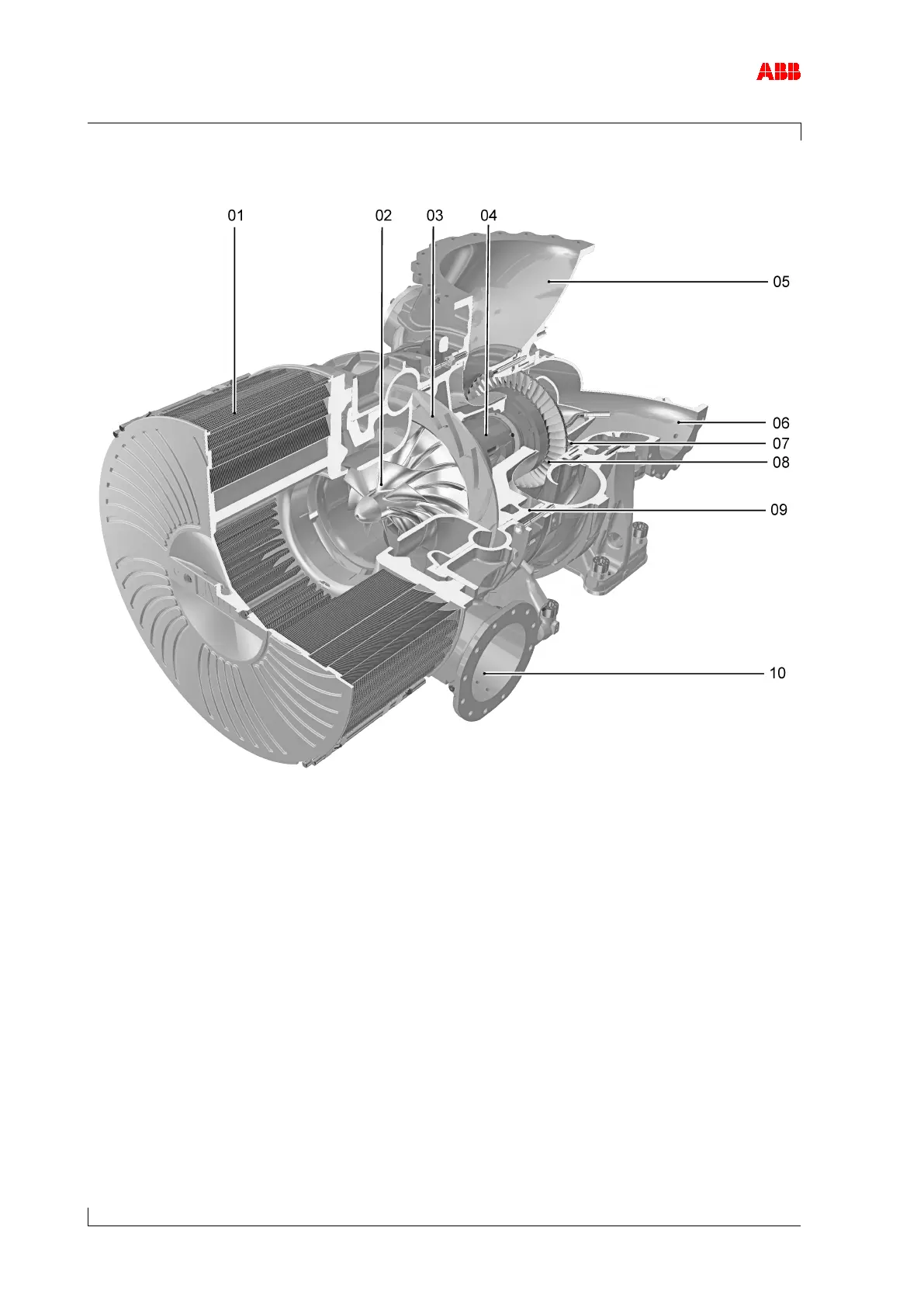

Figure 1: Layout and function
01 Filter silencer / air suction branch 06 Gas inlet casing
02 Compressor wheel 07 Nozzle ring
03 Diffuser 08 Turbine
04 Bearing bush 09 Bearing casing
05 Gas outlet casing 10 Compressor casing
