8.2 Weights of assemblies
The specified weights of the individual parts or assemblies are rounded-up standard values.

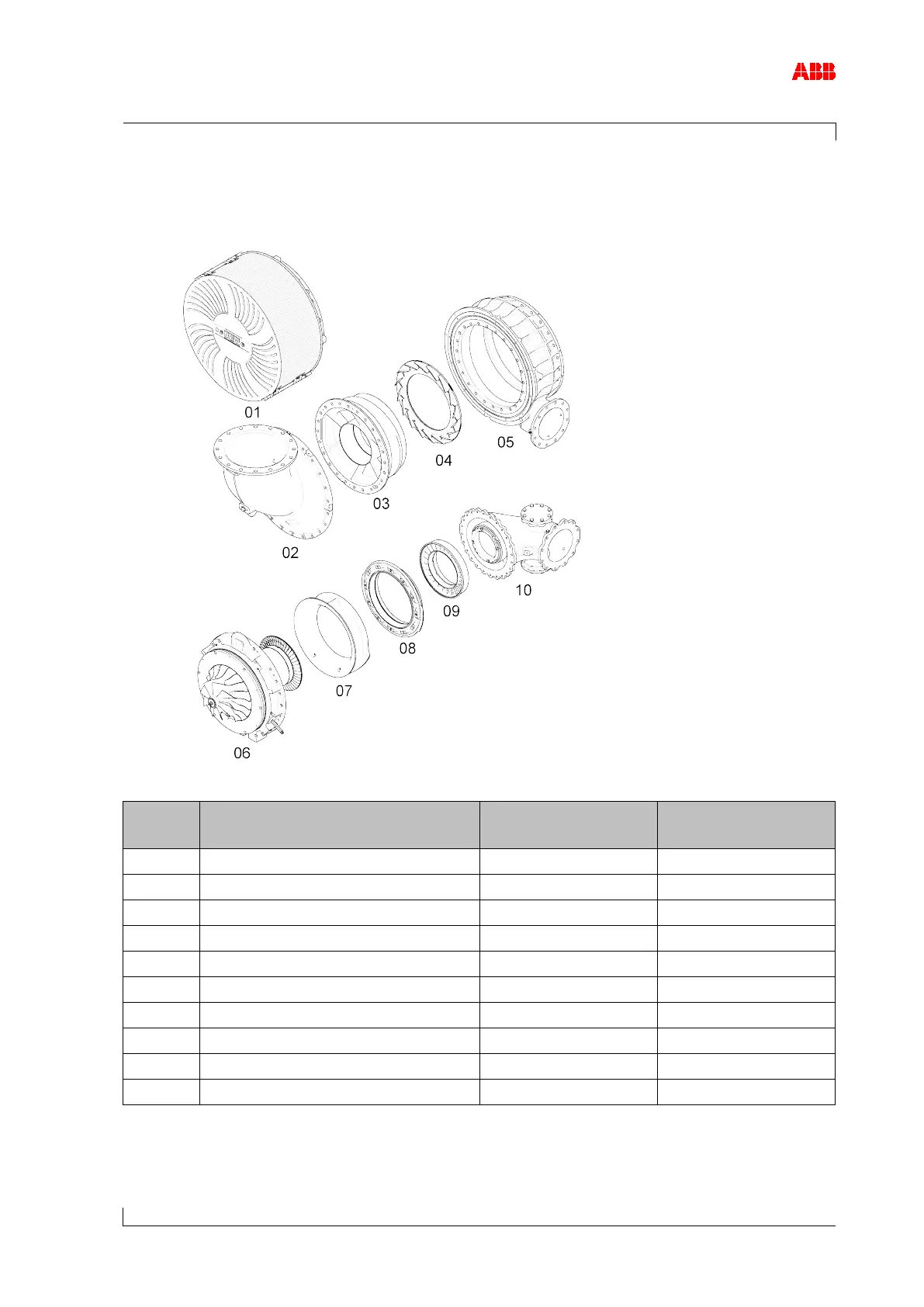

Figure 25: Assemblies
Position
Component
A170-M
[kg]
A175-M
[kg]
01 Filter silencer 260 400
02 Radial air suction branch 120 170
03 Wall insert 210 320
04 Diffuser 30 45
05 Compressor casing 430 620
06 Cartridge group 750 1100
07 Turbine diffuser 80 130
08 Cover ring 40 60
09 Nozzle ring 17 25
10 Gas inlet casing, radial 170 230
Table 29: Assembly weights
