2.3 Installing the turbocharger
2.3.1 Steps for fastening the turbocharger with clamping nuts
WARNING
Risk of tipping
If the turbocharger is not sufficiently supported or not supported at all during
removal and installation, it may tip over and cause severe injury to personnel
or accidents resulting in fatalities.
 Support the turbocharger at a suitable location.
 Secure with lifting gear wherever possible.
Wear safety helmet.

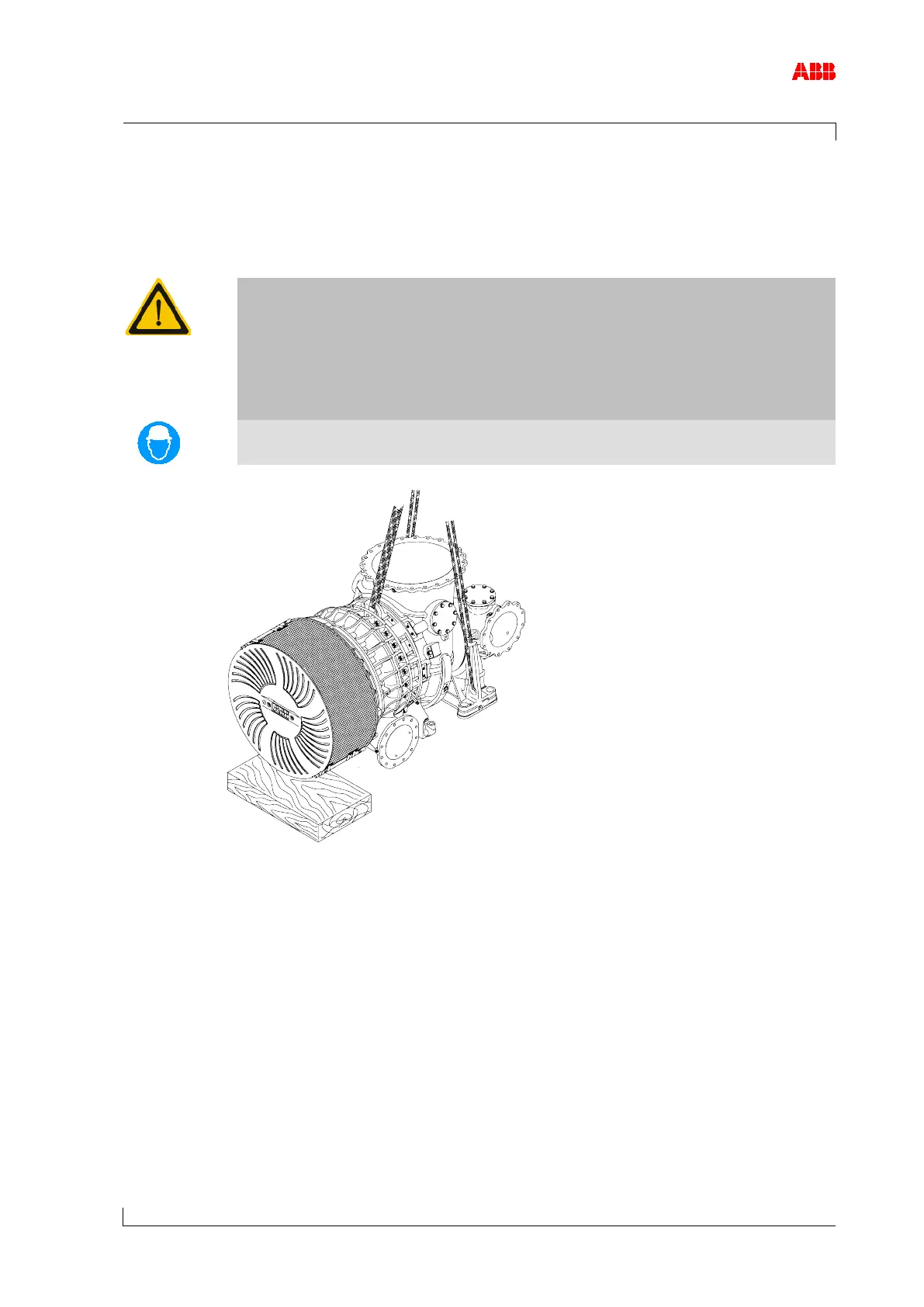

Figure 9: Turbocharger suspension points
 If present: Remove insulation segment on the bearing casing.
 Attach lifting gear to the suspension lug of the bearing casing and the turbine-end foot.
 Remove the covers from the oil connections.
 Align turbocharger and place on bracket.
