2.2 Removing the turbocharger
If the turbocharger is not sufficiently supported or not supported at all during
removal and installation, it may tip over and cause severe injury to personnel
or accidents resulting in fatalities.
Support the turbocharger at a suitable location.
Secure with lifting gear wherever possible.
Wear safety helmet.
If present: Loosen cable to speed sensor.
Disconnect all gas, air and lubricating oil pipes.

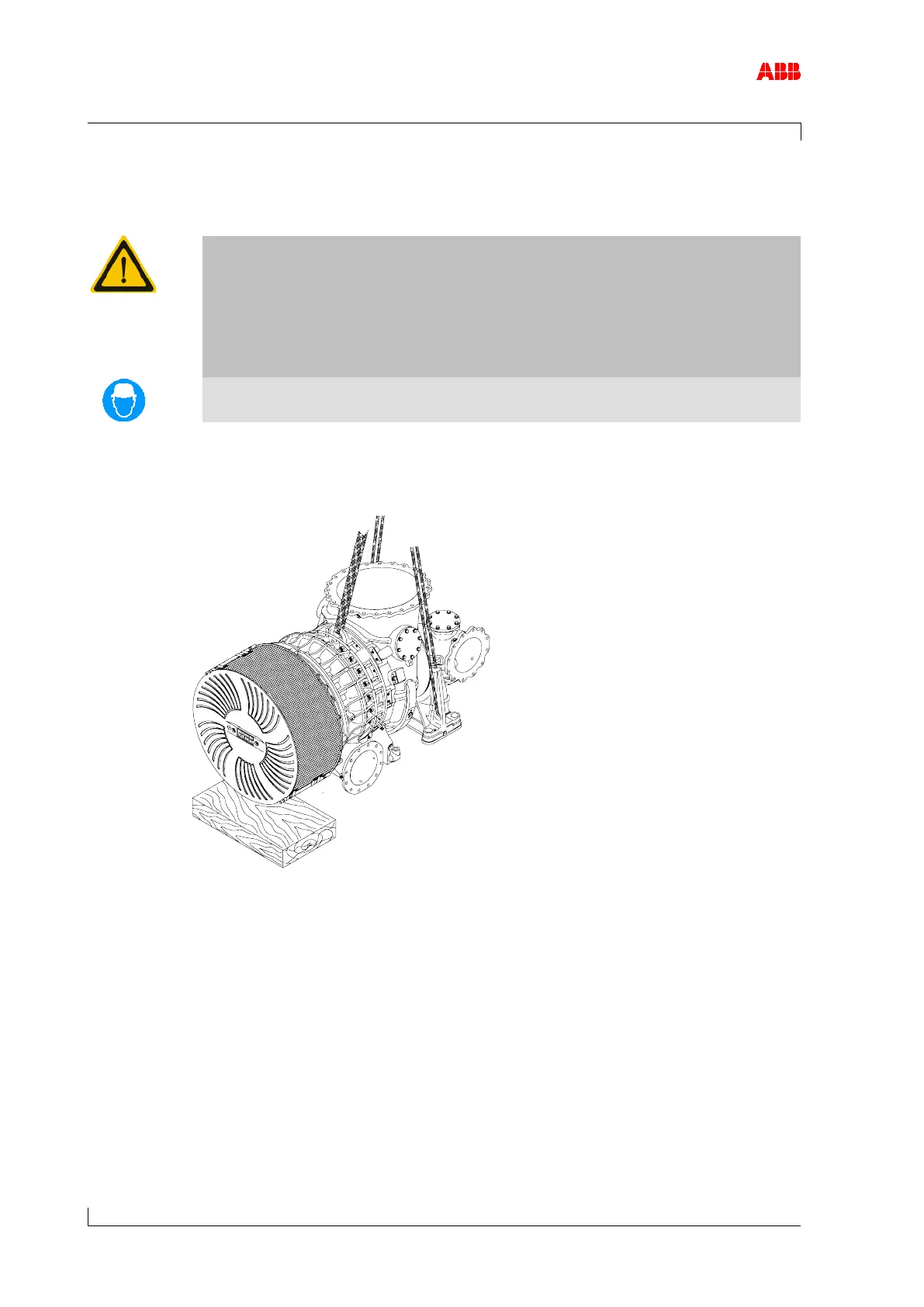

Figure 6: Turbocharger suspension points
If present: Remove insulation segments on bearing casing and feet.
Attach lifting gear to the suspension lug of the bearing casing and through the boles on the
turbine-end foot.
