Operation Manual / 4 Product description / A100-M axial
2
Removal and installation
Page 11 /
113
© Copyright 2016 ABB. All rights reserved.
HZTL4033_EN
Revision A
July 2016
Turbocharger with clamping nuts

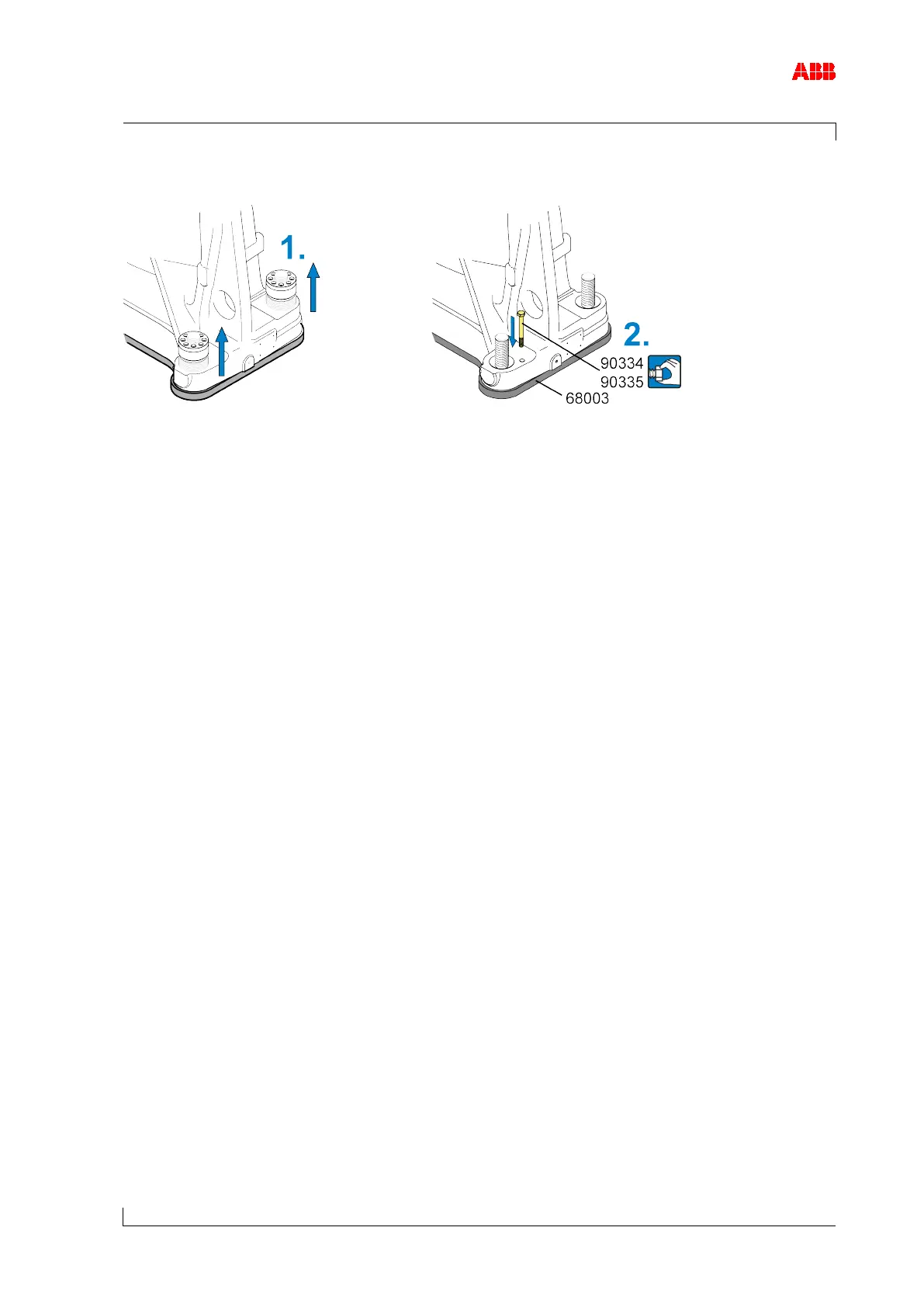

Figure 7: Removing the foot mounting
1. Loosen clamping nuts on compressor-end and turbine-end foot (see Loosening the clamp-
ing nut [➙ 12]).
2. Fit transport screws (90334 / 90335) to secure the sliding block (68003) on the left and
right on the turbine-end foot.
 Lift the turbocharger from the engine and put it down.
 Cover all oil connections.
