8.4 Axial clearance A prior to disassembly
WARNING
Physical hazards due to sharp edges on compressor wheel
The compressor wheel has sharp edges which can result in injury.
 Wear safety gloves.
Wear safety gloves to protect against mechanical hazards.
The axial clearance (A) must be measured prior to removal and after installation of the car-
tridge group.
CAUTION
Clearances outside the tolerance
Serious damage to engines or property can be caused by clearances out-
side the tolerance and excessively worn parts.
 Have the components assessed and, if necessary, replaced by an ABB
Turbocharging Service Station.

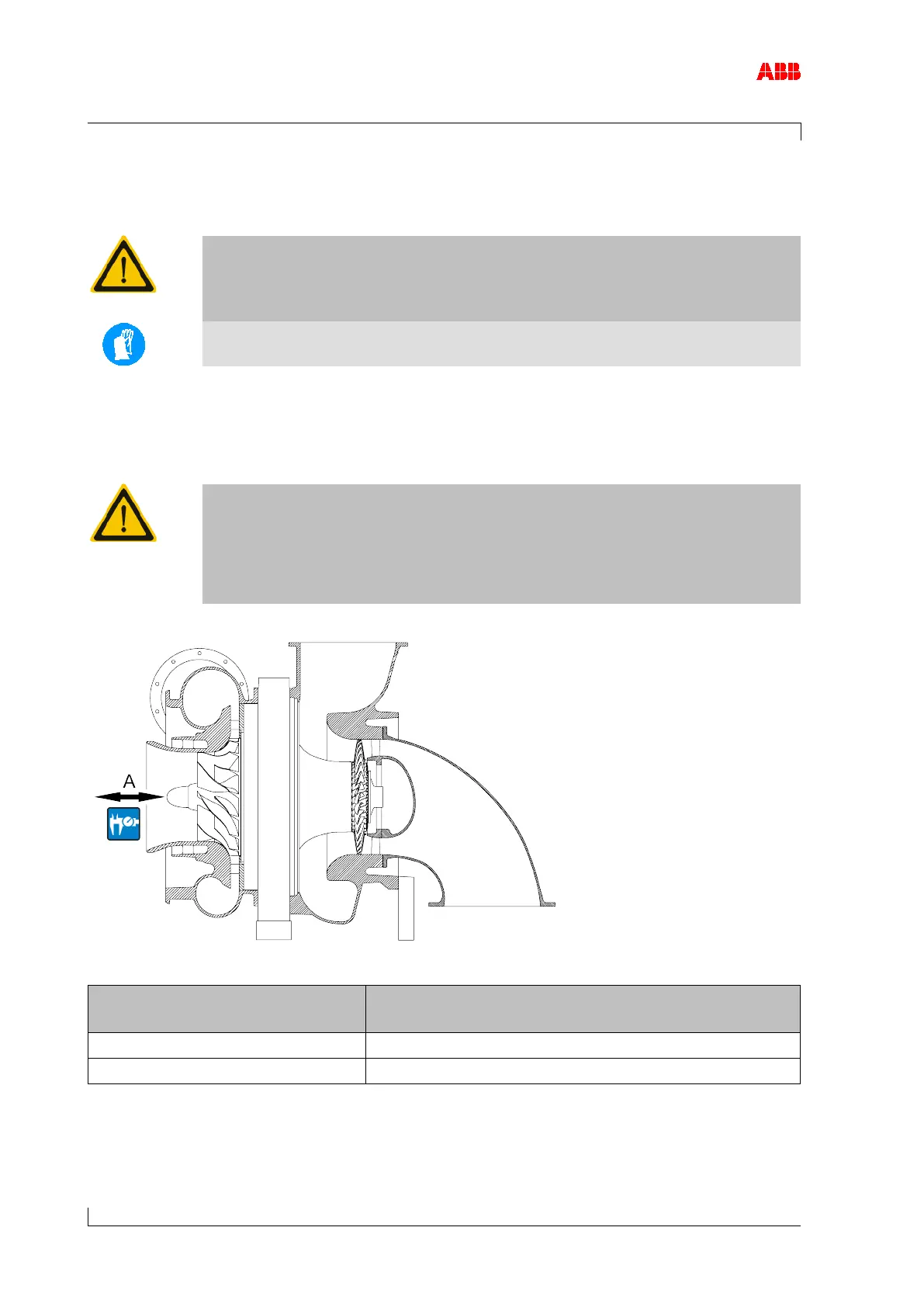

Figure 28: Axial clearance
Product
Axial clearance A
[mm]
A170-M 0.30 ... 0.61
A175-M 0.35 ... 0.69
Table 32: Axial clearance
 Measure and note axial clearance (A).
