Removing auxiliary screws

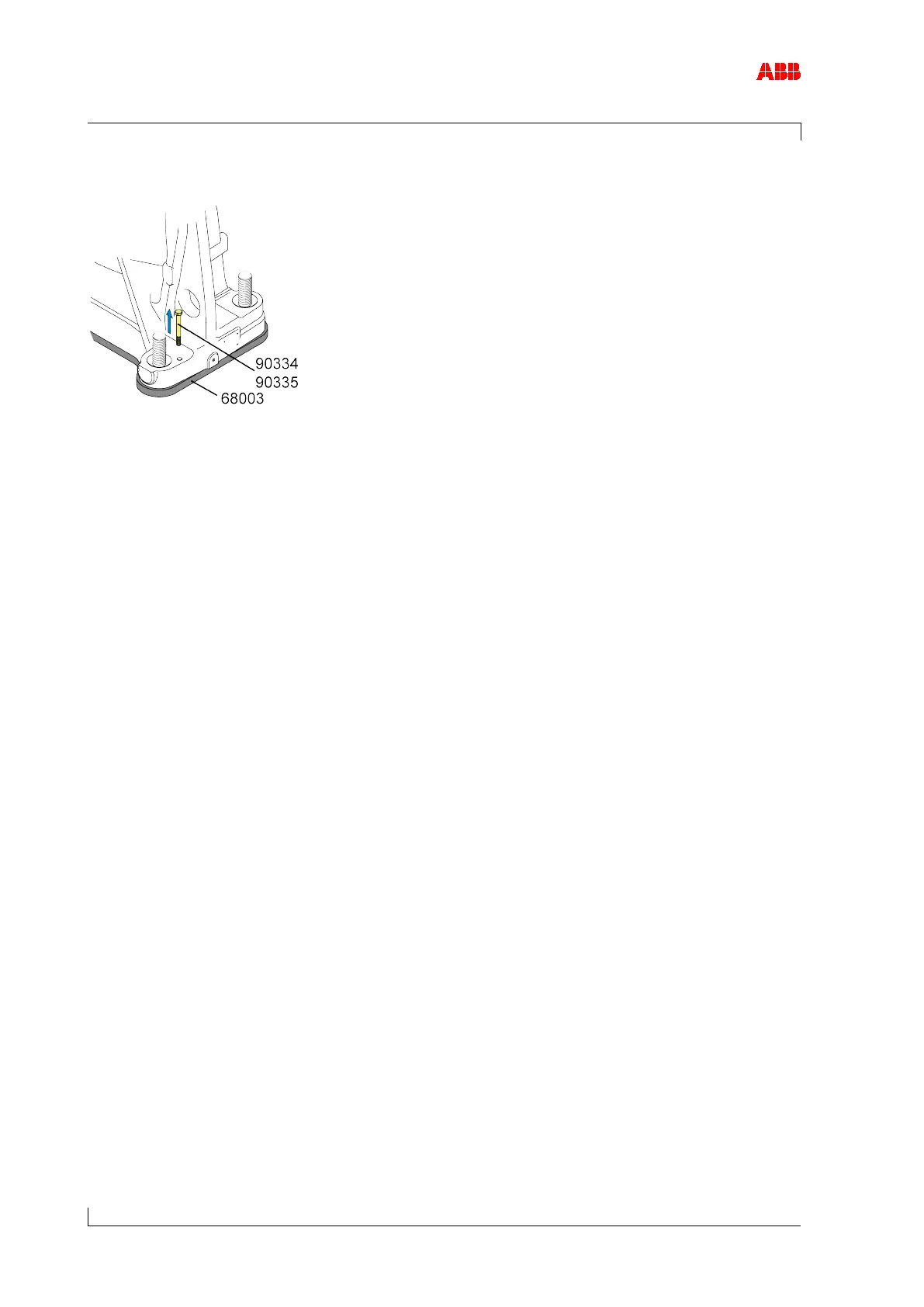

Figure 10: Removing auxiliary screw
Remove shipping screws (90334 / 90335) on the left and right side of the foot and place in
the toolbox.
The turbocharger is delivered with a pre-installed sliding block (68003). The shipping screws
secure the sliding block in the preset position. In operation, the foot can slip due to thermal
expansion.
Tighten clamping nuts as described in the following sections.
Connect all gas, air and oil pipes.
If present: Re-fit the insulation segments.
If present: Connect cable to speed sensor.
