Taking a turbocharger out of operation
Page 98 /
© Copyright 2016 ABB. All rights reserved.

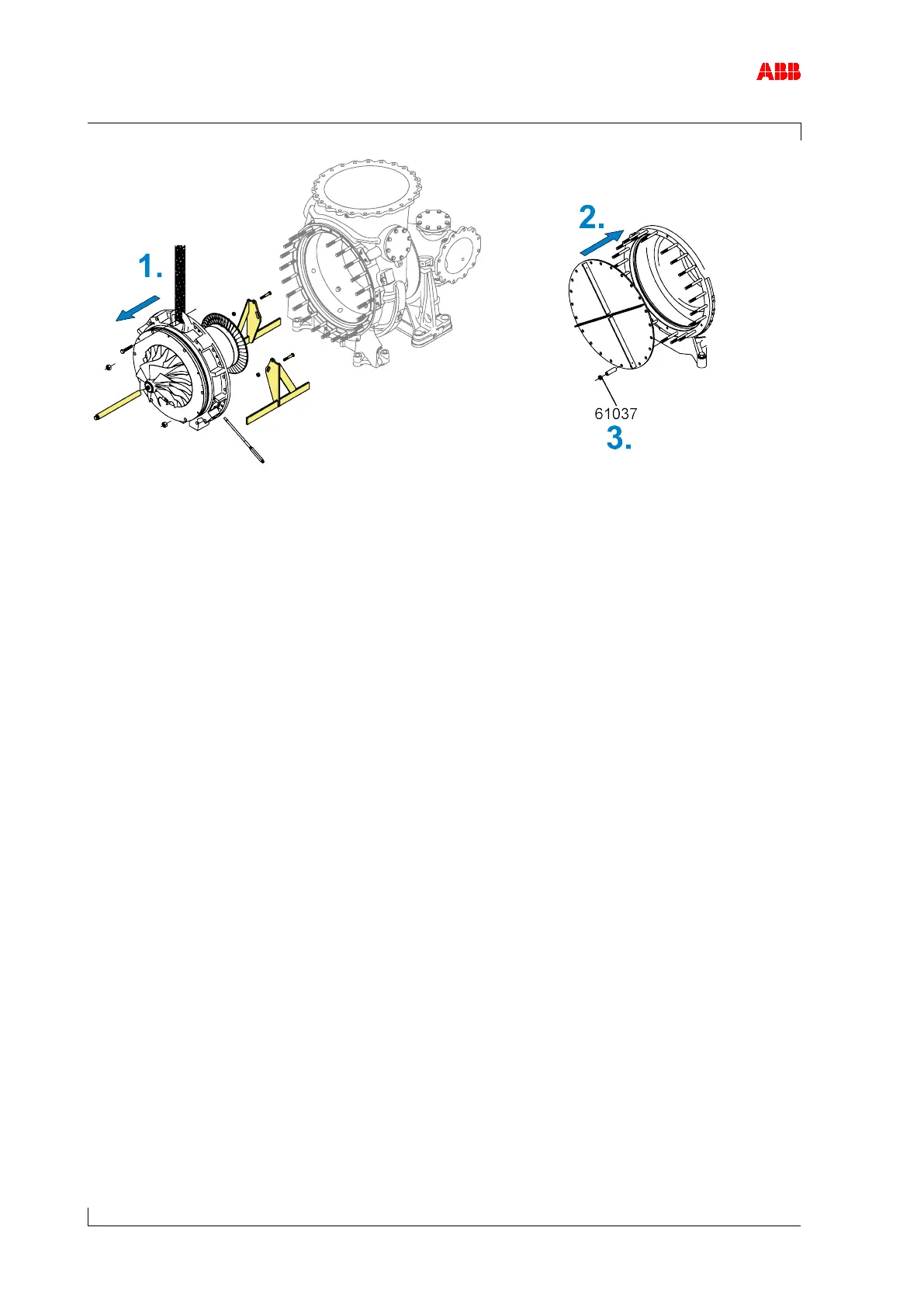

Figure 61: Fitting the cover plate
1. Remove the cartridge group (see chapter Disassembly and assembly / Removing the car-
tridge group [➙ 67]).
2. Close the opening in the gas outlet casing with the cover plate.
3. Attach cover plate with spacer sleeves and nuts (61037).
Close the lubricating oil supply to the turbocharger.
9.3.1 Further measures and information for the operation of 4-stroke engines
with a cover plate of the turbocharger
4-stroke engine with a turbocharger
No further measures are necessary. The engine can be operated as a suction engine accord-
ing to the instructions of the enginebuilder.
4-stroke engine with several turbochargers
Separate receivers
In engines with separate air and exhaust gas receivers, no further measures are necessary.
The engine can be operated as a suction engine according to the instructions of the en-
ginebuilder.
