Operation Manual / 4 Product description / A100-M axial
sassembly and assembly Page 82 /
© Copyright 2016 ABB. All rights reserved.
Turning and moving in wall insert

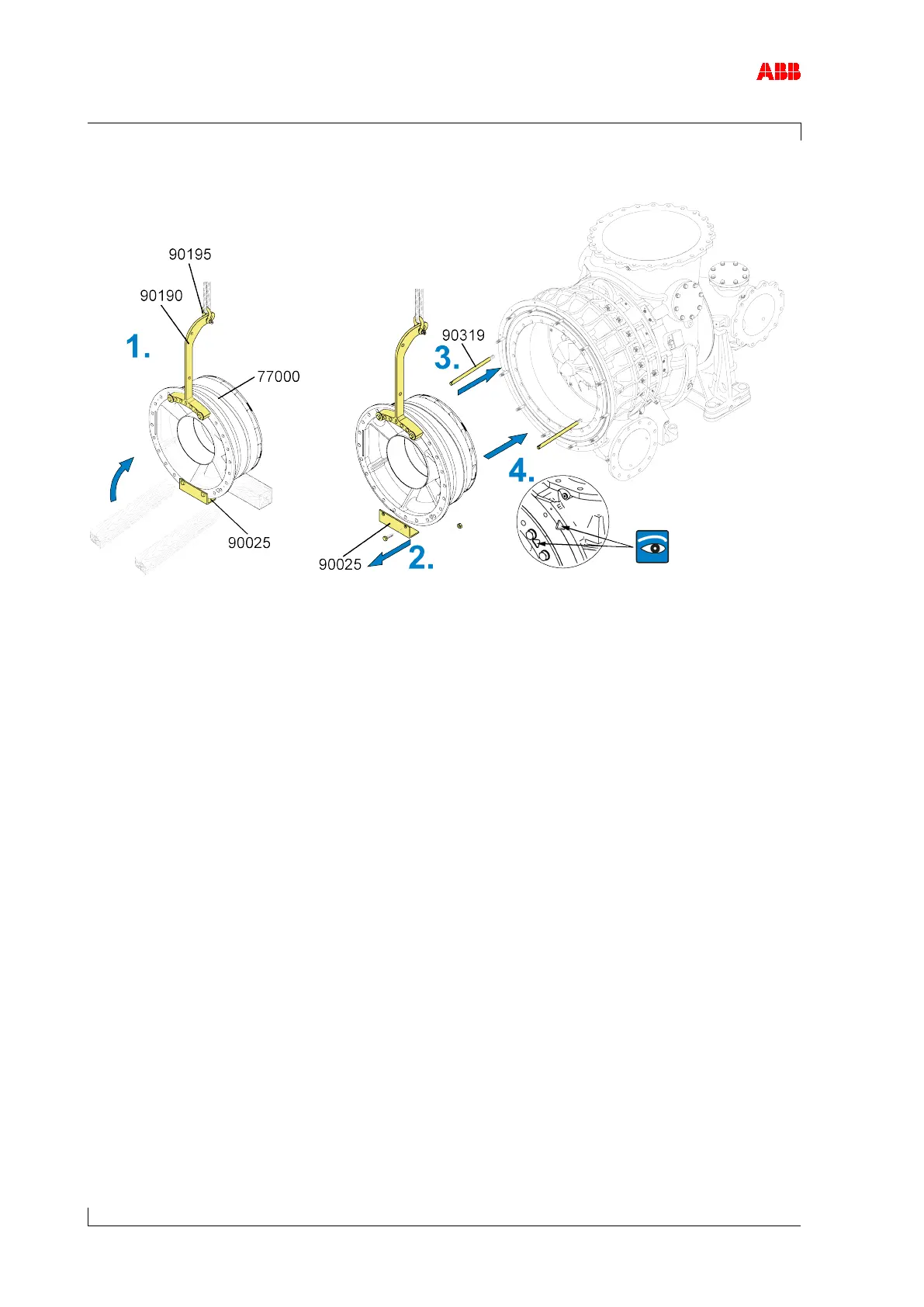

Figure 51: Turning and moving in wall insert
1. Fasten lifting device (90190 / 90195) to front of flange.
Carefully turn wall insert (77000) with fitted diffuser over the support angle (90025) and pull
up vertically.
2. Remove support angle (90025), bolts and nuts.
3. Fit guide studs (90319).
4. Carefully install the wall insert (77000) in the compressor casing. Make sure both markings
are in the correct position.
