Operation Manual / 4 Product description / A100-M axial
sassembly and assembly Page 86 /
© Copyright 2016 ABB. All rights reserved.

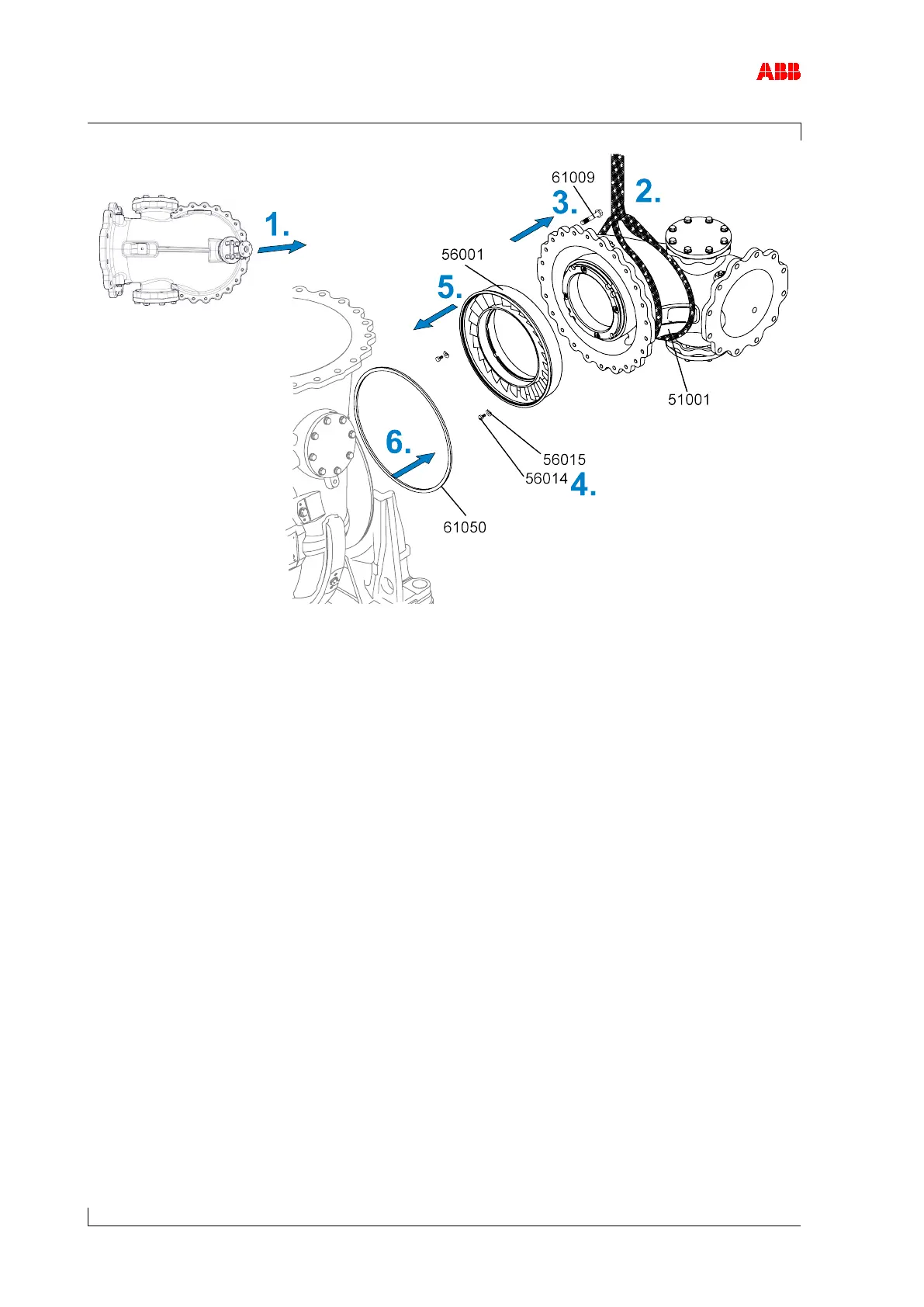

Figure 54: Removing the nozzle ring at the turbine end
1. If present: Remove connecting pipe for turbine cleaning.
2. Loop around gas inlet casing (51001) and secure with lifting gear.
3. Loosen screws (61009) and move out gas inlet casing with nozzle ring.
4. Bend open locking washers (56015), undo and remove screws (56014).
5. Pull out nozzle ring (56001).
6. Remove spiral-wound gasket (61050) and provide new one.
