Operation Manual / 4 Product description / A100-M axial
2
Removal and installation
Page 16 /
113
© Copyright 2016 ABB. All rights reserved.
HZTL4033_EN
Revision A
July 2016
Fixing clamping nuts

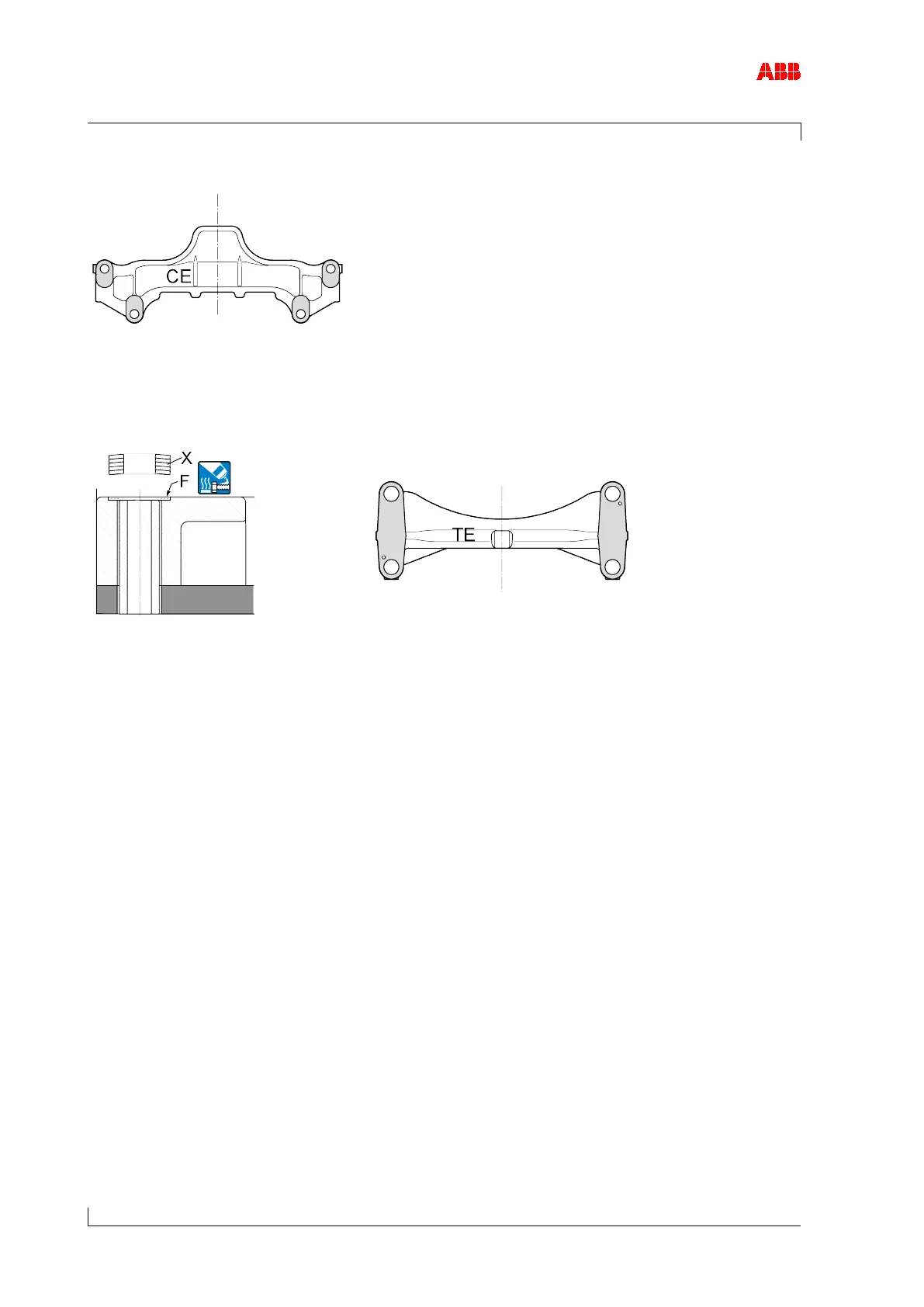

Figure 13: CE foot contact surface
 Tighten clamping nuts on compressor end (CE) (see Tightening the clamping nut [➙ 17]).
Figure 14: TE foot: Handling of cup spring contact surface / foot contact surface
 Coat the contact surface (F) for the cup springs (X) (see Table 3) at the foot of the turbine
end (TE) with high-temperature grease.
 Tighten clamping nuts on turbine end (TE) (see Tightening the clamping nut [➙ 17]).
