Press tool premounting bearing

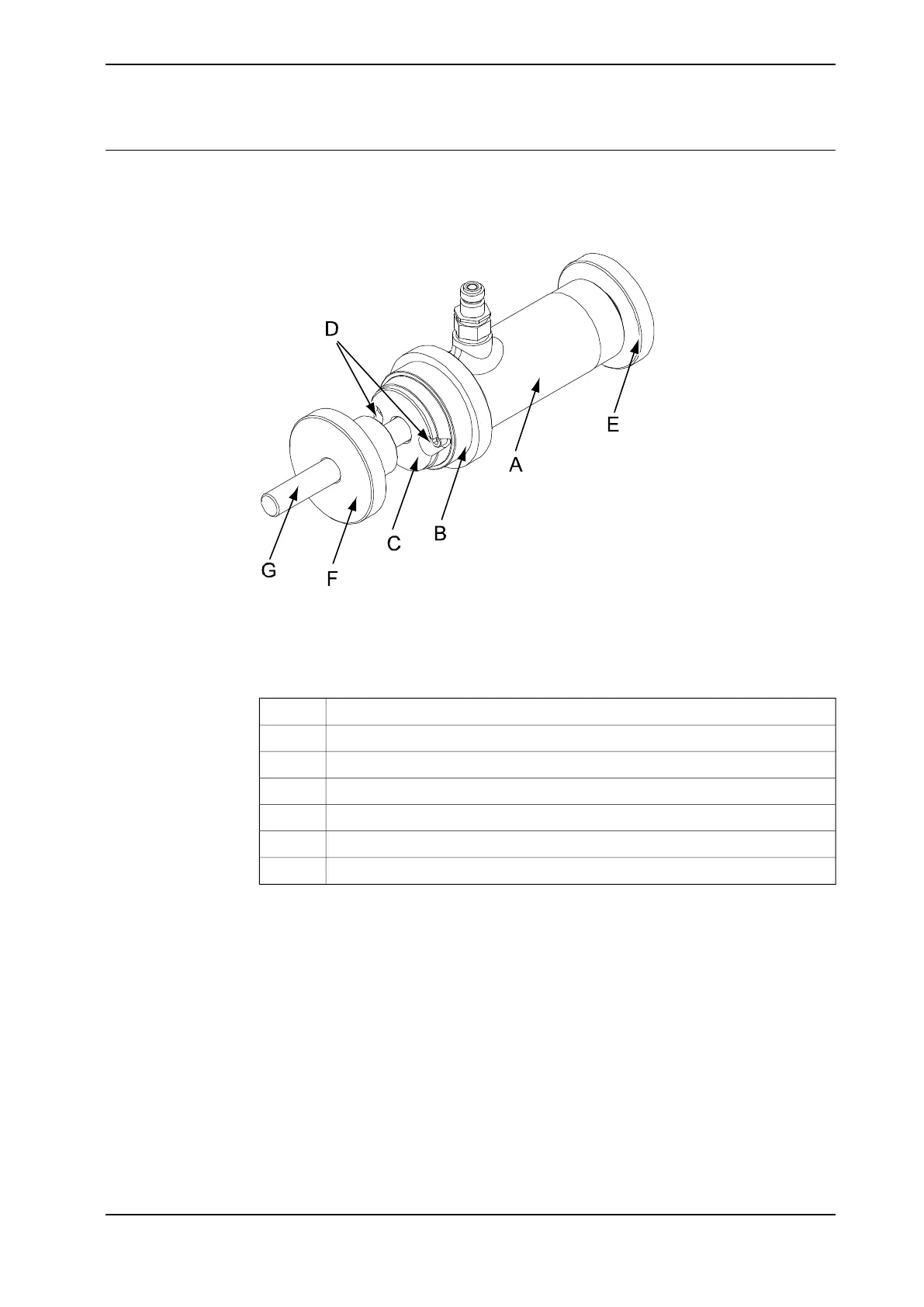

The press tool for premounting the bearing race, bearing complete, radial seal with
dustlip and ring in the tilthouse, is assembled with the parts shown in the figure
below.
xx0600002750
¤
Note! The parts cannot be ordered separatly, but are inluded when ordering the
complete tool. The article numbers are given only for identification.
Hydraulic cylinder, 3HAC 11731-1A
Mounting washer, 3HAC 023075-004B
Bushing, 3HAC 023075-006C
Screw M6x25, 2 pcs (MC6S)D
Threaded washer, 3HAC 5507-1E
Press washer, 3HAC 023075-002F
Threaded bar, M16 L = 300 mmG
