Press tool mounting axis 6

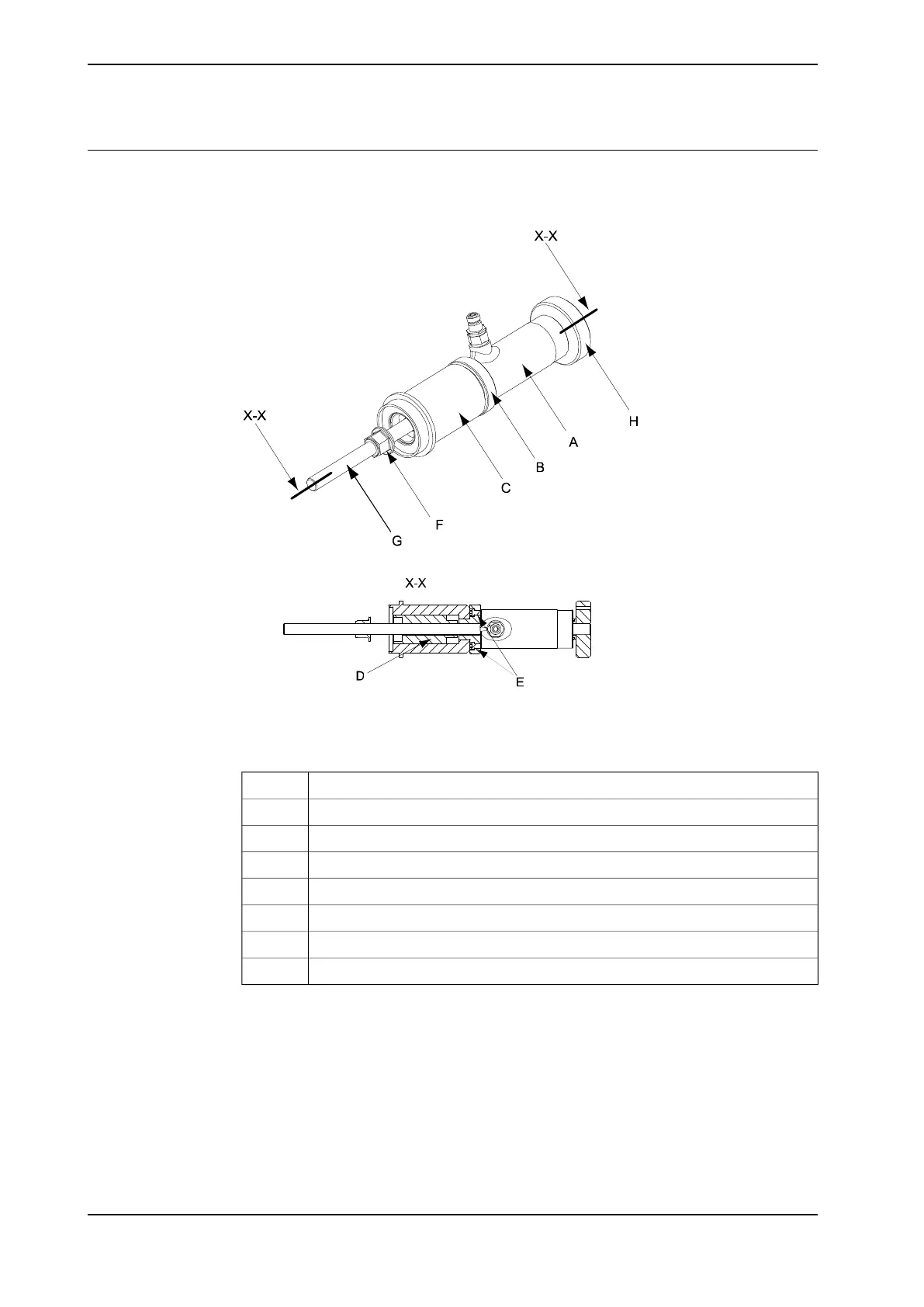

The press tool for mounting the tilthouse on the upper arm, is assembled with the
parts shown in the figure below.
xx0600002751
Note! The parts cannot be ordered separatly, but are included when ordering the
complete tool. The article numbers are given only for identification.
Hydraulic cylinder, 3HAC 11731-1A
Distance, 3HAC 023062-001B
Press housing, 3HAC 023080-004C
Support housing, 3HAC 023080-003D
Screw M6x14, 2pcs (MC6S)E
Flange lock nut, M16F
Threaded bar, M16 L=435 mmG
Nut M16H
Continues on next page
180 Product manual - IRB 660
3HAC025755-001 Revision: W
© Copyright 2006-2020 ABB. All rights reserved.
4 Repair
4.4.2 Replacement of tilthouse unit
Continued
