NoteAction
Art.no. is specified in Required equip-
ment on page 178.
Apply the press tool, mounting axis 6 in the
following way:
• Push the threaded bar M16 through the
holes in the shafts.
• Apply the washer and the nut on the right
side of the right shaft.
• Put the distance ring on the bar on the
left side of the shaft
• Apply the hydraulic pump on the bar
• Secure the hydraulic pump with a nut.
Remove the shaft with the press tool, mounting
axis 6.
Note
A longer threaded bar M16 is needed when re-
moving the shaft than the one specified when
fitting.

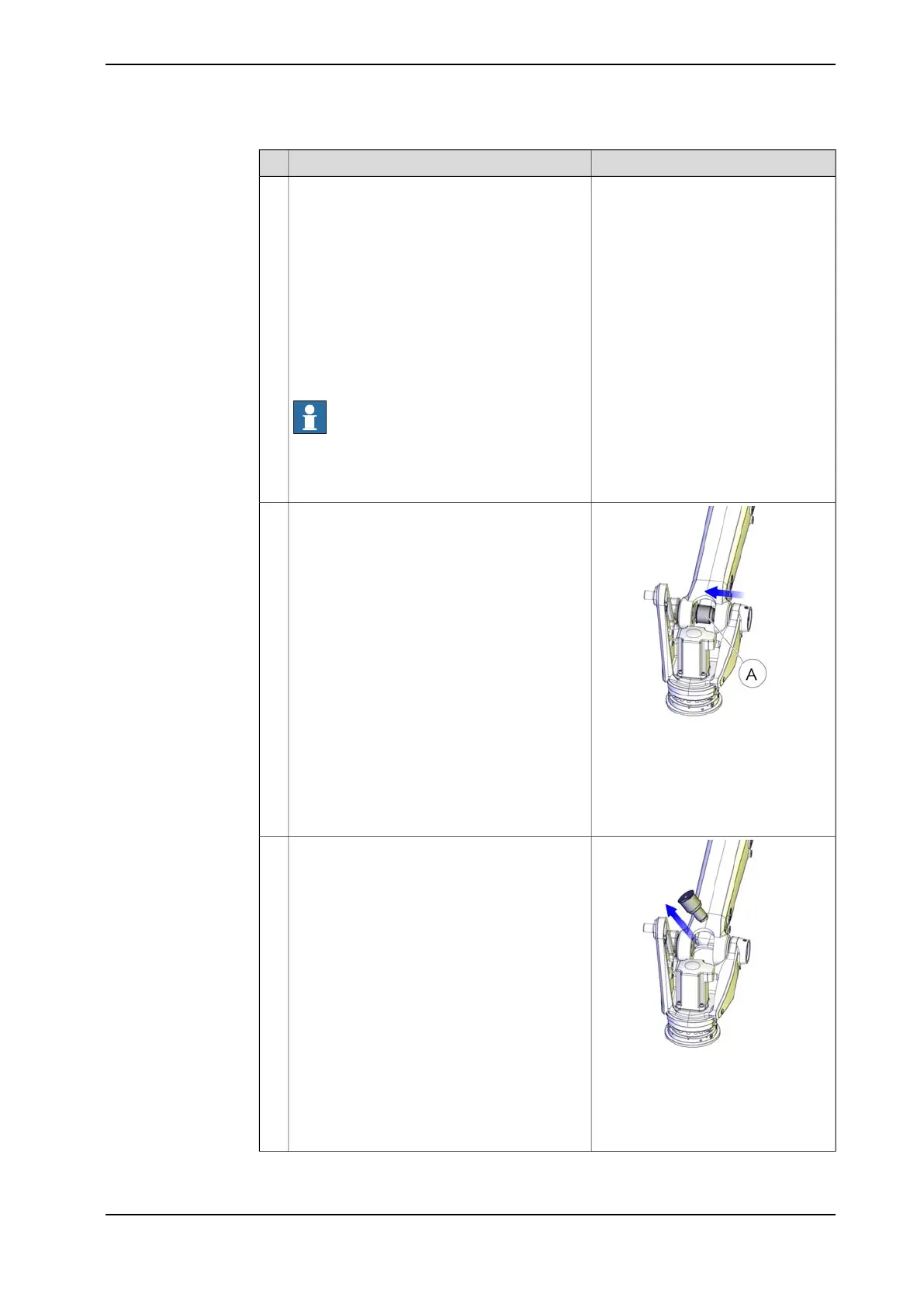

14
xx1000001075
A Shaft
Press out the shaft.15
xx1000001076
Remove the press tool, mounting axis 6 and
the shaft.
16
Continues on next page
Product manual - IRB 660 185
3HAC025755-001 Revision: W
© Copyright 2006-2020 ABB. All rights reserved.
4 Repair
4.4.2 Replacement of tilthouse unit
