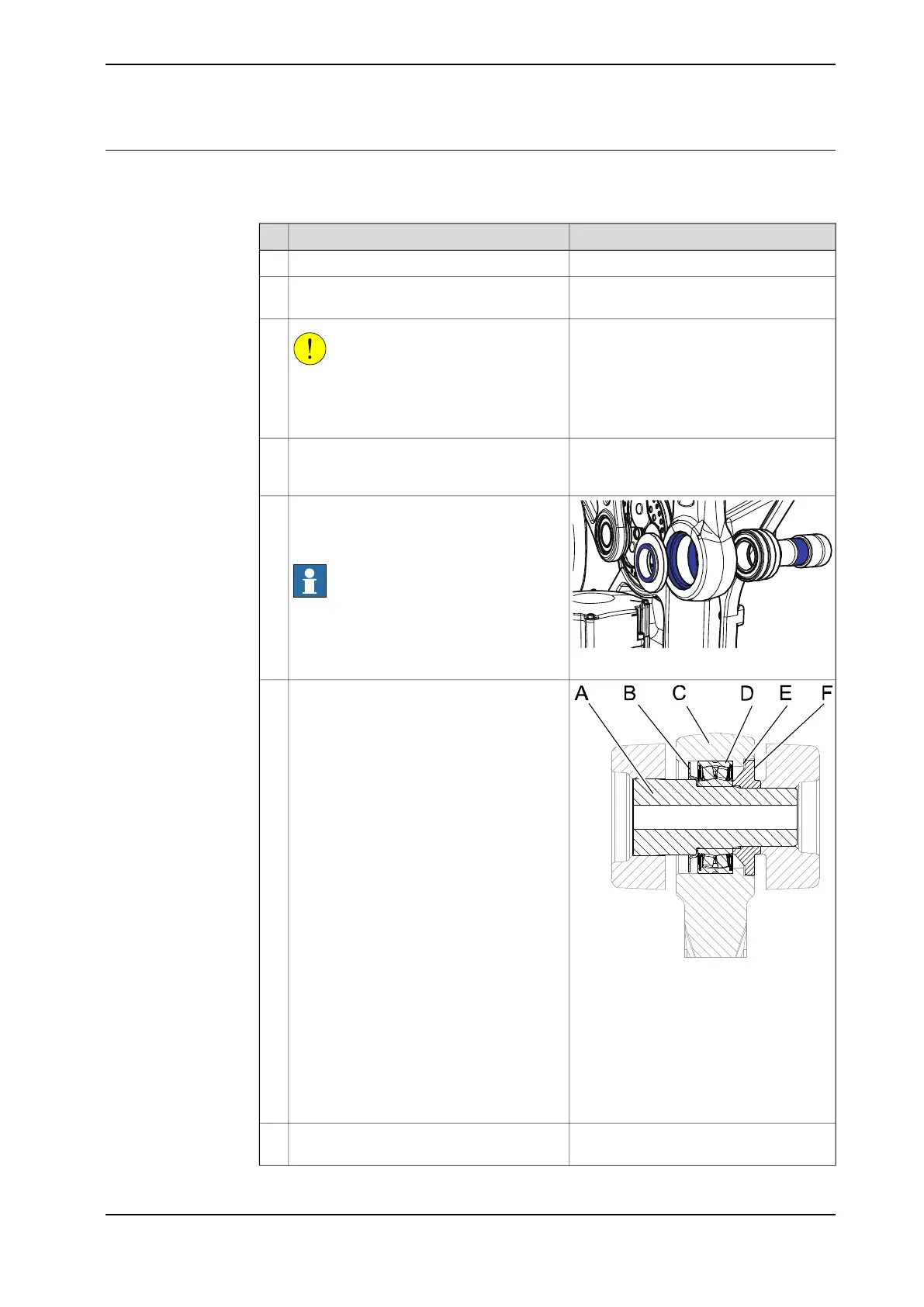

Refitting, parallel rod
Use this procedure to refit the parallel rod. The procedure is the same in both ends
of the parallel rod.
NoteAction
Start by refitting the lower end.1
Verify that the bearings are in correct posi-
tion in the parallel rod.
2
CAUTION
The parallel rod weighs .
All lifting accessories used must be sized
accordingly!
3
Lift the parallel rod to the mounting position
of the lower end, and let it rest on the the
frame and base.
4
xx1400001126
Foundry Plus:
Apply rust preventive on the highlighted
areas.
Note
Rust preventive should be applied in both
ends of the parallel rod.
5
xx0700000065
Parts:
A Shaft
B Cover washer
C Parallel rod
D Sealed spherical bearing
E Bearing grease
F Thrust washer
Put the thrust washer (F) on the axis 2 side
of the parallel rod (C).
6
See figure above!Put the cover washer (B) on the axis 3 side
of the parallel rod.
7
Continues on next page
Product manual - IRB 660 219
3HAC025755-001 Revision: W
© Copyright 2006-2020 ABB. All rights reserved.
4 Repair
4.4.7 Replacing the parallel rod
Continued
