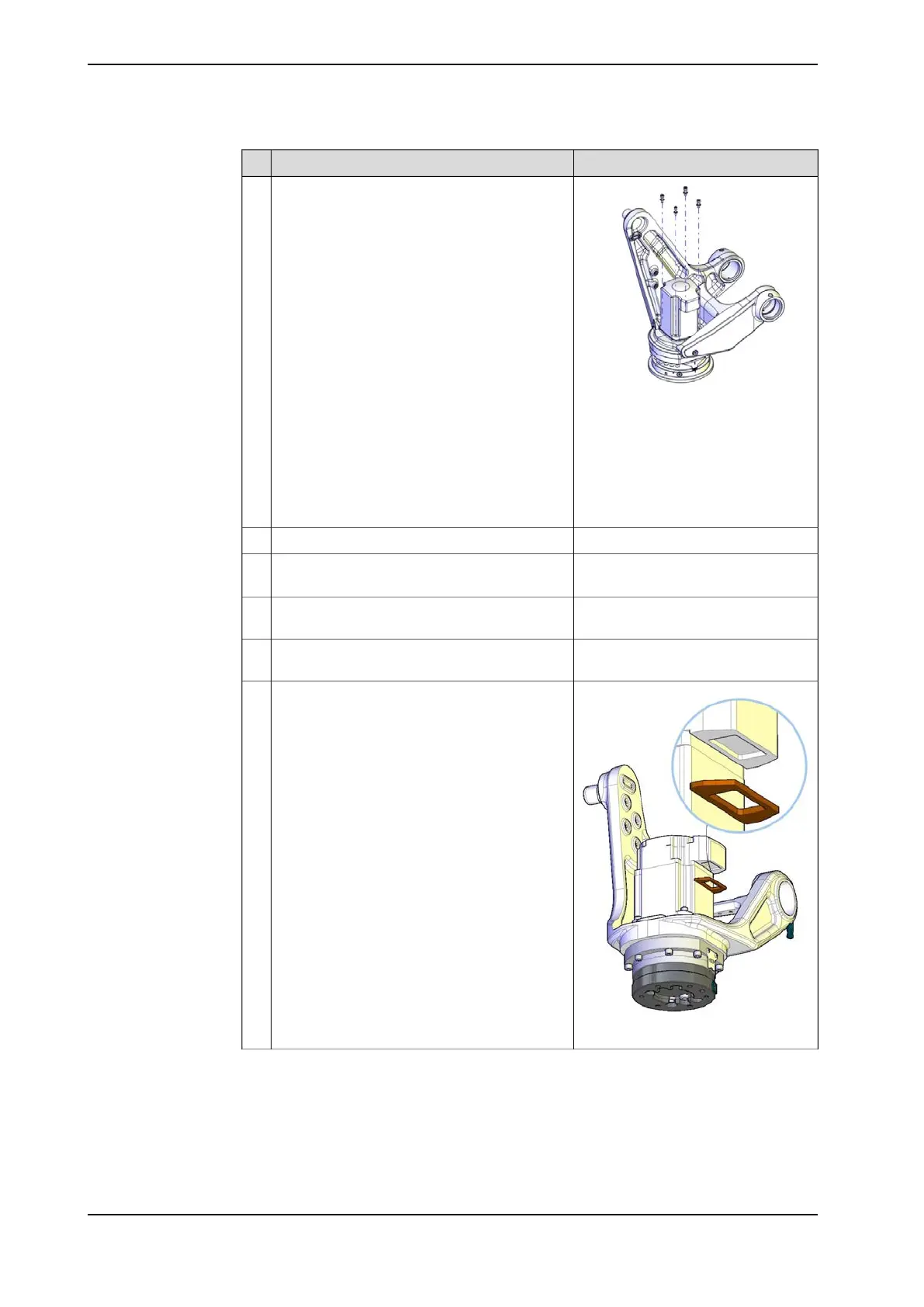

Secure the motor with its four attachment
screws and washers.
Reused screws may be used, providing they
are lubricated as detailed in section Screw joints
on page 343 before fitting.
7
Washers:
• 8.4x16x1.6 quality Steel-A2F
Attachment screws:
• M10 x 40 quality 8.8-A2F
Tightening torque:
• 50 Nm
Disconnect the brake release voltage.8
See section Performing a leak-down
test on page 142.
Perform a leak-down test of the axis 6 gearbox.9
Connect in accordance with markings
on connectors.
Reconnect all connectors in motor axis 6.10
Refit the connections to the UL lamp, if the ro-
bot is equipped with one.
11
xx1000001224
Check the gasket. If damaged, replace it.12
