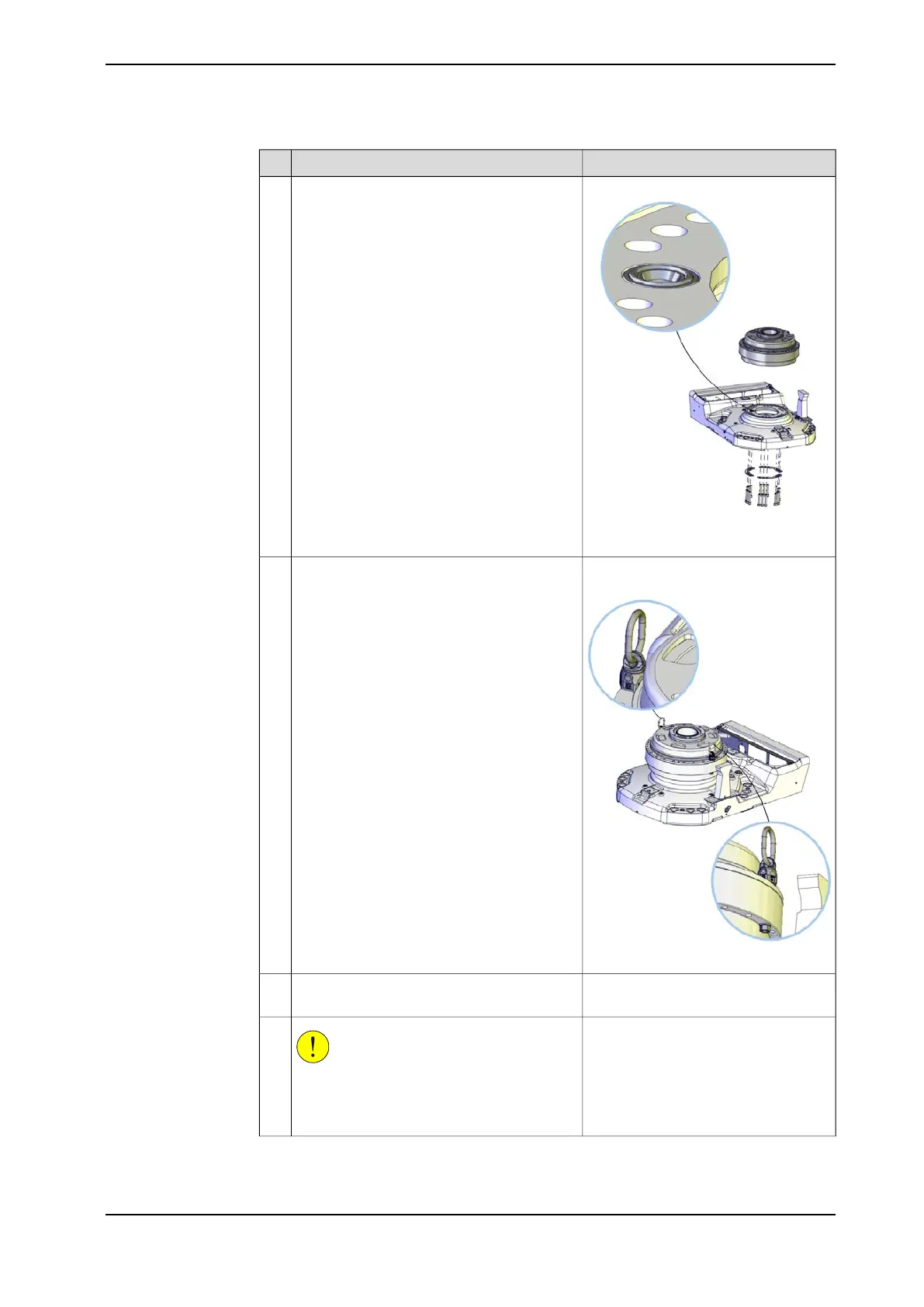

NoteAction
xx1000001392
Make sure the small o-ring around the oil hole
is fitted properly!
3
Specified in Required equipment on
page 276.
xx1000001395
Attach the lifting accessory, base and gear 1
and the lifting tool (chain) to the gearbox.
4
Specified in Required equipment on
page 276.
Fit two guide pins in two of the attachment
holes in the gearbox, parallel to each other.
5
CAUTION
The gearbox weighs .
All lifting accessories used must be sized ac-
cordingly!
6
Continues on next page
