Base plate, orienting grooves and leveling bolts

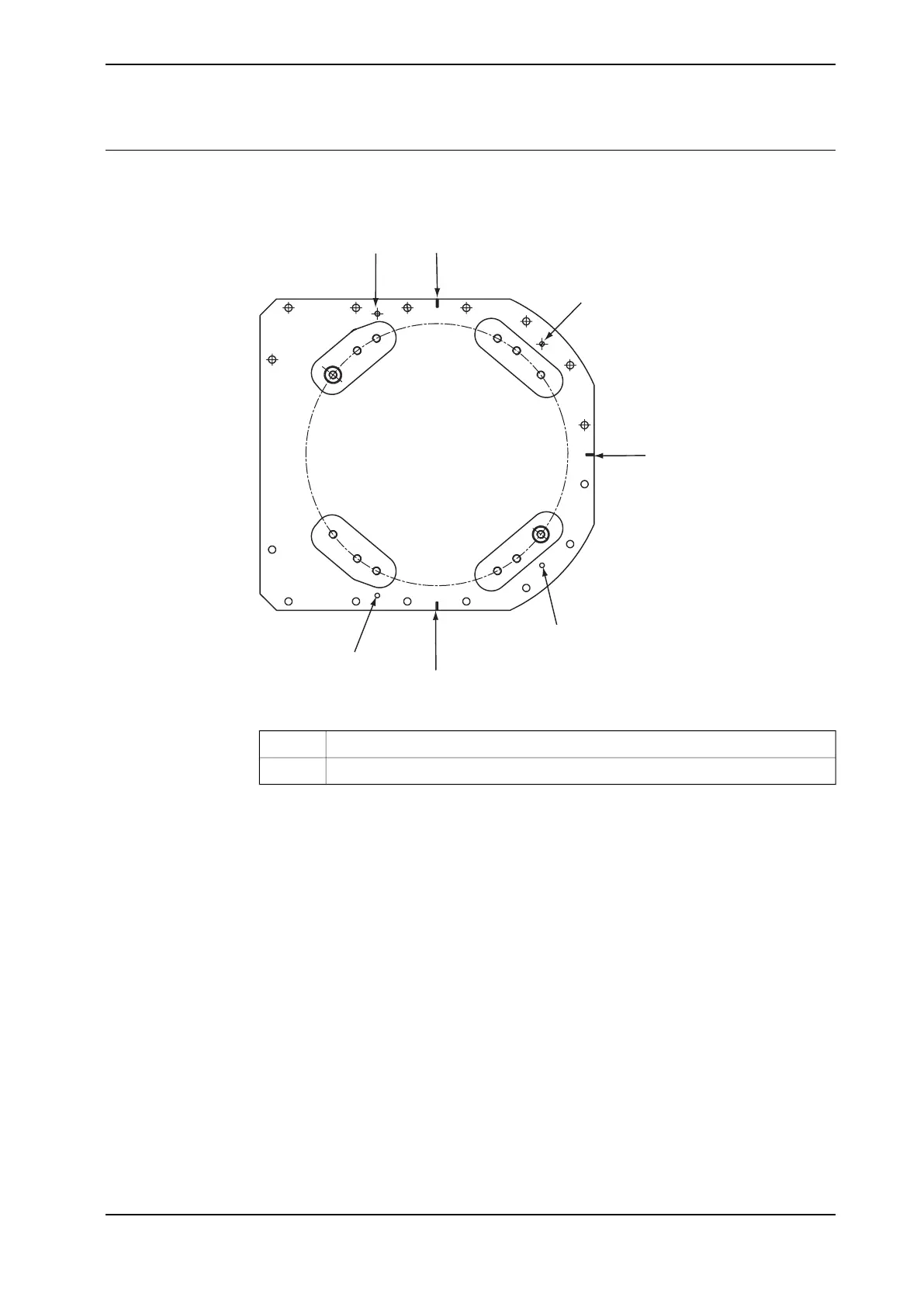

The illustration below shows the orienting grooves and attachment holes for leveling
bolts in the base plate.
A
A
A
B
B
B
B
xx1500000312
Orienting grooves (3 pcs)A
Levelling bolts, attachment holes (4 pcs)B
Continues on next page
Product manual - IRB 660 65
3HAC025755-001 Revision: W
© Copyright 2006-2020 ABB. All rights reserved.
2 Installation and commissioning
2.3.6 Securing the base plate
Continued
