Base plate, guide sleeve holes

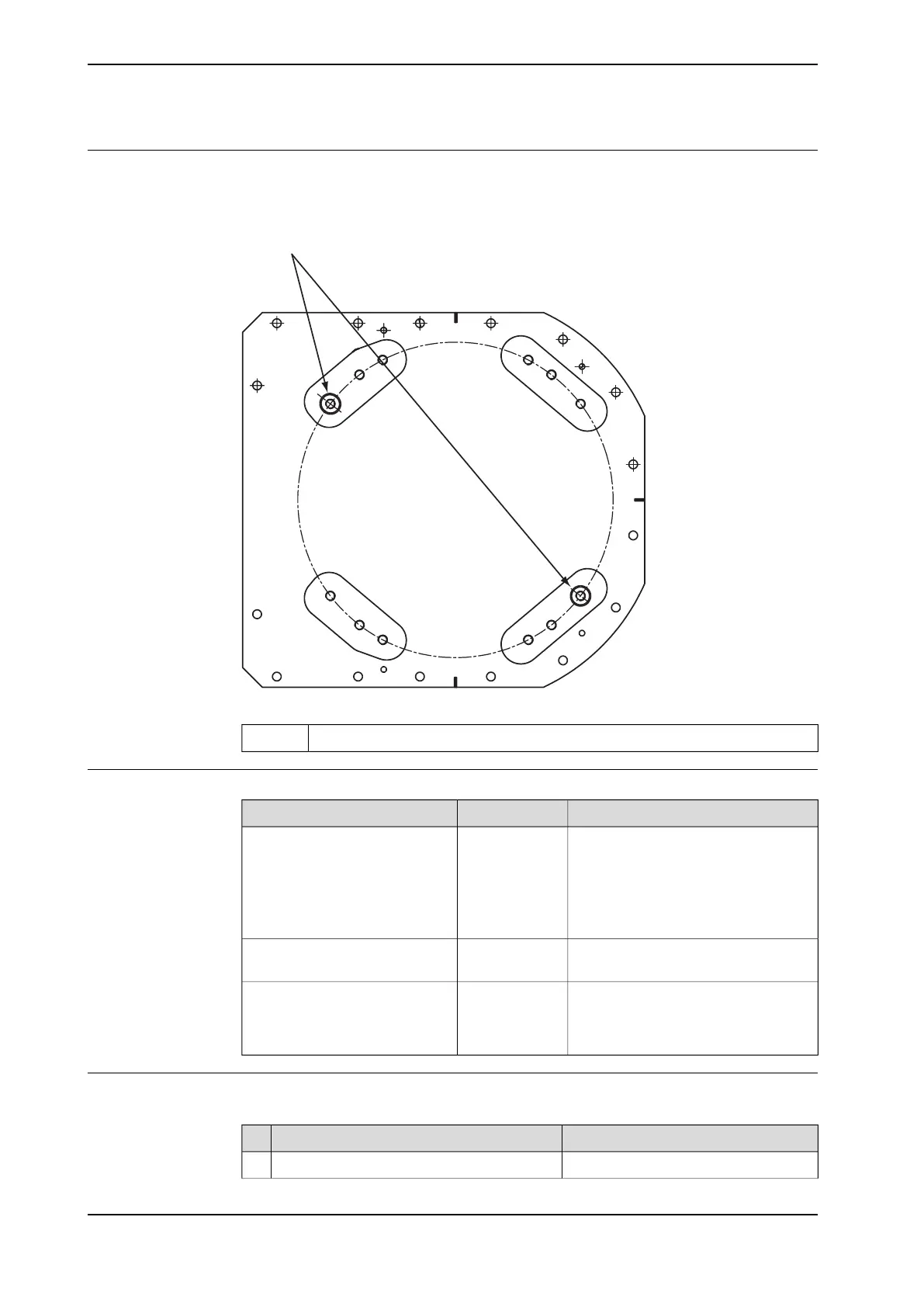

The illustration below shows the orienting grooves and guide sleeve holes in the
base plate.
xx0300000045
Guide sleeve holes (2 pcs)A
Required equipment
NoteArticle numberEquipment
Includes
• guide sleeves, 3HAC12937-3
• levelling screws, 9ADA120-79
• attachment screws and washers
for securing the robot to the
base plate.
3HAC12937-9Base plate
Content is defined in section Standard
tools on page 347.
-Standard toolkit
These procedures include references
to the tools required.
Other tools and procedures may
be required. See references to
these procedures in the step-by-
step instructions below.
Base plate
This section details how to secure the base plate to the foundation.
NoteAction
Make sure the foundation is levelled.1
Continues on next page
66 Product manual - IRB 660
3HAC025755-001 Revision: W
© Copyright 2006-2020 ABB. All rights reserved.
2 Installation and commissioning
2.3.6 Securing the base plate
Continued
