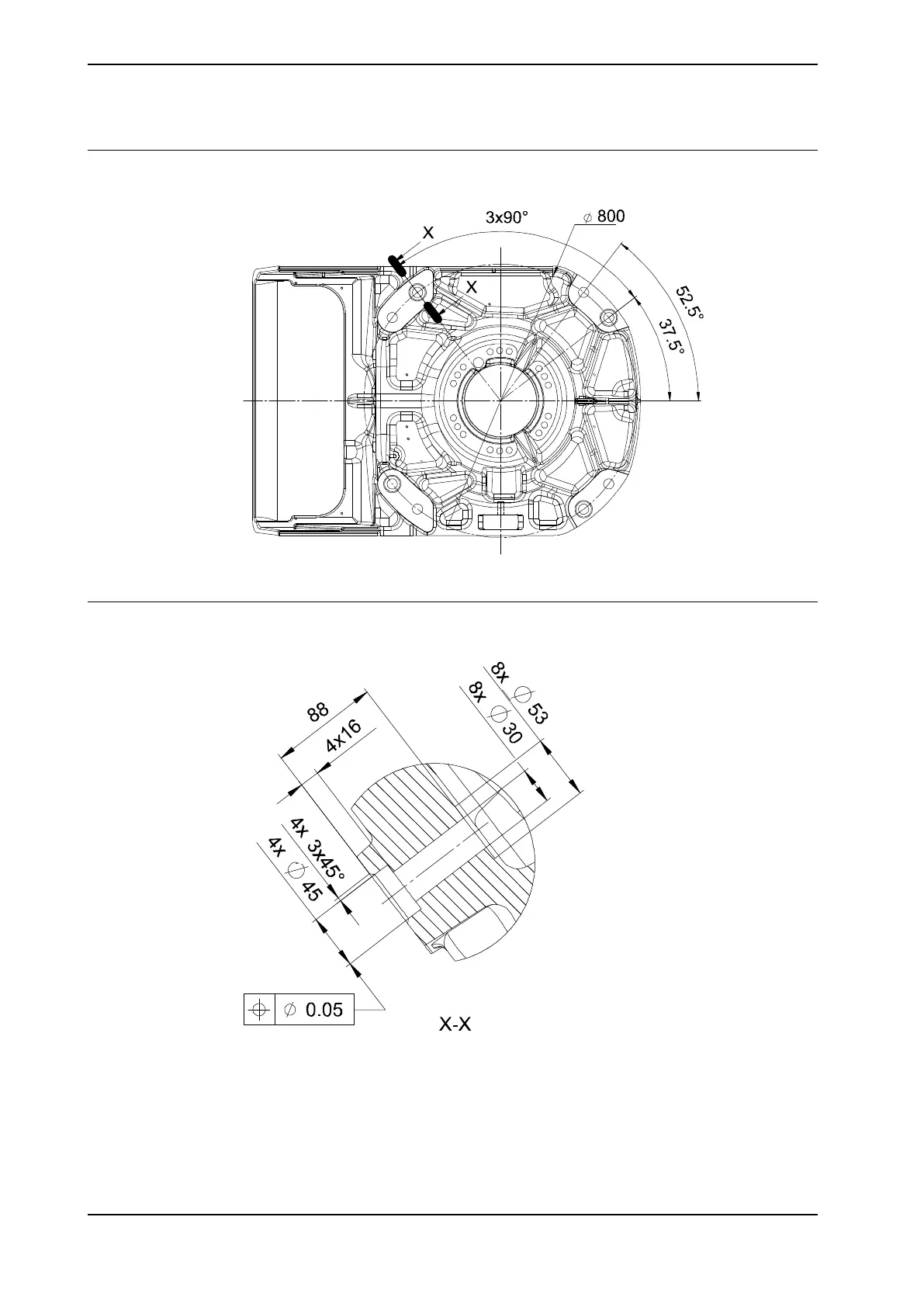

Hole configuration, base
This illustration shows the hole configuration used when securing the robot.
xx0600002628
Cross section, guide sleeve hole
This illustration shows the cross section of the guide sleeve holes.
xx0600002629
70 Product manual - IRB 660
3HAC025755-001 Revision: W
© Copyright 2006-2020 ABB. All rights reserved.
2 Installation and commissioning
2.3.7 Orienting and securing the robot
Continued
