NoteAction
xx0500002306

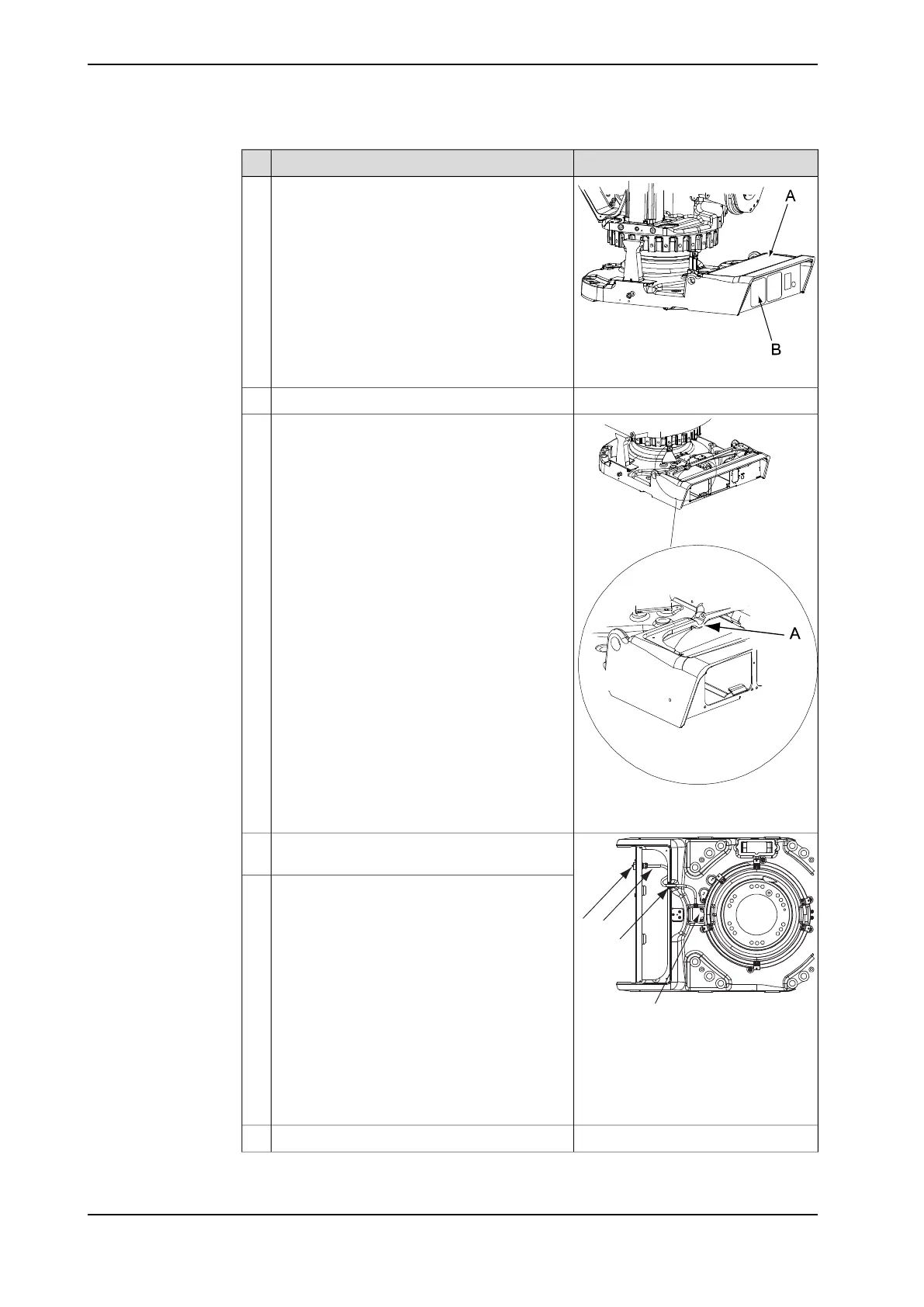

Remove the rear cover (A) from the robot base.3
Fit the position switch to the frame of the robot.4
xx0600002625
Run the cabling through the notch in the base
of the robot next to the rear cover.
5
A: Notch for pos.switch cable
A
B
C
D
xx0600002626
Connect the connector R1.SW1 to the position
switch of axis 1 (D).
6
Connect the connector R1.SW1 to the base of
the robot (B).
7
• A: Cable, pos.switch axis 1
• B: Connection point R1.SW1
• C: Notch for cable
• D: Position switch, axis 1
Refit the rear cover to the robot base.8
Continues on next page
84 Product manual - IRB 660
3HAC025755-001 Revision: W
© Copyright 2006-2020 ABB. All rights reserved.
2 Installation and commissioning
2.4.4 Installation of position switch, axis 1 (option)
Continued
