TPGAPC2
IN1
IN2
OUT1
OUT2
OR6
B1
B2
B3
B4
B5
B6
O
OR
B1
B2
O
OC_OPERATE_PULSE
EF_OPERATE_PULSEPHIPTOC1_OPERATE
INTRPTEF1_OPERATE
EFHPTOC1_OPERATE
DPHxPDOC_OPERATE
DEFxPDEF_OPERATE
EFPADM_OPERATE
ROVPTOV_OPERATE
WPWDE_OPERATE
GUID-EF44331E-734B-42A8-90D7-66A4DB74D377 V1 EN

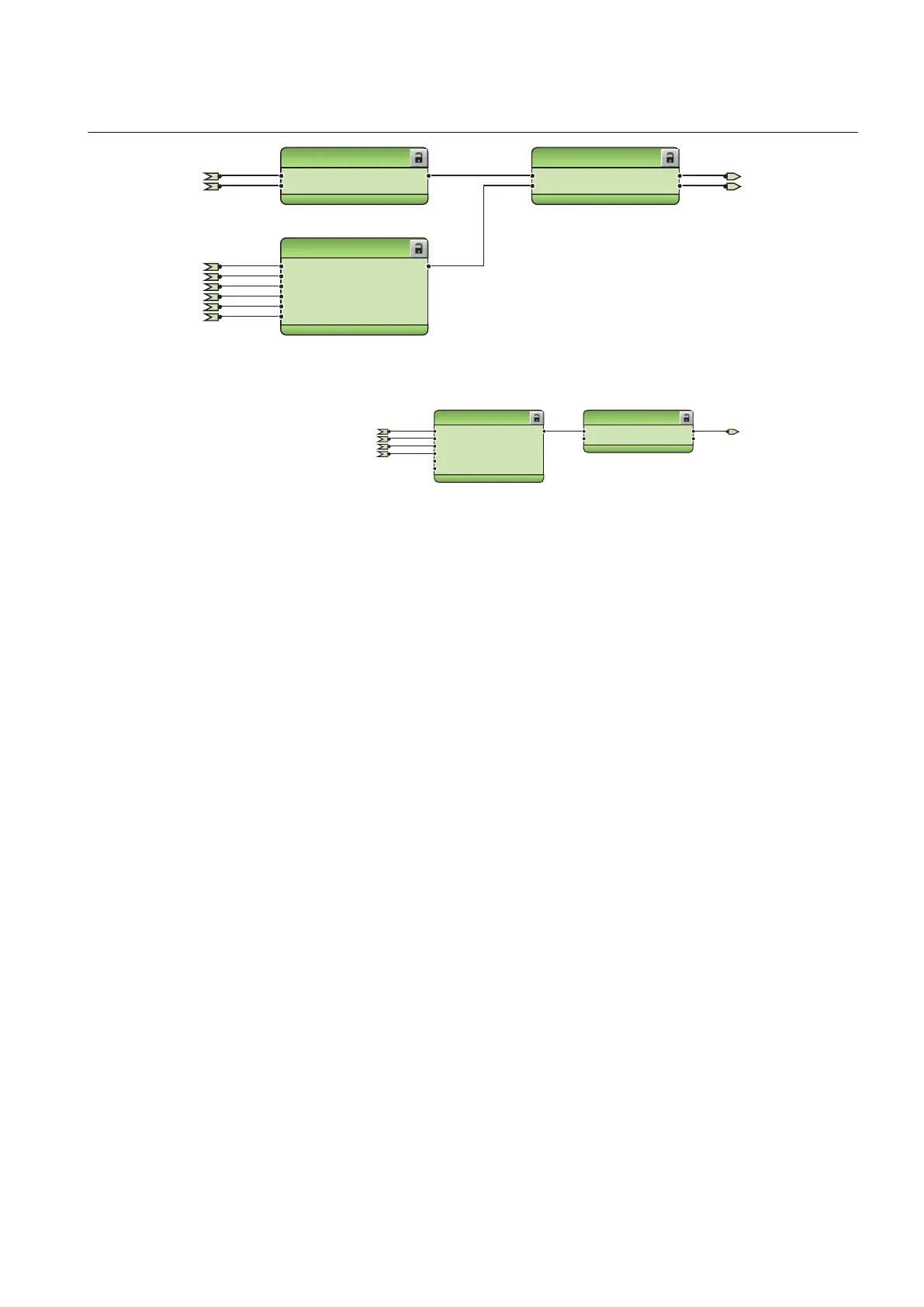

Figure 276: Timer logic for overcurrent and earth-fault operate pulse
TPGAPC3
IN1
IN2
OUT1
OUT2
OR6
B1
B2
B3
B4
B5
B6
O
VOLTAGE_OPERATE_PULSEPSPTUV1_OPERATE
NSPTOV1_OPERATE
PHPTUV_OPERATE
PHPTOV_OPERATE
GUID-740AB999-1C05-4A9D-A011-724779CB517B V1 EN
Figure 277: Timer logic for voltage operate pulse
3.8.3.8 Other functions
The configuration includes few instances of multi-purpose protection function
MAPGAPC, high impedance fault detection function PHIZ, runtime counter
MDSOPT and different types of timers and control functions. These functions are not
included in application configuration but they can be added based on the system
requirements.
3.9 Standard configuration G
3.9.1 Applications
The standard configuration includes directional overcurrent and directional earth-
fault protection, undervoltage and overvoltage protection, frequency protection and
measurement function. The configuration is mainly intended for cable and overhead-
line feeder applications in direct or resistance-earthed distributed networks. The
configuration also includes additional options for selecting earth-fault protection
based on admittance and wattmetric principles.
The IED with a standard configuration is delivered from the factory with default
settings and parameters. The end user flexibility for incoming, outgoing and internal
signal designation within the IED enables this configuration to be further adapted to
different primary circuit layouts and the related functionality needs by modifying the
internal functionality using PCM600.
1MRS756378 S Section 3
REF615 standard configurations
REF615 197
Application Manual
