3.14.3.6 Functional diagrams for I/O and alarm LEDs
OR
B1
B2
O
OR
B1
B2
O
OR
B1
B2
O
OR
B1
B2
O
OR
B1
B2
O
OR
B1
B2
O
OR
B1
B2
O
X110_BI3_GAS_PRESSURE_ALARM
X110_BI4_CB_SPRING_CHARGED
X110_BI6_CB_TRUCK_IN_TEST
X110_BI5_CB_TRUCK_IN_SERVICE
X110_BI8_ES1_OPENED
X110_BI7_ES1_CLOSED
X110_BI2_EXT_START_AUTORECLOSE
X110 (BIO).X110-Input 2
X110 (BIO-H).X110-Input 4
X110 (BIO-H).X110-Input 2
X110 (BIO-H).X110-Input 5
X110 (BIO).X110-Input 6
X110 (BIO).X110-Input 7
X110 (BIO-H).X110-Input 3
X110 (BIO-H).X110-Input 7
X110 (BIO).X110-Input 4
X110 (BIO-H).X110-Input 8
X110 (BIO-H).X110-Input 6
X110 (BIO).X110-Input 8
X110 (BIO).X110-Input 5
X110 (BIO).X110-Input 3
GUID-46F2BC2B-B863-4F13-8EFE-E10E5D695CE8 V1 EN

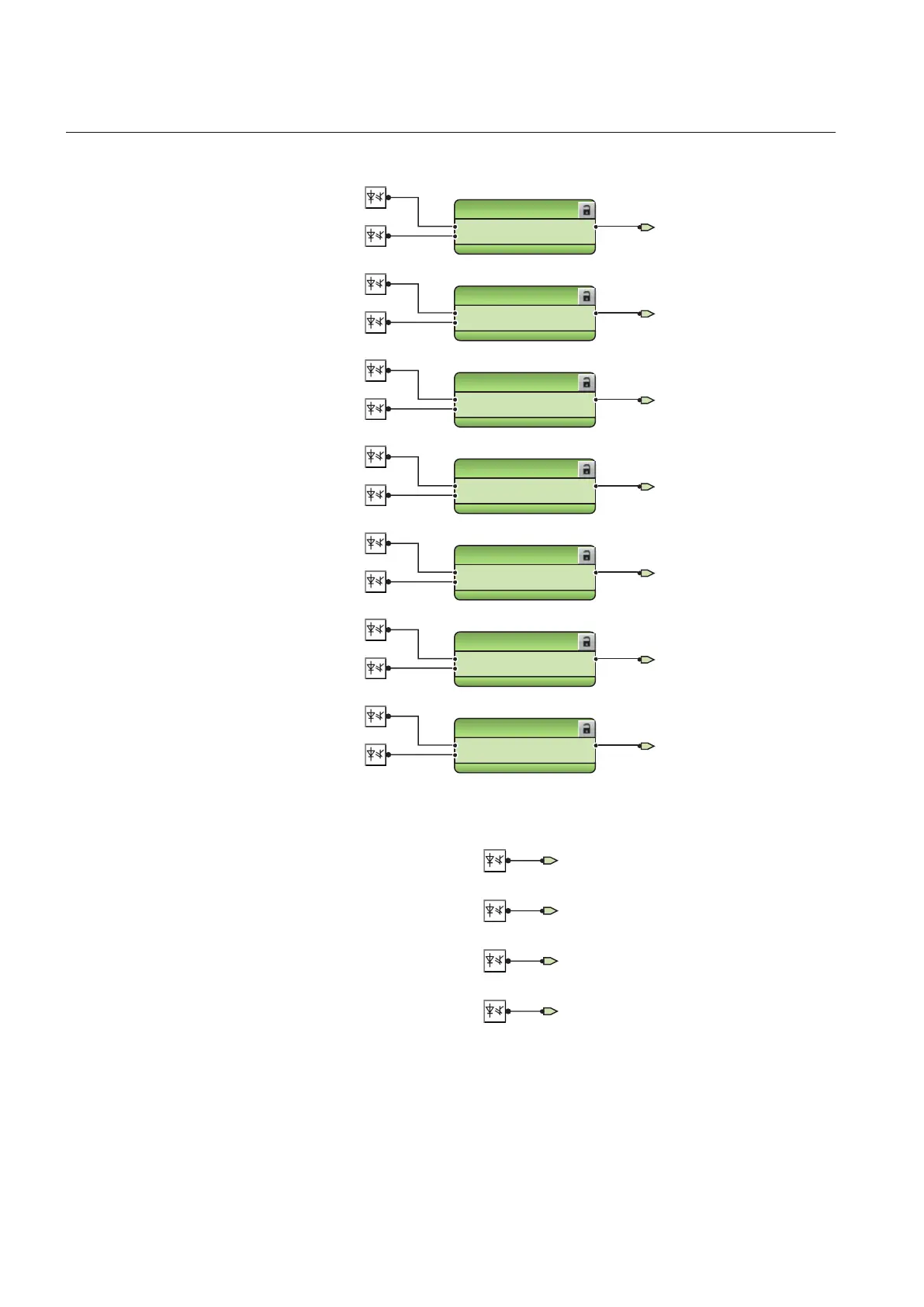

Figure 600: Binary inputs - X110 terminal block
X120_BI3_CB_OPENED
X120_BI2_CB_CLOSED
X120_BI4_RST_LOCKOUT
X120_BI1_EXT_OC_BLOCKING
X120 (AIM).X120-Input 1
X120 (AIM).X120-Input 2
X120 (AIM).X120-Input 3
X120 (AIM).X120-Input 4
GUID-56BDDBE9-A1DF-4D1B-9AD4-4501D67E40EB V1 EN
Figure 601: Binary inputs - X120 terminal block
