ESSXSWI1
POSOP EN
POSCLOSE
OPENPOS
CLOSEPOS
OKPOS
ESSXSWI1_OPENPOSX110_BI8_ES1_OPENED
X110_BI7_ES1_CLOSED
GUID-E6CDEFAC-D921-4392-A83C-D5366B8A41BA V1 EN

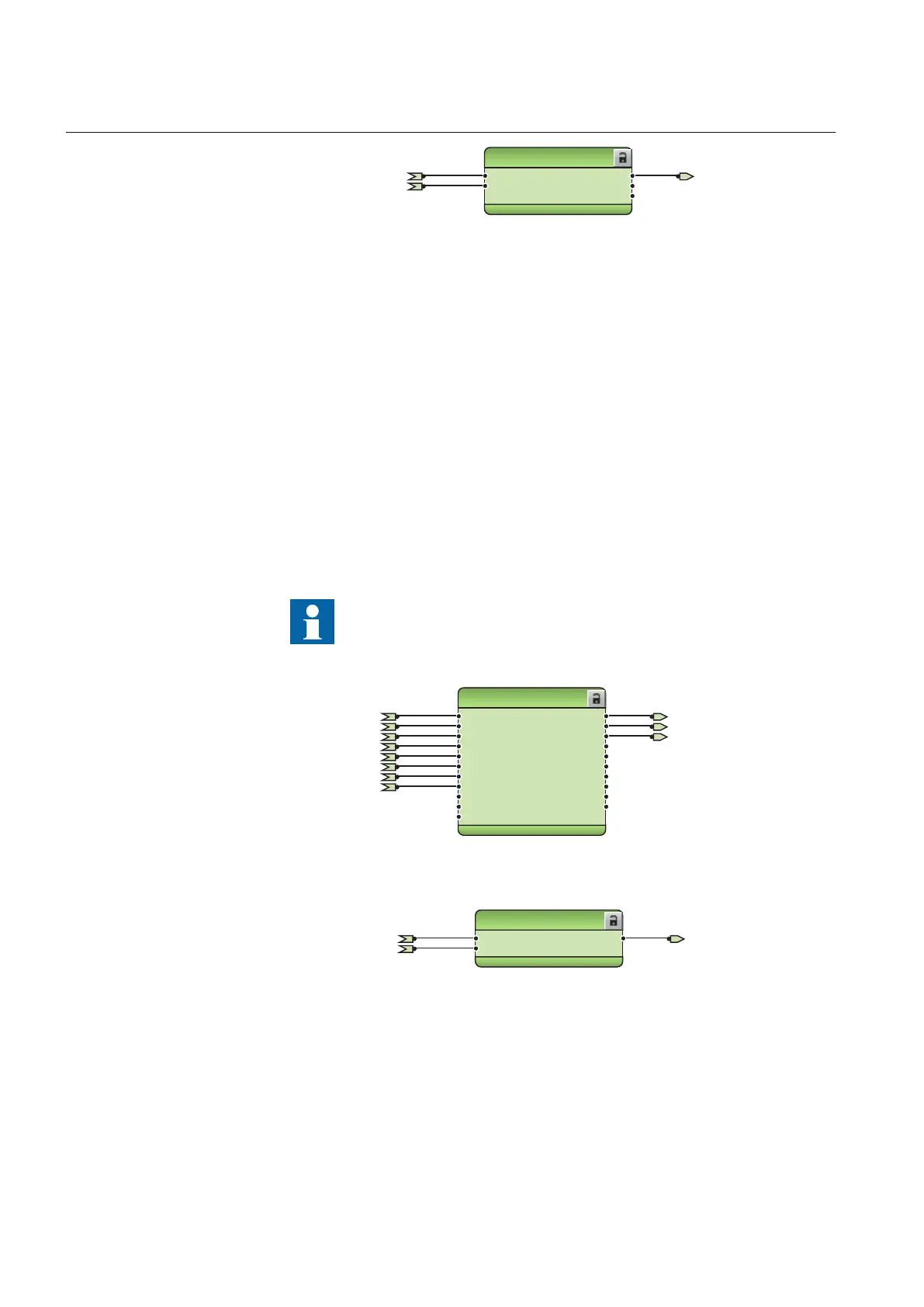

Figure 310: Earth switch control logic
The circuit breaker closing is enabled when the ENA_CLOSE input is activated. The
input can be activated using the configuration logic, which is a combination of the
disconnector or breaker truck and the earth-switch position status, status of the trip
logics, gas pressure alarm and circuit breaker spring charging status.
The OKPOS output from DCSXSWI defines whether the disconnector or breaker
truck is definitely either open (in test position) or close (in service position). This
output, together with the open earth-switch and non-active trip signals, activates the
close-enable signal to the circuit breaker control function block. The open operation
for circuit breaker is always enabled.
The SYNC_ITL_BYP input can be used, for example, to always enable the closing of
the circuit breaker when the circuit breaker truck is in the test position.
SYNC_ITL_BYP overrides, for example, active interlocking conditions when the
circuit breaker truck is closed in service position.
Connect the additional signals required for the application for closing
and opening of circuit breaker.
CBXCBR1
POSOP EN
POSCLOSE
ENA_OPEN
ENA_CLOSE
BLK_OPEN
BLK_CLOSE
AU_OPEN
AU_CLOSE
TRIP
SYNC_OK
SYNC_ITL_BYP
SELECTED
EXE_OP
EXE_CL
OP_REQ
CL_REQ
OPENPOS
CLOSEPOS
OKPOS
OPEN_ENAD
CLOSE_ENAD
TRUE
X110_BI2_CB_OPENED
X110_BI1_CB_CLOSED
CBXCBR1_ENA_CLOSE
CBXCBR1_EXE_CL
CBXCBR1_EXE_OP
CBXCBR1_BLK_CLOSE
FALSE
CBXBCR1_AU_OPEN
CBXCBR1_AU_CLOSE
CBXCBR1_SELECTED
GUID-A818BB7E-A52B-40EB-B75E-4E5980FE0188 V2 EN
Figure 311: Circuit breaker 1 control logic
OR
B1
B2
O
CB_CLOSE_COMMANDCBXCBR1_EXE_CL
DARREC1_CLOSE_CB
GUID-AAD5050A-FBE7-490E-91F5-A1B3EC9249D1 V1 EN
Figure 312: Signals for closing coil of circuit breaker 1
Section 3 1MRS756378 S
REF615 standard configurations
218 REF615
Application Manual
